ADT-CNC46XX 系列维护手册
- 90 -
12.2.5 Analog output interface (XS8)

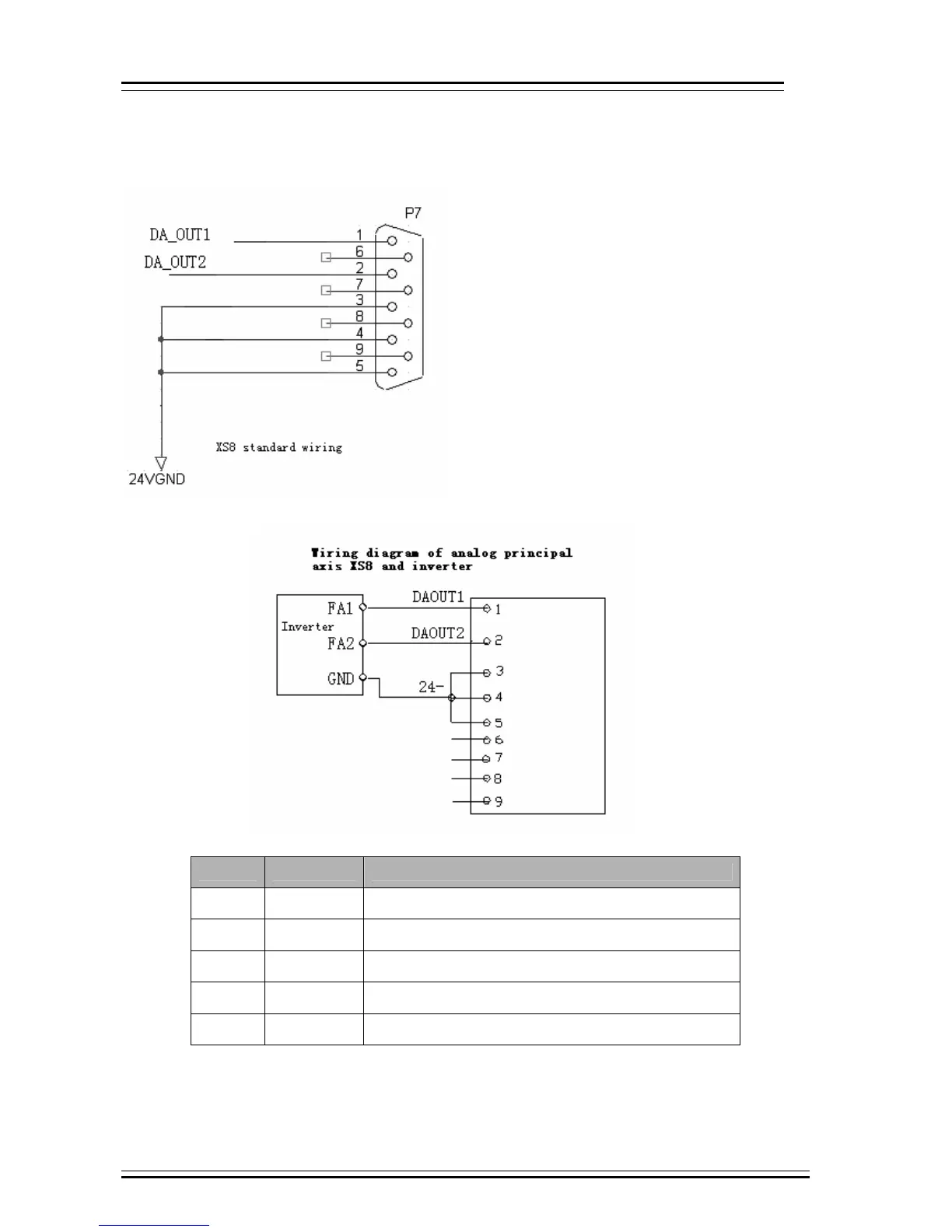

Analog output interface wiring diagram:
The wiring is also suitable for XS8 interface of 4640/4620 controller;
Wire No. Definition Function
1 DAOUT1 Analog voltage output (0~10) V
2 DAOUT2 Analog voltage output (0~10) V
3 GND Internal 24V power grounding
4 GND Internal 24V power grounding
5 GND Internal 24V power grounding
