Adtech CNC Technology Co., Ltd. 9. Main interfaces of the system
- 35 -

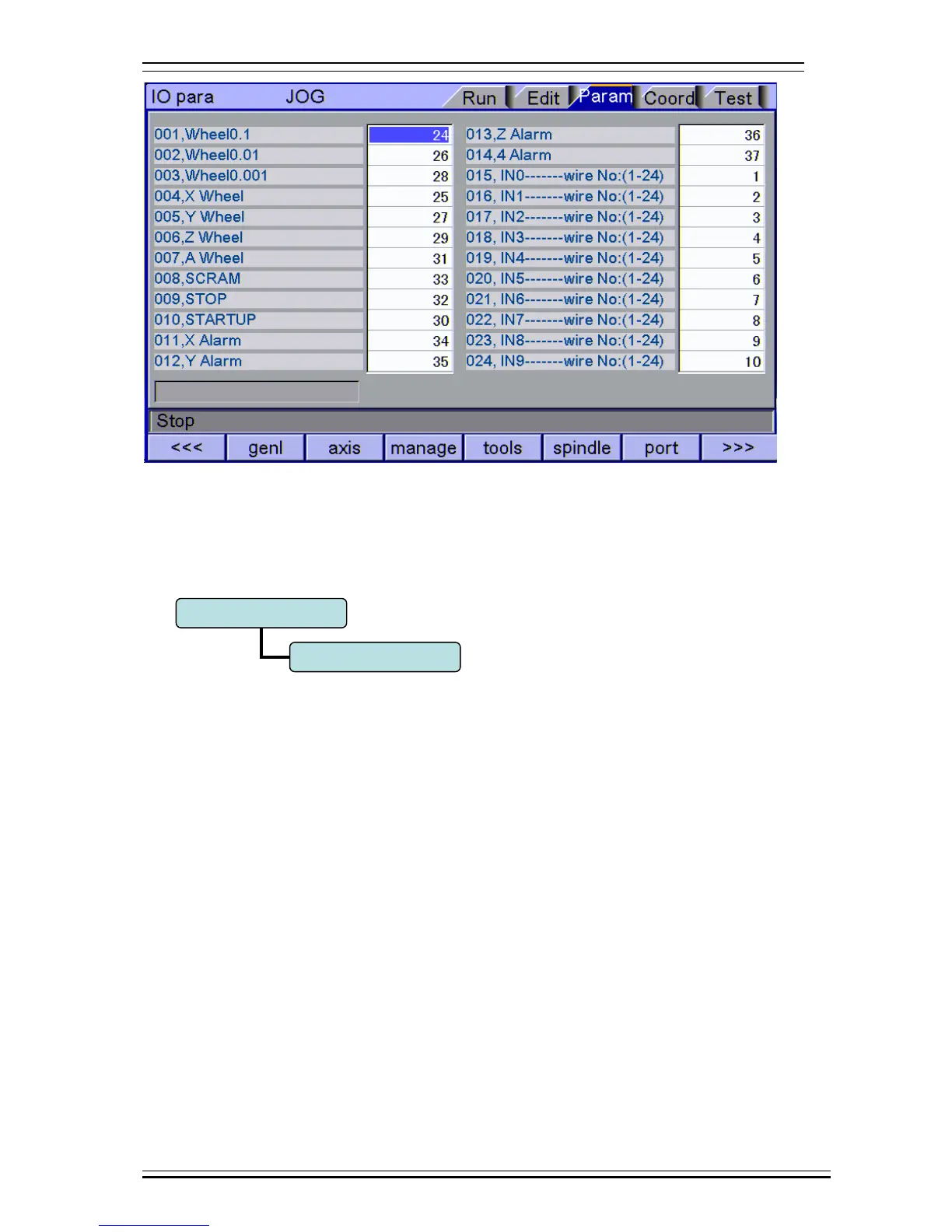

IO Configuration Parameters Interface
9.7 Compensation interface
Tool compensation interface shows tool compensation info of the system, including tool length
compensation, tool radius compensation and other input variables. The compensation method is different from
M series and L series, which will be described below.
To enter tool compensation interface:
M series tool compensation interface has two compensation variables, i.e. tool length compensation and
tool radius compensation; corresponding to G43, G44 and G41, G42; enter compensation value to
corresponding compensation number, and transfer the compensation number in NC program to realize the
compensation. Tool compensation numbers have 36 variables.
Tool compensation interface is shown below:
[Coordinates/COORD]
[Compensation]
To Next Page
