9.4 File management
In the file management interface, you can manage the system files.
To enter file management interface:
File management mainly has the following functions:
¾ Connect the UBS disk, and copy the files between USB disk and electronic disk;
¾ Upgrade system software: Copy the upgrade file to system memory in either method above to
upgrade the software;
¾ Restart the controller. In [File Management] interface, press the Reset key to restart the controller.
This method is different from restarting due to power failure. In certain occasions, you can restart the
controller quickly in this method to make certain function take effect.
¾ Connect to PC with the USB cable, and exchange the data between USB disk and PC.
File operation interface is shown below:

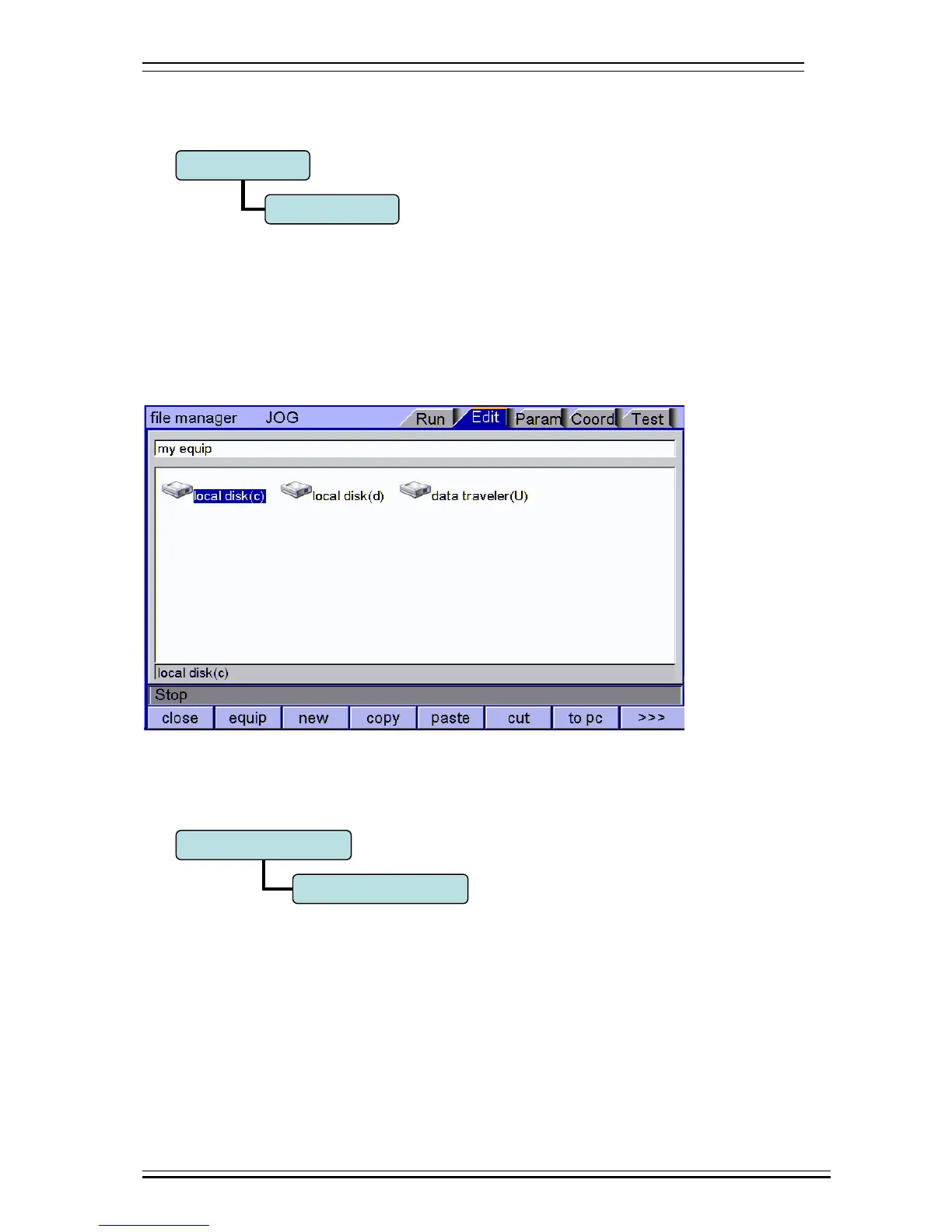

File Operation Interface
9.5 Graphic simulation
[Track] function is to simulate NC processing program.
To enter graphic simulation interface:
Enter track interface to enable real-time track display automatically. During automatic running of the
system, the motion track is displayed in real-time. In standby mode, you can also press Preview to prescan the
processing file.
The shortcuts of adjusting position:
PageUp: Zoom in
PageDown: Zoom out
→←↑↓: Shift position; the shift unit is the set pixel unit
Graphic simulation interface is shown below:
[MONITOR]
[Track]
[Edit/PROG]
[File]
To Next Page
