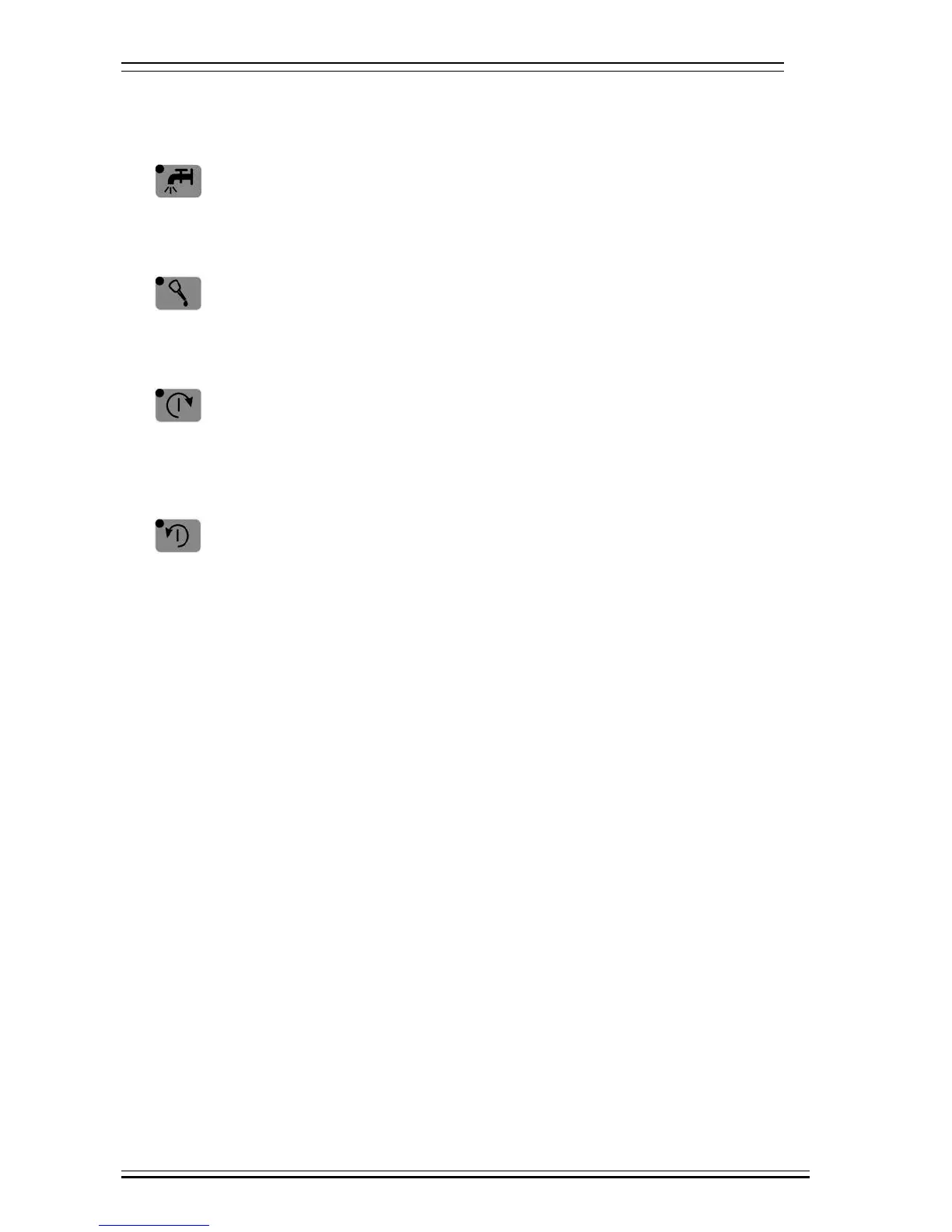

4.5 Manual auxiliary function operation
Coolant on/off
In handwheel/single step/manual mode, press this key to switch on/off the coolant.
Key indicator: No matter in what mode, the key indicator is on if only the coolant is on, or else the
indicator is off.
Lubricant on/off
In handwheel/single step/manual mode, press this key to switch on/off the lubricant.
Key indicator: No matter in what mode, the key indicator is on if only the lubricant is on, or else the
indicator is off.
Principal axis positive rotation/stop
In handwheel/single step/manual mode, press this key to rotate the principal axis positively and
press it again to stop the axis.
Key indicator: No matter in what mode, the key indicator is on if only the principal axis is positive
rotating, or else the indicator is off.
Principal axis reverse rotation/stop
In handwheel/single step/manual mode, press this key to rotate the principal axis reversely and
press it again to stop the axis.
Key indicator: No matter in what mode, the key indicator is on if only the principal axis is reverse
rotating, or else the indicator is off.
General instructions for manual operation keys
Cooling, lubricant, principal axis positive/reverse rotation are available in handwheel, single step and
manual mode;
When the principal axis is rotating, press the reverse rotation key, the principal axis will stop first, and
rotate in reverse direction after pressing it again.
When auxiliary output is on, if the system is switched to other modes, the output is unchanged; you need
to press “Reset” key to switch it off, execute the corresponding M code in automatic mode or execute the
corresponding M code in MDI interface to turn off the output;
When the principal axis is positive/reverse rotating and execute M04/M03 directly, the system first stops
positive/reverse rotating and then execute M04/M03 instruction;
Positive/reverse rotating of principal is stopped while emergency stop, and other outputs can be set
according to system parameters.
