ADTECH9 Series CNC Maintenance Manual
- 11 -
2.
Operating panel
2.1
ADTCNC96 series system LCD/keypad
Keypad

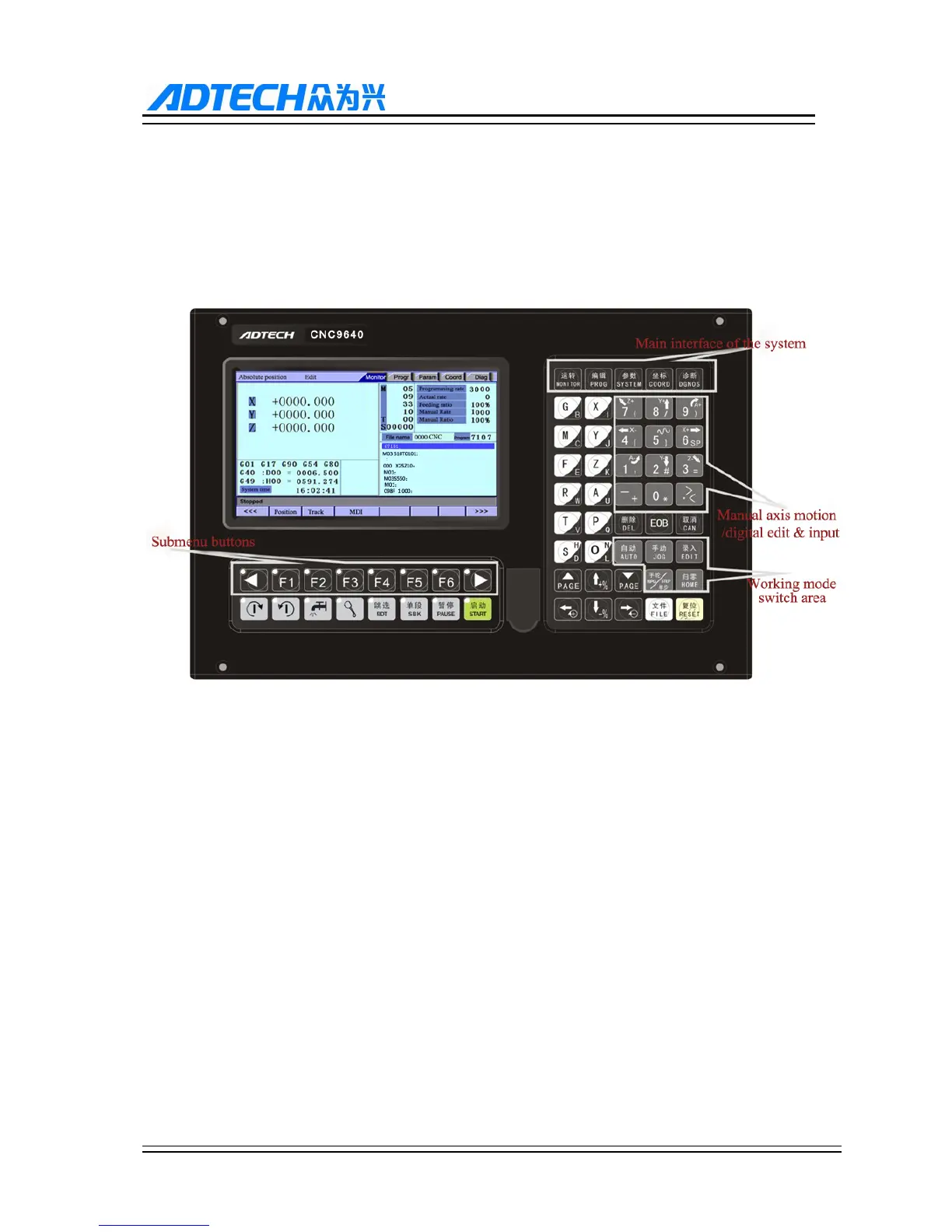

Fig. 2.1 CNC9640 Operating Panel Diagram
Note:
Press the submenu buttons to perform the operations of submenus.
Manual axis moving and edit & input are composite. It has different definitions in different modes.
System working mode switch area is used to switch working modes, which can improve the security and system
performance. Handwheel and single-step mode are switched with Repeat button.
