ADTECH9 Series CNC Maintenance Manual
- 198 -
18 IN49
Standby
input
19 IN50
Standby
input
20 IN51
Standby
input
21 IN52
Standby
input
22 IN53
Standby
input
23 IN54
Standby
input
24 IN55
Standby
input
25
INCOM5
Input common end (24v+, 12v+)

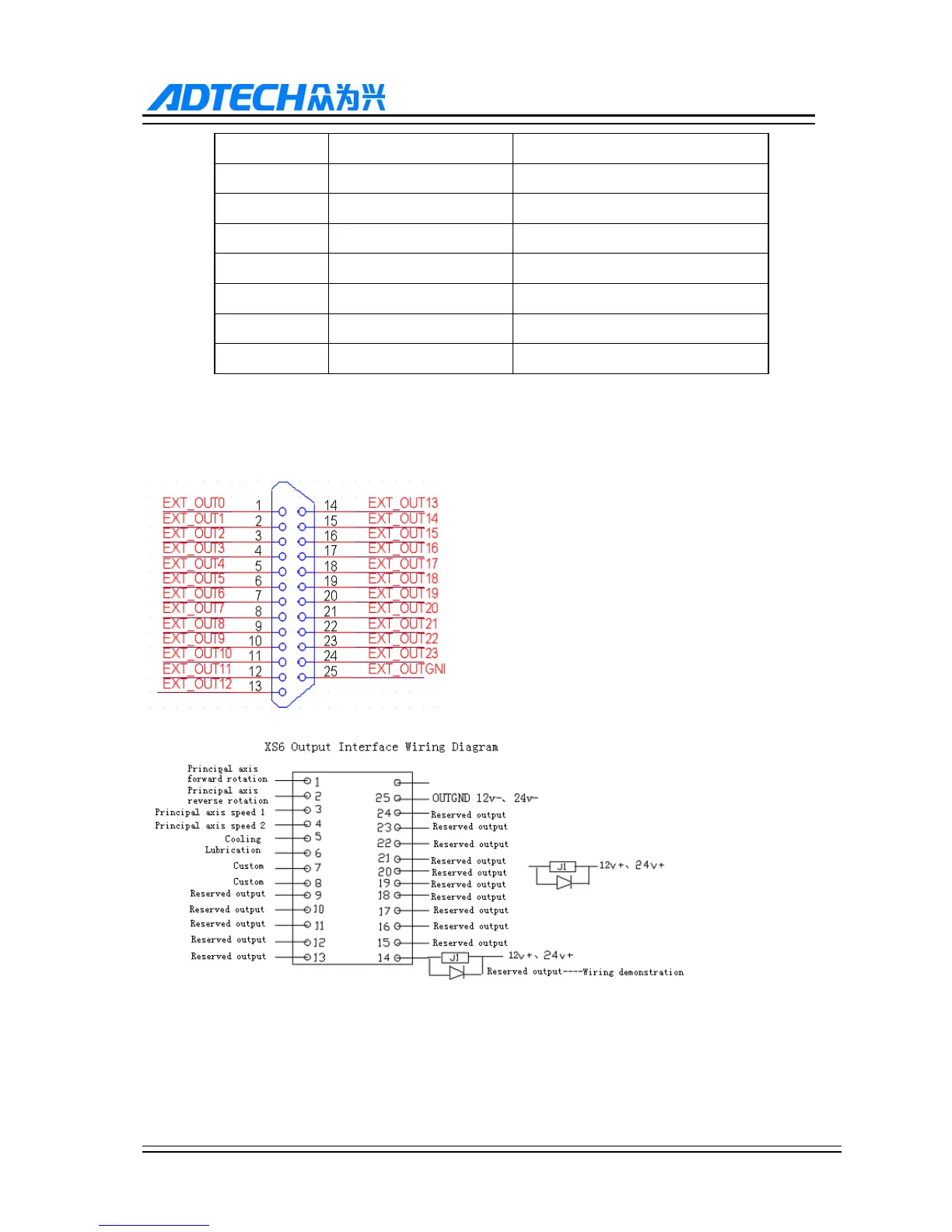

12.2.3.
Digital output interface
The wiring of digital outp
ut interface is as follows:
J1---Jn are the relays. Please connect the fly-wheel diode on each relay by
following the m
e
thod provided in
figure below
202
204
Table of Contents
Default Chapter
6
Table of Contents
6
1 System Technical Characteristics
12
System Technical Parameters
12
System Operating Condition
14
System Function
14
Self-Diagnosis Function
14
Compensation
14
Abundant Instruction System
14
Full Chinese Menu Operation & Full Screen Edit
15
Abundant Error-Correction Functions
15
Program Exchange between CNC System and PC
15
2 Operating Panel
16
ADTCNC96 Series System Lcd/Keypad
16
ADTCNC99 and 98 Series System Lcd/Keypad
18
System Menus
20
Autorun
20
Program Edit
21
Parameter
22
Work Coordinates
22
Diagnosis
23
Operating Keys
24
3 Manual Operation
26
Returning to Reference Point Manually
26
Each Axis Returns to Reference Point Separately
26
Each Axis Return to Reference Point Simultaneously
26
Reset Machine Tool Position
26
Reset Relative Position Manually
27
Continuous Feeding Manually
27
Single-Step Feeding
28
Single-Step Increment Selection
28
Handwheel Feeding
29
Tool Setting
31
Centered (M Series)
31
Tool Regulator (M Series)
33
Auto Tool Setting Mode
39
Four-Point Centering
39
Calculate the Center of the Circle Using Two Points and Radius
39
Calculate Circle Center Using 3 Points
40
Manual Operation
40
Update the Coordinate System
40
Coordinate Parameter
40
EXT Offset Coordinates
40
Tool Regulator Parameter
42
Tool Setting by Test Cutting (L Series)
43
Data Settings
43
Tool Compensation Data Settings
43
System Parameters Setting
44
System Shortcuts
44
4 Automatic Operation
46
Memory Operation
46
MDI Operation
46
USB Disk DNC
46
Speed Rate Adjustment
47
SBK Function
47
BDT Function
48
Stopping Automatic Operating
48
5 Safe Operation
49
Emergency Stop
49
Hard Limit over Travel
49
Soft Limit over Travel
49
6 Alarm and Self-Diagnosis Function
50
NC Program Execution Alarm Error
50
System Environment Alarm Content Codes
52
Alarm Processing
57
Self-Diagnosis Function
57
7 Program Saving & Editing
58
Saving the Program in the Memory
58
Keypad Input (New Program)
58
Computer Network Access/Serial Port Input
58
Copying Processing Files from USB Disk
62
Reading Programs into Work Area
62
Reading Programs from Controller into Work Area
62
Reading Programs from USB Disk into Work Area
62
Editing & Modifying Programs
63
Single-Line Copy, Paste and Delete
63
Multi-Line Copy, Paste and Delete
63
Macro Function Fast Programming
63
Deleting Files
64
Deleting Files in Memory
64
8 Main Interfaces of the System
65
Position Interface
65
Absolute Position
66
Relative Position
67
Comprehensive Coordinates
68
Deviation Position
68
Edit
69
Program Edit
70
New Program
70
Save as
70
MDI Interface
70
File Management
72
Copy
72
Paste
73
Cut
73
Connect Computer
73
Graphic Simulation
74
Parameter Interface
74
Comprehensive Parameter
76
Axis Parameters
77
Management Parameter
78
Tool Magazine Parameters
79
Spindle Parameters
79
IO Configuration Parameters
80
Compensation Interface
80
Settings of Tool Setting Parameter
83
Allowance
84
Offset
85
Screw Itch Error Compensation
85
Alarm Check
87
IO Diagnosis Interface
87
Function Test
87
System Info
88
Current Mode Instruction Info
89
9 System Maintenance
90
Restart
90
System Upgrade
90
Reset
90
Parameter Backup and Restore
90
Enter BIOS
91
10 System Parameters
92
Parameter Index List
93
Comprehensive Parameter (P1.)
93
Management Parameter (P3.)
110
Tool Magazine Parameter (P4.)
111
Spindle Parameters (P5.)
111
Port Configuration (P6.)
183
11 Hardware Interface Definition and Connection Instructions
187
And 9650 Series External Interface Diagram
188
Series External Interface Diagram
189
Installation Precautions
191
Interface Definition
193
Digital Input Interface
197
Digital Output Interface
203
Handheld Box Interface
207
Analog Output Interface (9640 Series XS8)
210
Spindle Encoder Interface (9640 Series XS12)
211
USB Memory Connection Interface (96 Series XS10)
215
Power Connection Diagram
216
Servo Driver Connection Diagram
217
Step Connection Diagram
218
IO Electrical Connection Diagram
219
ADT9163 Splitter Wiring Diagram
222
ET102A Splitter Wiring Diagram
225
ET202A Splitter Wiring Diagram
228
ADT-I24HNA Input Board
229
12 CNC9 Series Hardware Interface Instructions
232
ADT9163 Splitter Wiring Diagram
235
ET102A Splitter Wiring Diagram
237
ET202A Splitter Wiring Diagram
241
13 Transmission of Computer NC Program Network to the System
244
14 Appendix-Common Servo Wiring Diagrams
248
