ADTECH9 Series CNC Maintenance Manual
- 230 -

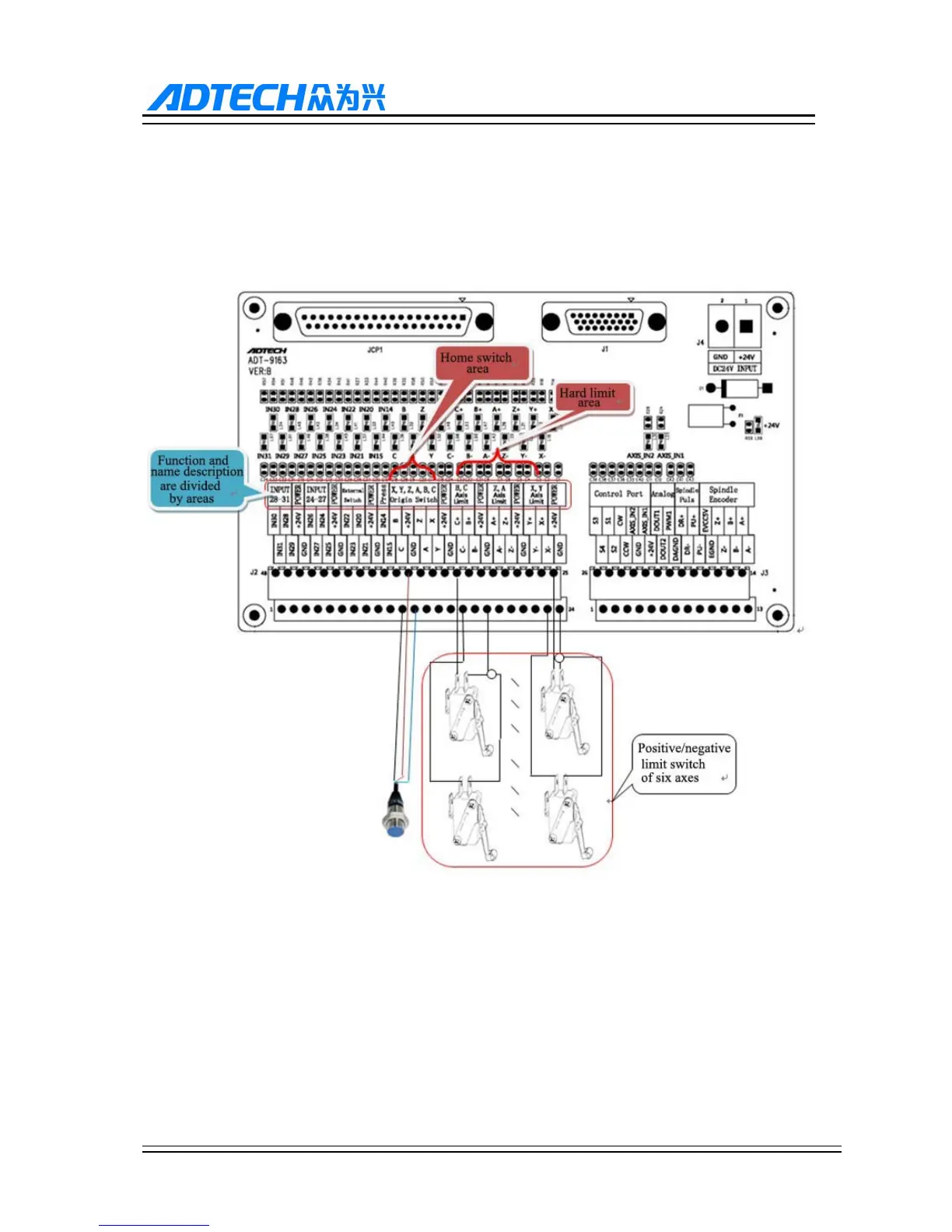

12.3. ADT9163 splitter wiring diagram
Note: The splitter terminal GND and +24V are used for power supply of external proximity sensor switch. Every
four input points share a group, and the maximum operating current of each group of power supply terminals is
200MA. The common terminal of all input points is +24V, and the status of the input point inverts when all input
terminals are connected to GND.
ADT-9163 splitter function definition (Basic input)
