Adtech CNC9650 User Manual

ADTECH9 Series CNC Maintenance Manual
- 207 -
13 5V- Negative end of internal 5V power supply can’t be
connected to external power supply
14 NC Null
15 NC Null

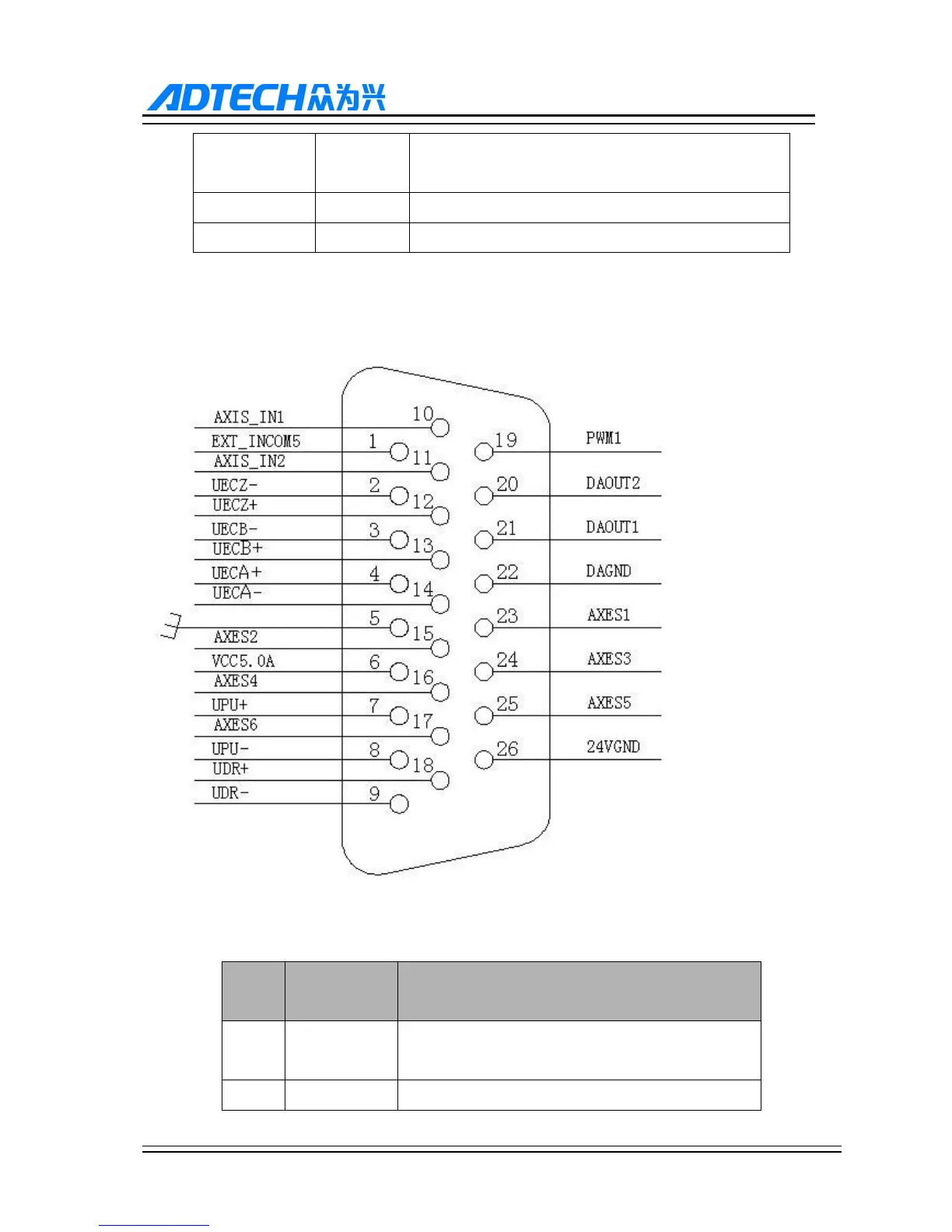

Spindle encoder interface diagram (CNC9 series CNC9960 XS10, CNC9810 XS9, CNC9650 XS9):
The spindle encoder (CNC9 series, CNC9960, CNC9810, and CNC9810 controller) definition is as follow:
Wire
No.
Definition Function
1 EXT_INCOM5 Control signal common terminal power 24V+ (external
power supply required)
2 UECZ- Spindle encoder Z- (9810 9650: IN77, 9960: IN78)

Adtech CNC9650 Specifications

General

Brand	Adtech
Model	CNC9650
Category	Control Systems
Language	English
