ADTECH9 Series CNC Maintenance Manual
- 30 -

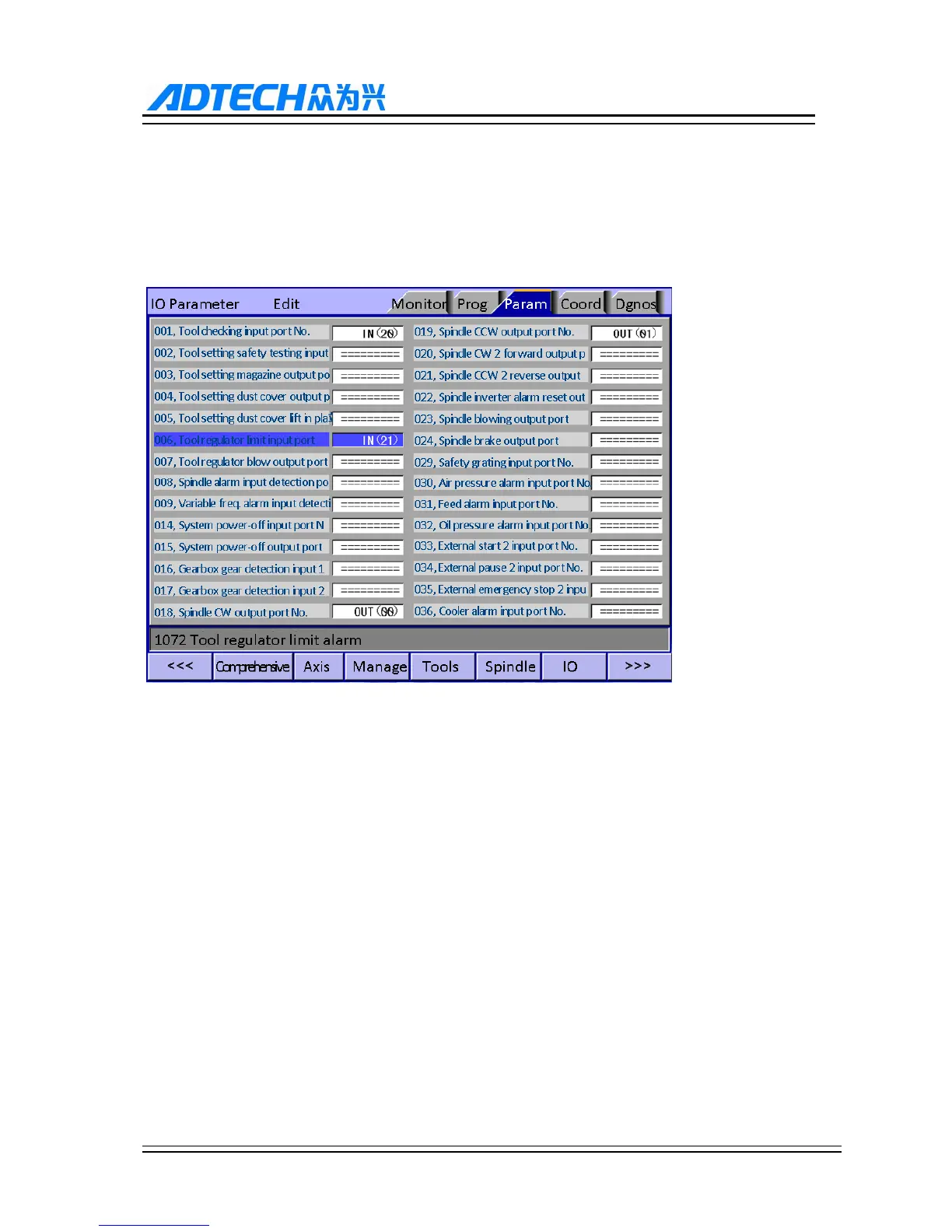

3. Configurations of tool regulator detection input port and limit input port: Parameter -> Port -> 001. Tool
regulator detection input port number -------- set the tool regulator detection signal input port, through which the
system can detect whether the tool regulator is in place when it scans tool regulator, for example, if the signal
line of the tool regulator is connected to the input number IN20, input 20 and the parameter will become IN (20).
The limit input port is also configured to IN (21) in the same way.
4. Invert the input detection active level
According to the wiring diagram of the tool regulator in the above example, the limit and the test switches of
such tool regulator are of NC type. After connecting the tool regulator properly, enter the controller input
diagnosis interface.
It can be seen that the front indicator lights of IN20 and IN21 light up, and the limit alarm prompt of tool
regulator appears.
