User Manual of TV5600-B01 Series Dispensing Control System
108

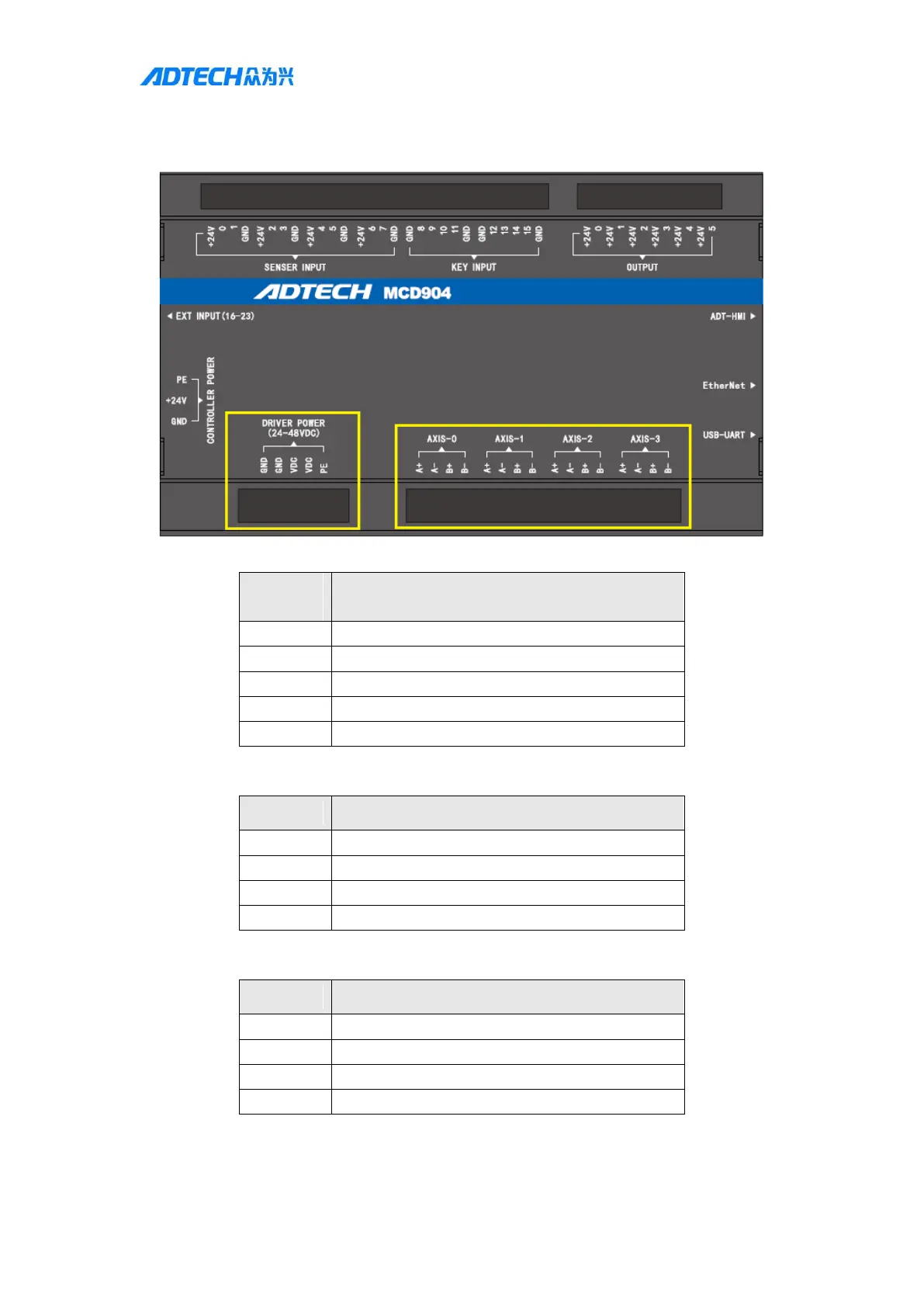

3. Stepping motor interface
3.01 Motor Interface
DRIVER
POWER
Function
GND
+ 24V power ground
GND
+ 24V power ground
VDC
+ 24V power supply
VDC
+ 24V power supply
PE
Earth
System X axis
AXIS-0
Function
A+
Stepping motor A+end
A-
Stepping motor A-end
B+
Stepping motor B+end
B-
Stepping motor B-end
System Y axis
AXIS-1
Function
A+
Stepping motor A+end
A-
Stepping motor A-end
B+
Stepping motor B+end
B-
Stepping motor B-end
System Z axis
