User Manual of TV5600-B01 Series Dispensing Control System
21
Chapter 3
Introduction to Interface
Before using the system, you must have a basic understanding of the page.
System settings: The parameters used as the system are the same for any file, such as the
parameters corresponding to the mechanical structure (motor characteristics, etc.), or some
basic system configuration (password, port configuration) and other parameters not related to
the processed product.
File parameters: For different processed products, the required processing speed (trajectory
speed) is different, the number of processing times is different, and the glue on/off time is
different, which leads to different parameters for different processed products. This type of
parameters is classified as file parameter. Therefore, the location of the parameter can be found
according to the characteristics of the parameter.

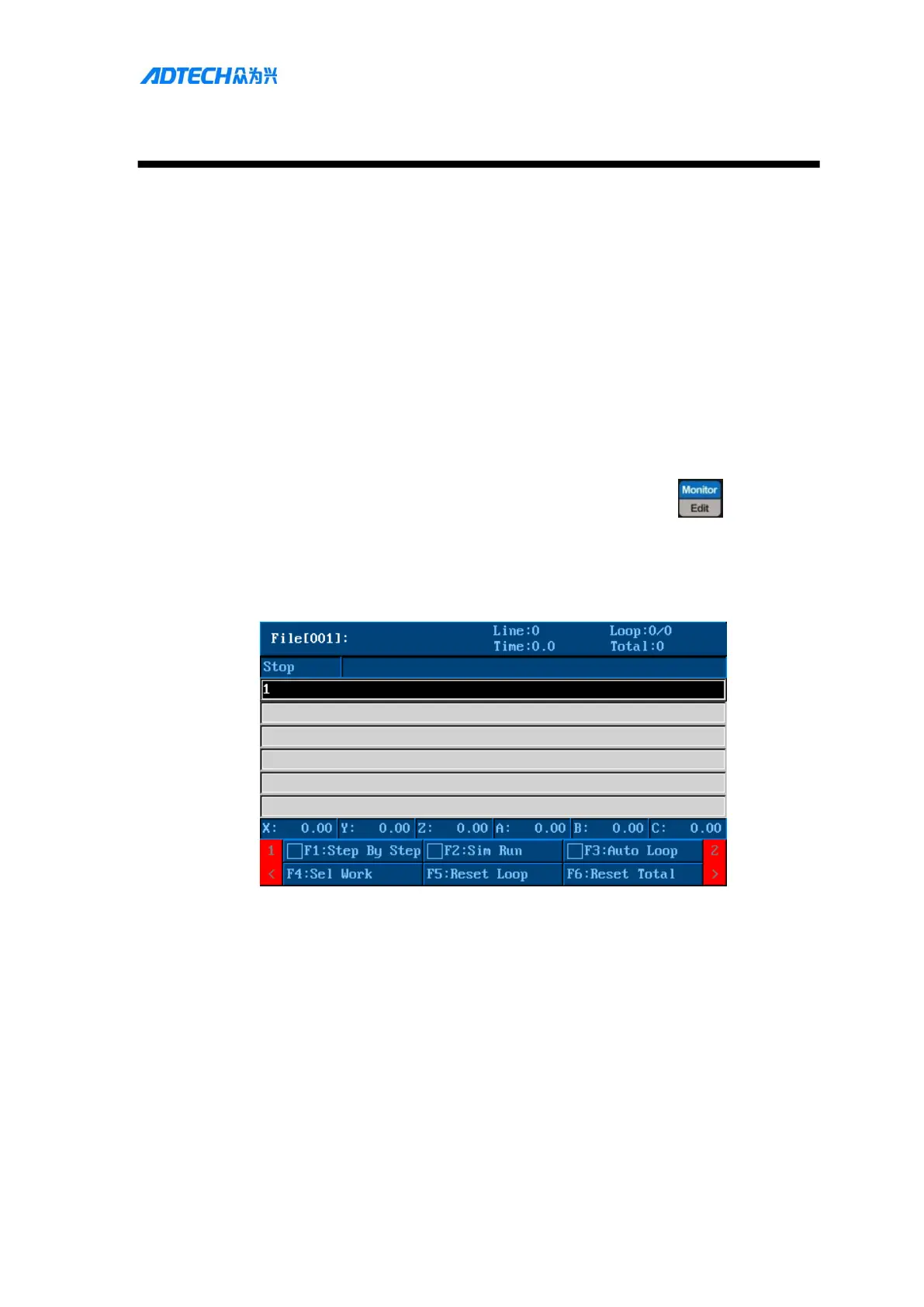

In monitoring operation, you can set the monitoring mode or edit mode. Press to switch
modes.
Monitoring mode: Only machining can be monitored, and machining points can’t be modified.
The background of the monitoring mode is gray:
Edit mode: The machining point can be edited. For safety reasons, the external signal is
invalid in this state.
The background of the editmode is white:
