User Manual of TV5600-B01 Series Dispensing Control System
37
6.03.02 Teaching dispensing path

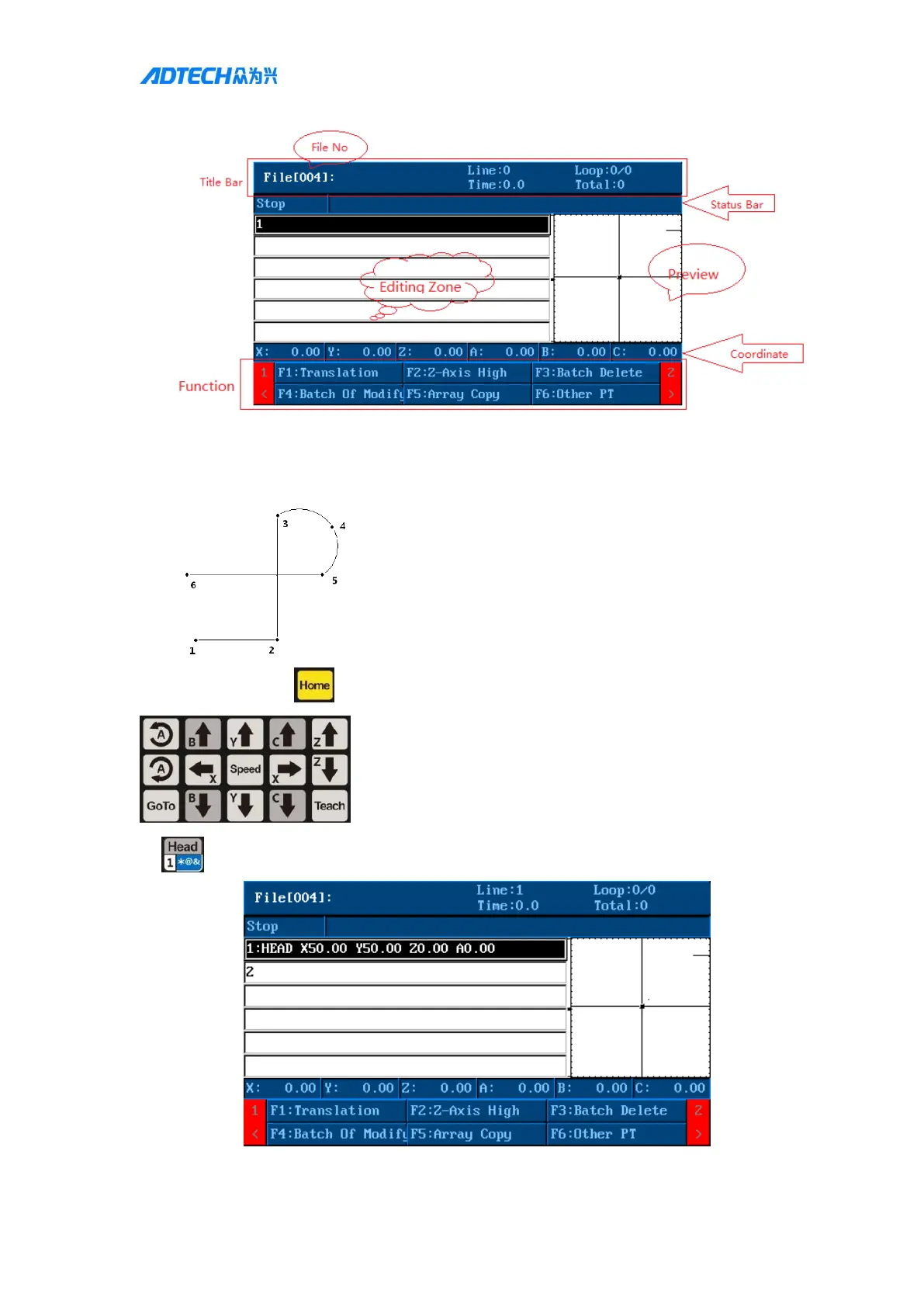

The actual machining path is as shown in the figure:
->Press Reset key to finish the resetting ->Press the motor manual key
>Press the [Start]
key ->Teach the first programming point
