User Manual of TV5600-B01 Series Dispensing Control System
117

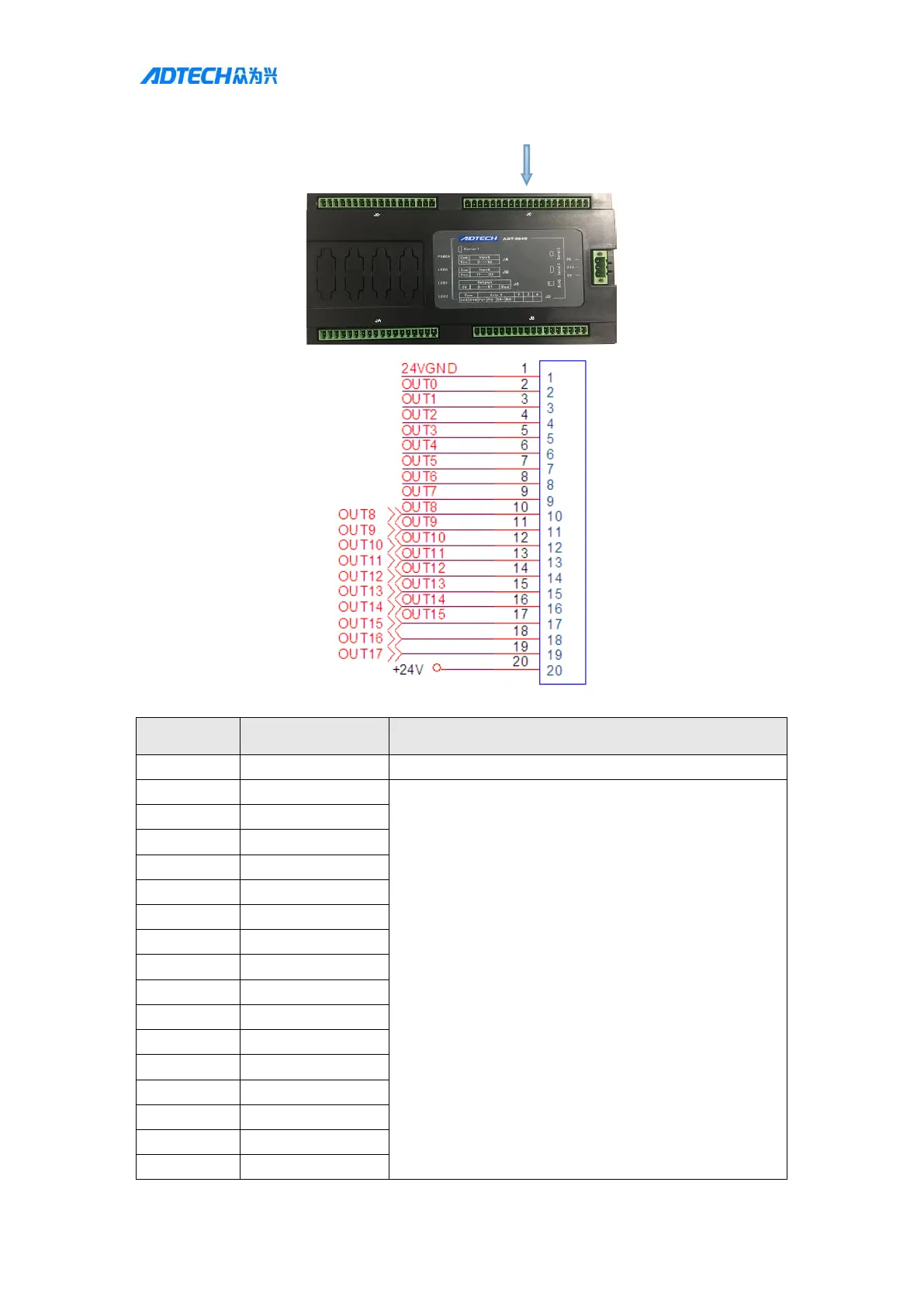

3.ADT-8849 output ports
8849 output ports
JCWire No.
Name
Function
1
24VGND
Output common, 24V ground
2
OUT0
Output0--17
3
OUT1
4
OUT2
5
OUT3
6
OUT4
7
OUT5
8
OUT6
9
OUT7
10
OUT8
11
OUT9
12
OUT10
13
OUT11
14
OUT12
15
OUT13
16
OUT14
17
OUT15
