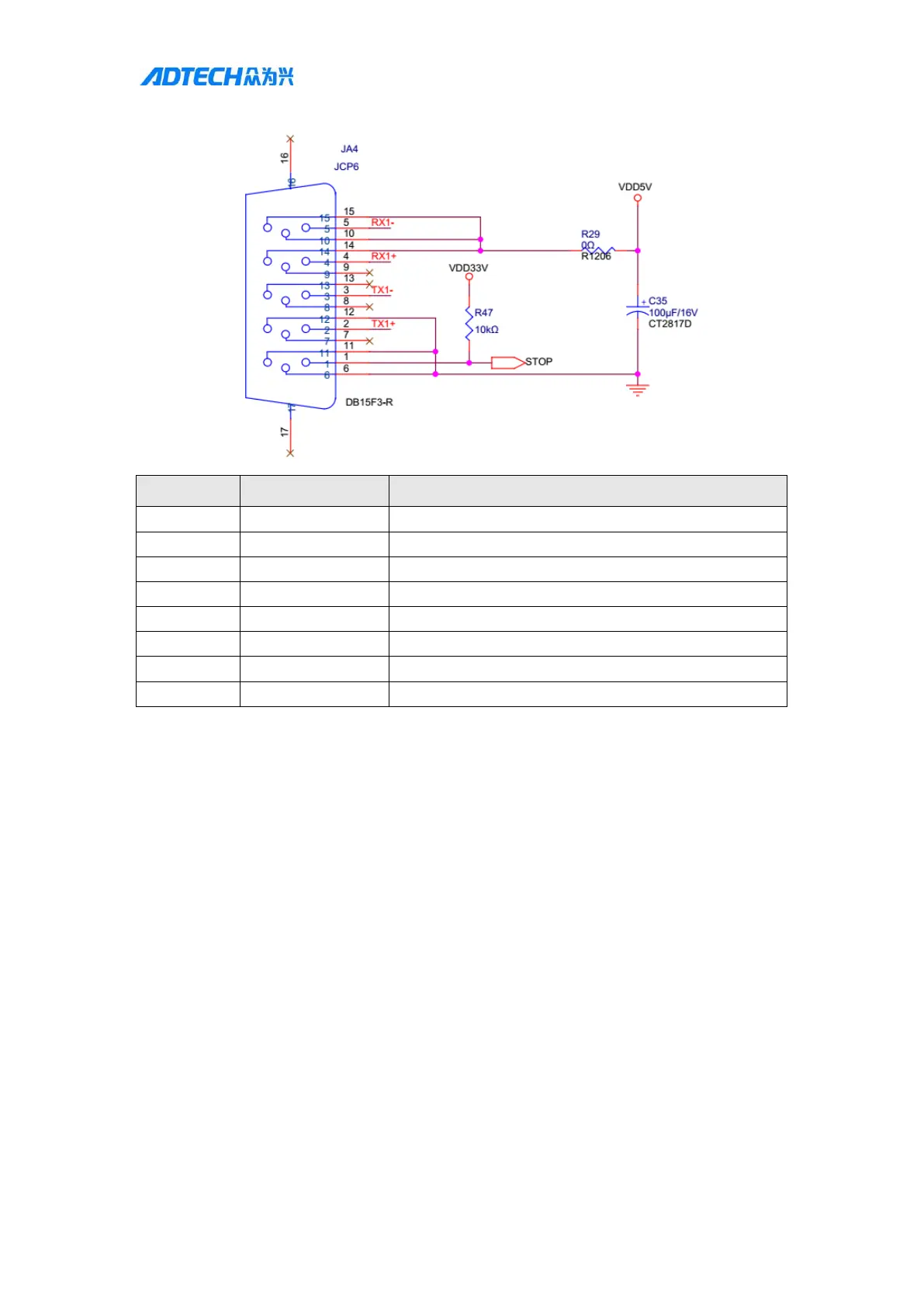

User Manual of TV5600-B01 Series Dispensing Control System

122

Wire No.

Name

Function

1

STOP

Hard emergency stop signal

2

TX1+

Data transmission +

3

TX1-

Data transmission -

4

RX1+

Data reception +

5

RX1-

Data reception -

9,13,8,7

NC

NC

11,12,6

GND

Power ground

14,15,10

VDD5V

Supply 5V power externally

8. ADT-8849wiring diagram example

Table of Contents

Default Chapter6
- Table of Contents6
Chapter 1 Basics of Dispenser9
- About the Coordinate System9
- Dispenser Coordinate System10
- Dispenser Related Terms11
Chapter 2 System Overview12
- Hardware Features13
- Software Features13
- Scripting14
- Structure Size14
- Description of Handheld Box Buttons17
- Software Version19
Chapter 3 Introduction to Interface21
Chapter 4 Function Configuration of Mechanical Structure23
- Extrusion Function Configuration23
- Dual Position Function Configuration26
- Visual Dispensing Function Configuration26
- Glue Gun Rotation, Workpiece Rotation Function Configuration28
Chapter 5 Reset Settings30
- Explanation of Reset Parameters30
- Pulse Transmission Mode Setting31
- Reset Direction Setting32
- Pulse Equivalent Setting32
- Origin and Limit Signal Test32
- Reset33
Chapter 6 Basic Teaching Methods34
- Dispensing Program Operation Mode34
- Constraints of Dispensing Path Composition34
- Example of Editing Dispensing Path36
- Correction of Motor Manual Direction41
- Advanced Editing Features41
Chapter 7 File Parameter Settings48
- Speed Related Parameters48
- Glue Open/Close Parameters49
- Drawing Related Parameters50
- File Base51
- Other File Parameters52
- Camera Parameter Settings53
Chapter 8 System Settings54
- Factory Parameters54
- Motor Speed Related Parameters63
- Standby Parameters64
  - Standby Position Setting64
  - Automatic Dispensing Related Parameters65
- Automatic Needle Aligning Setting66
- Password Management67
- Introduction to Other System Parameters68
- File Conversion69
- Custom Functions70
Chapter 9 Monitoring Operation72
Chapter 10 Common Functional Operation Guidelines74
- IF Instruction Set74
- Program Call74
- Wait Input75
- File Call76
- Automatic Needlealignment77
- Usbflash Drive Parameters, File Backup77
- Glue Gun Offset Function79
- Cycle Processing Function79
- Extended IO Function79
- Transition Arc Instruction82
- Settings of Script Custom Address Content82
- Boot Interface Logo Production84
- Wiping Function Operation84
Chapter 1186
- Common Fault Analysis86
Appendix 1: List of System Error Code Definitions87
Appendix II: List of Processing Instructions88
Appendix III: MCD904, ADT-8849 and AMC1600 Program Update Method95
Appendix IV: TV5600-B01 Handheld Box Program Update Method100
Appendix 5: Updatingremote Program Viahandheld Box USB Flash Drive101
Appendix 6: MCD904 Wiring Instructions103
Appendix VII: ADT8849 Wiring Instructions115
Appendix VIII: AMC1600P Wiring Instructions124
