User Manual of TV5600-B01 Series Dispensing Control System
127

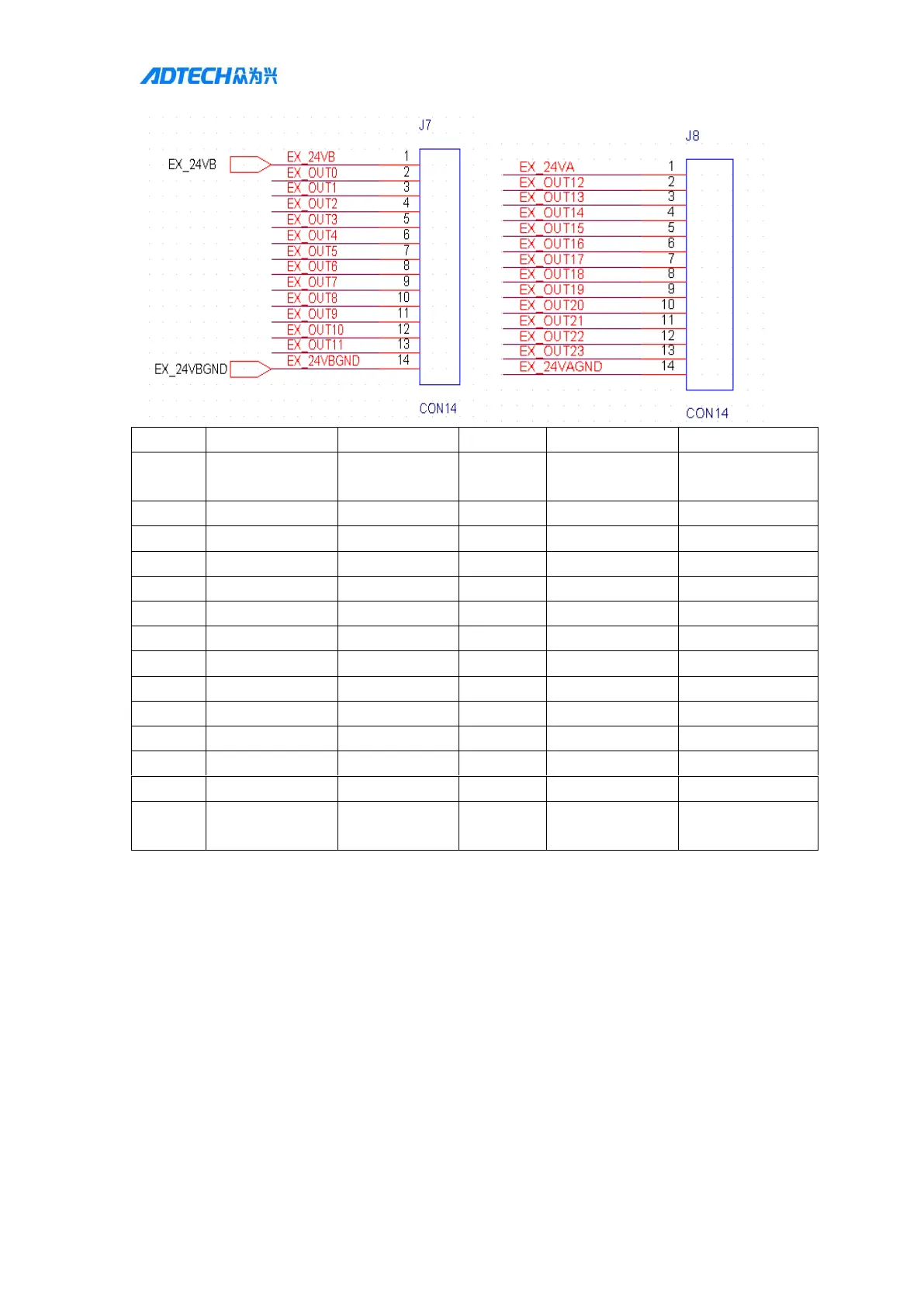

Wire No.
Name
Function
Wire No.
Name
Function
1
EX_24VB
External 24V
power input
1
EX_24VA
External 24V power
supply
2
EX_OUT0
Universal output
2
EX_OUT12
Universal output
3
EX_OUT1
3
EX_OUT13
4
EX_OUT2
4
EX_OUT14
5
EX_OUT3
5
EX_OUT15
6
EX_OUT4
6
EX_OUT16
7
EX_OUT5
7
EX_OUT17
8
EX_OUT6
8
EX_OUT18
9
EX_OUT7
9
EX_OUT19
10
EX_OUT8
10
EX_OUT20
11
EX_OUT9
11
EX_OUT21
12
EX_OUT10
12
EX_OUT22
13
EX_OUT11
13
EX_OUT23
14
EX_24VBGND
External 24V
power ground
14
EX_24VAGND
External 24V power
ground
4. Output port wiring method
The switching output of this control system is the open collector output. The common terminal is
the first pin of JC1, which is also the GND of the load power supply. When using, please connect
the pin 20 of JC1 to the +24V power supply, and the output point is low level effective.
Connect the load between +24V and the output point. The internal output circuit has relatively
complete protection measures: overcurrent protection, overvoltage protection, short circuit
protection, overheat protection, and freewheeling protection measures, but if inductive loads
such as relays are connected, connect the both ends of the relay coil to freewheeling diodes, as
shown below:
