• Step 5 – Install turntable (continued)

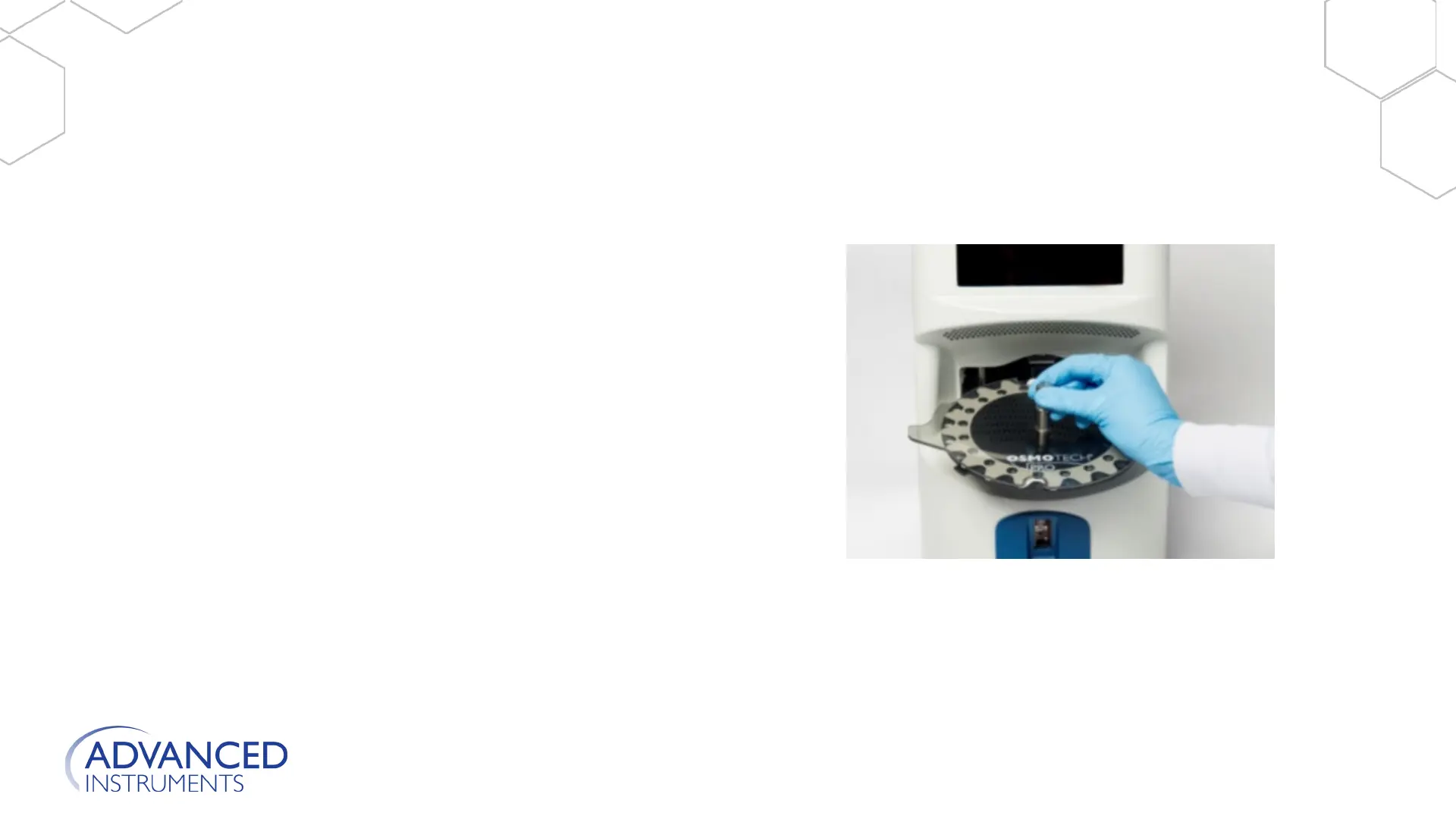

o Grasp the turntable by the center
knob and place it on the turntable
spindle so the flat side of the
evaporation cover fits into the
opening in the instrument cover.
o Slowly push the turntable forward
and twist slightly until it aligns and
drops down over the mating drive
spindle.
o Turn the knurled turntable locking
screw fully clockwise to lock the
turntable onto the drive spindle.
Installation and Setup
7
