• Step 5 – Install turntable
o Place turntable on a flat surface with the
numbered side visible.
o Place a new probe wiper ring over the center
knob of the turntable.

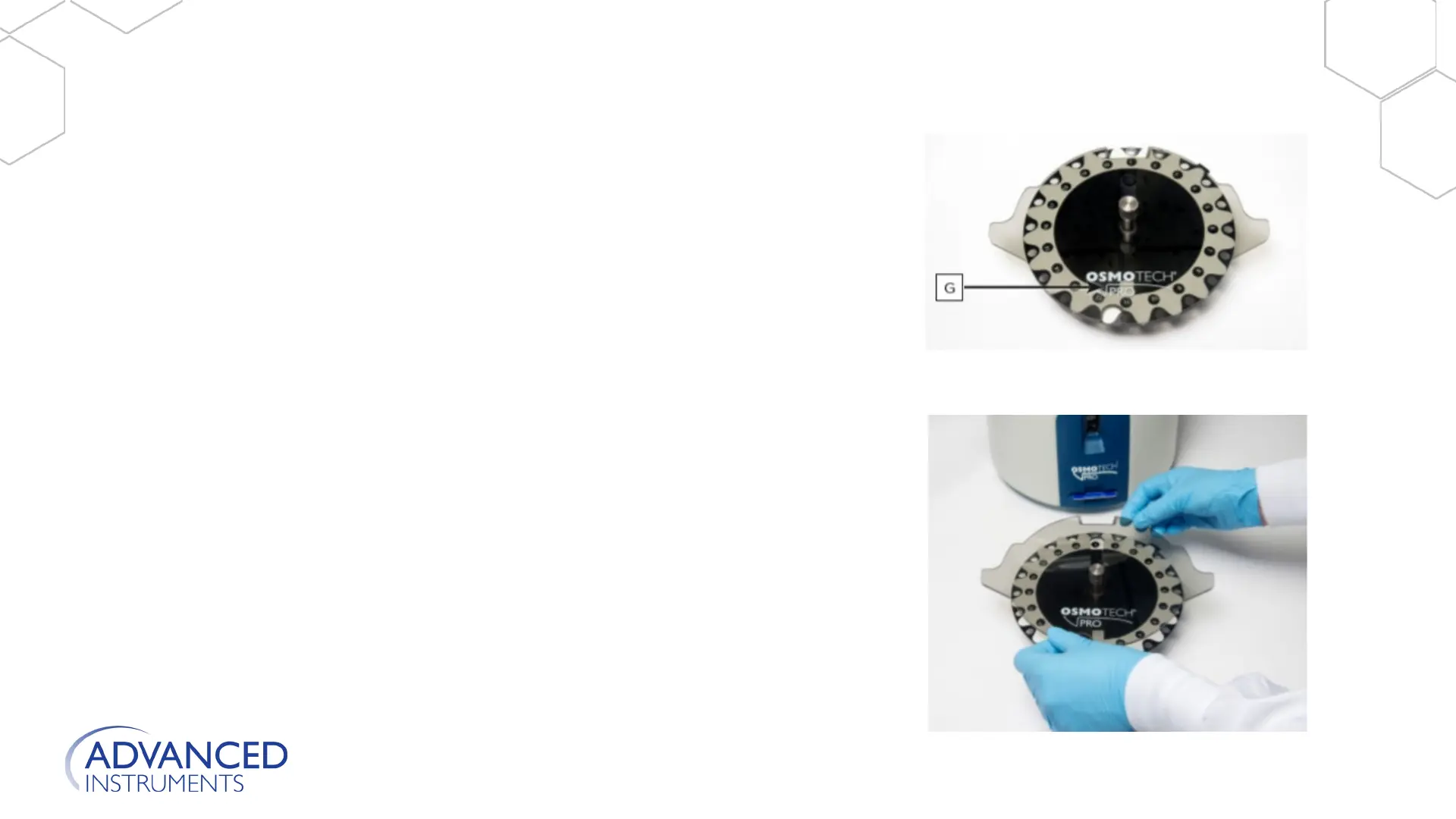

o Align the wiper ring so the wiper ring locating
tab is in one of the depressions provided at
turntable position 1 and position 11 and that
all positions are visible. (G)
o Place the evaporation cover over the center
knob of the turntable with the squared shaped
open slot centered at position 1
Installation and Setup
6
