Chapter 1 General Introduction
 Light configuration (without PCI express x16 slot):
250 (W) x 190 (D) x 53 (H) mm

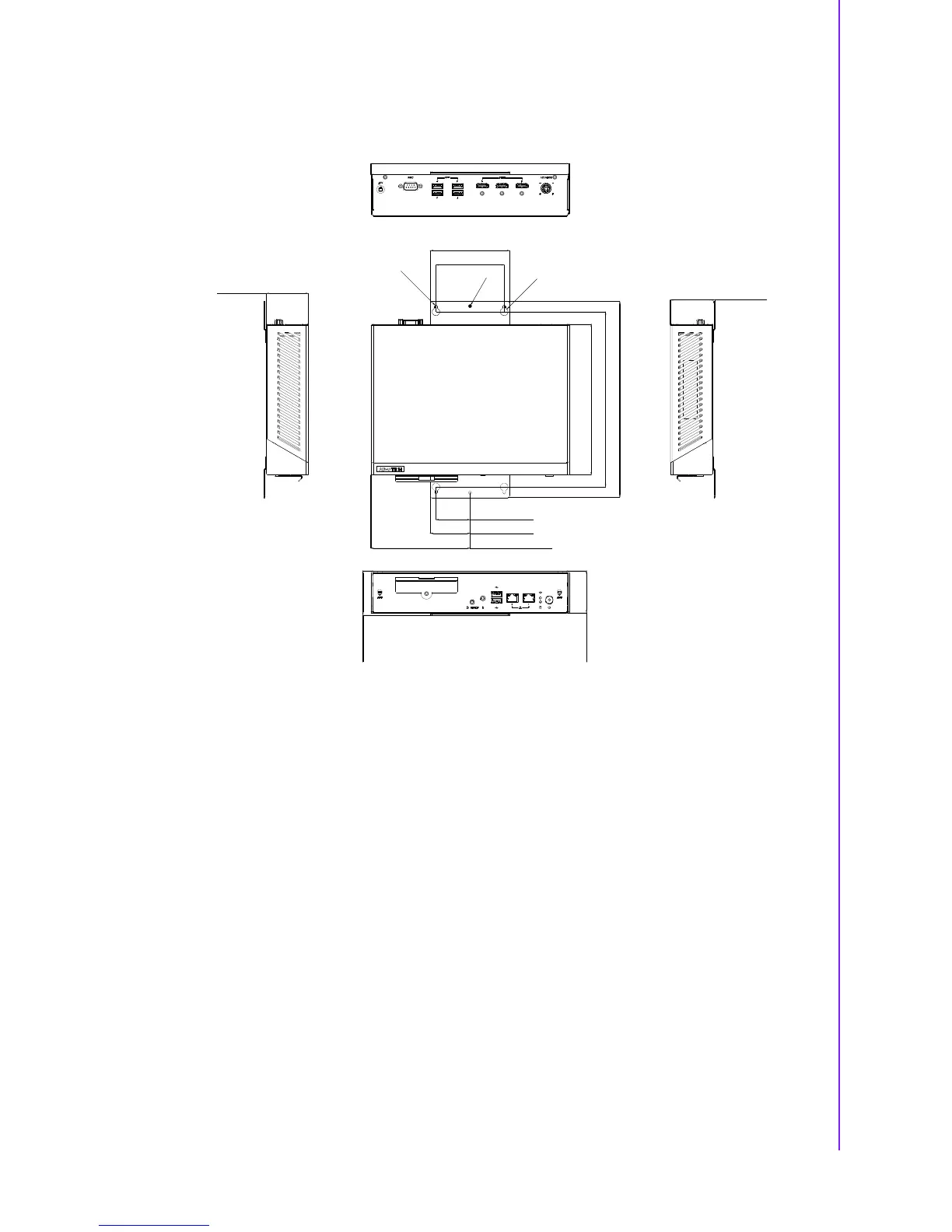

Figure 1.2 DS-980GL (Light) mechanical dimensions
1.4.2 Weight
 Expansion configuration (with PCI express x16 slot): 3.8kg
 Light configuration (without PCI express x16 slot): 3.1kg
1.5 Power Requirements
1.5.1 System Power
 Expansion configuration (with PCI express x16 slot)
– Minimum power input: 12V DC-in 12.5A (for main layer)
– Minimum power input: 12V DC-in 7A (optional for bottom layer)
 Light configuration (without PCI express x16 slot)
– Minimum power input: 12V DC-in 12.5A
1.5.2 RTC Battery
3V/ 220mA T BBBCR2032B
53 [2.09] 56 [2.20]
190 [7.48]
247.40 [9.74]
220.90 [8.70]
ø4
R1.75
R5
125.10 [4.93]
43 [1.69]
50 [1.97]
86 [3.39]
100 [3.94]
250 [9.84]
56 [2.20]
53 [2.09]
