DS-980/DS-980GL User Manual 58
Override SW EQ settings [Disabled]: Disabled/ Enabled Override SW EQ settings;
Configuration options: [Disabled][Enabled].

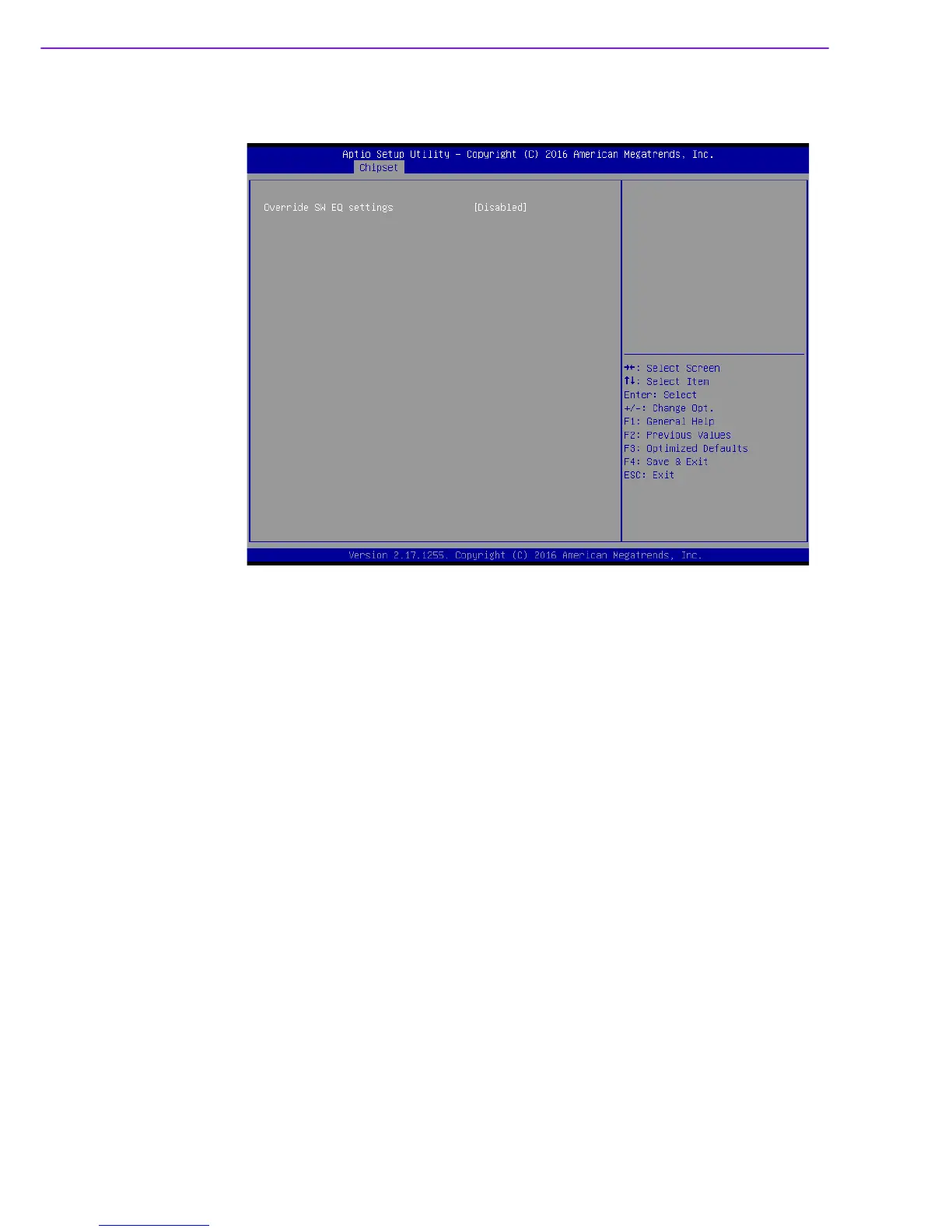

Figure 4.30 PCI express Gen3 EQ Lanes
Mini PCI Express settings, and control the PCI Express Root Port.
 Mini PCI Express [Enabled]: Enabled/ Disabled to control Mini PCI Express;
Configuration options: [Disabled][Enabled][Auto]
 ASPM Support [Auto]
 L1 Substates [L1.1 & L1.2]
 Gen3 Eq Phase3 Method [Software Search]
 UPTP [5]
 DPTP [7]
 ACS [Enabled]
– URR [Disabled]
– FER [Disabled]
– NFER [Disabled]
– CER [Disabled]
– CTO [Disabled]
– SEFE [Disabled]
– SENFE [Disabled]
– SECE [Disabled]
– PME SCI [Enabled]
– Advanced Error Reporting [Enabled]
