DS-980/DS-980GL User Manu
al
Chapter 4
BIOS Settings
Select a COM port to display redirection
of Legacy OS and Legacy OPROM Mes-
sages.

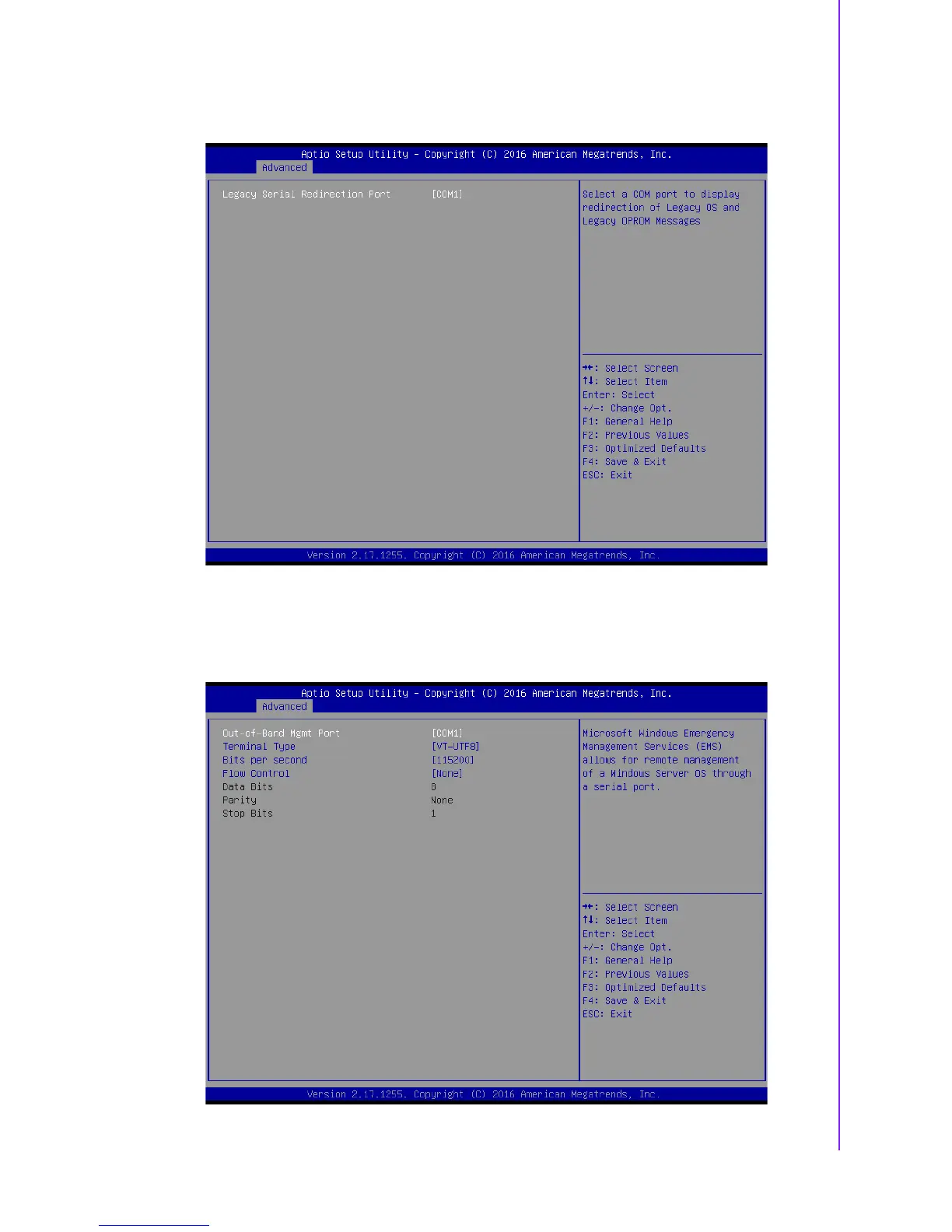

Figure 4.14 Legacy console redirection
setting
Microsoft Windows Emergency Management Serv
ices (EMS) allows for remote man-
agement of a Windows Server OS through a serial port.
Figure 4.15 Serial Port-console redirection setting
54
56
Table of Contents
Default Chapter
4
Packing List
4
Safety Instructions
6
Table of Contents
7
Chapter 1 General Introduction
11
Introduction
12
Product Features
12
General
12
Display
12
Power Consumption
12
Hardware Specifications
13
Mechanical Specifications
14
Dimensions
14
Weight
15
Power Requirements
15
System Power
15
RTC Battery
15
Figure 1.2 DS-980GL (Light) Mechanical Dimensions
15
Environment Specification
16
Chapter 2 External I/O Introduction
17
DS-980/DS-980GL Front and Rear Views
18
Figure 2.3 DS-980GL (Light) Front View
19
DS-980/DS-980GL Front External I/O Connectors
20
Power ON/OFF Button
20
Ethernet Connector (GLAN)
20
USB2.0 Connector
21
MIC-In Connector
21
SPDIF/ Line-Out Connector
21
DS-980/DS-980GL Rear External I/O Connectors
22
COM Connector
22
USB3.0 Connector
22
HDMI Connector
23
Power Input Connector
24
Chapter 3 Hardware Installation
25
Before You Begin
26
Socket Type CPU & Thermal Module Installation
27
DDR4 SO-DIMM Memory Installation
28
Inch SATA Storage Installation (Main Layer)
29
Inch SATA SSD Installation (Bottom Layer)
30
Graphic Card & Fan Duct Installation (Option)
31
Figure 3.6 Fan Duct Location (1)
32
Mini-Pcie Card/ SIM Card/ M.2 WIFI Module Installation (Options)
33
Antenna Installation (Options)
34
Mounting Brackets Installation
35
Stand Rubbers Installation
36
VESA Brackets Installation
37
How to Select Suitable Graphic Cards
38
Figure 3.14Maximum a Graphic Card Dimension (Unit: MM)
39
BIOS Settings
41
Chapter 4 BIOS Settings
41
BIOS Introduction
42
Entering Setup
43
Main Setup
43
Advanced Features Setup
44
Figure 4.3 ACPI Setup Screen
45
Figure 4.4 AMT Configuration
47
Figure 4.6 ME FW Image
48
Figure 4.7 ITE8528E Super IO Configuration
49
Figure 4.8 ITE8528E HW Monitor
51
Figure 4.10S5 RTC Wake Setting
52
Figure 4.12Serial Port Console Redirection
53
Figure 4.13COM1 - Console Redirection Setting
54
Figure 4.14Legacy Console Redirection Setting
55
Figure 4.16CPU Configuration (1)
56
Figure 4.17CPU Configuration (2)
57
Figure 4.18Intel TXT Information
58
Figure 4.19SATA Configuration
59
Figure 4.20Network Stack Configuration – Disabled
60
Figure 4.22CSM Configuration
61
Figure 4.23USB Configuration
62
Chipset
63
System Agent
64
Figure 4.26Graphic Configuration
65
Figure 4.28PCH-IO Configuration
66
Figure 4.29PCI Express Configuration
67
Figure 4.30PCI Express Gen3 EQ Lanes
68
Figure 4.31Mini PCI Express/ M.2 (1)
69
Figure 4.32Mini PCI Express/ M.2 (2)
70
Figure 4.34HD Audio Configuration
71
Security
72
Boot
73
Save & Exit
74
4
