Advantech DS-980 User Manual

11 DS-980/DS-980GL User Manual
Chapter 2 External I
/
O introduction

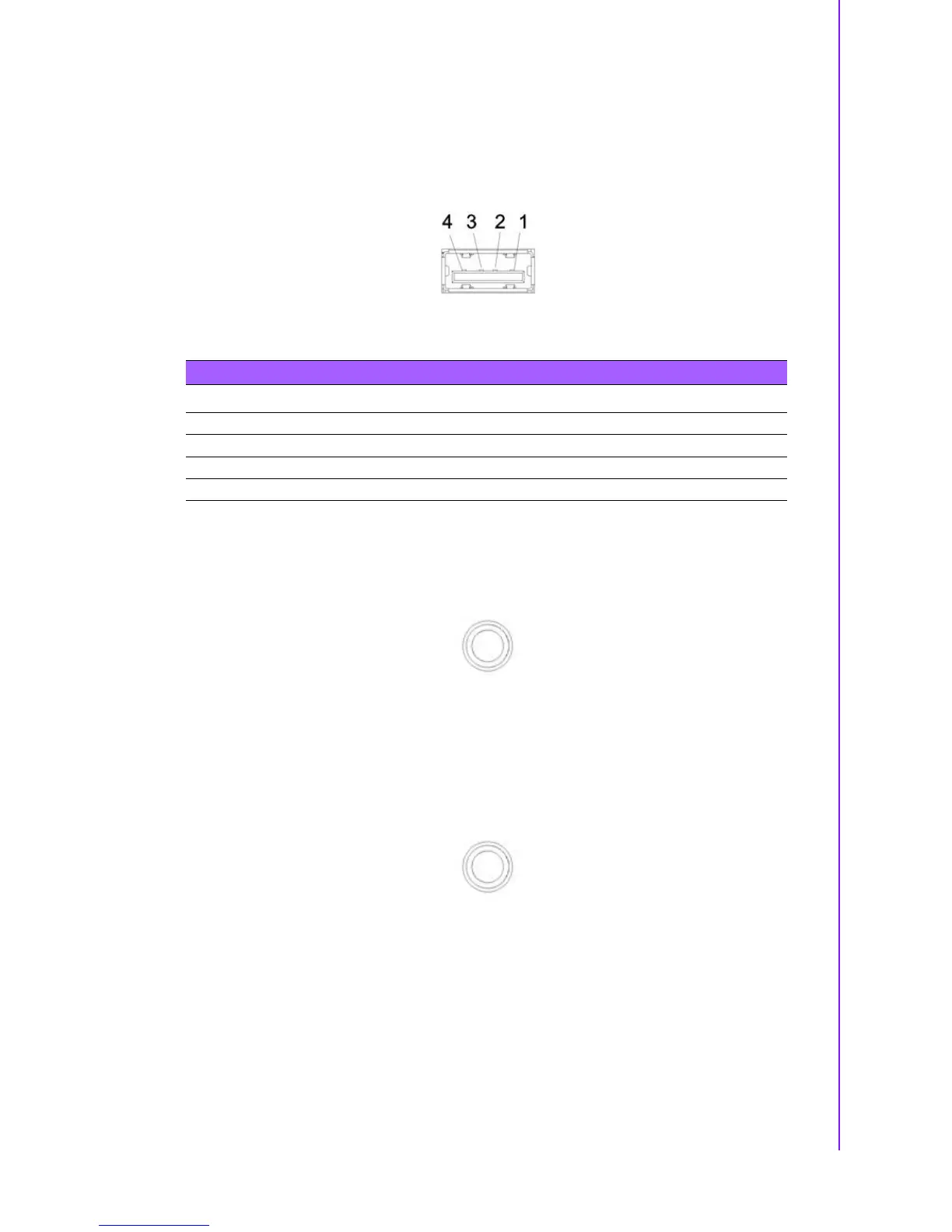

2.2.3 USB2.0 Connector
The front side provides 2x USB 2.0 complaint interfaces, which give complete Plug &
Play and hot swapping capability for up to 127 external devices. They are compliant
with USB UHCI, Rev. 2.0. The USB ports support Plug and Play, which enables to
connect or disconnect a device without turning off the computer.
Figure 2.7 USB2.0 connector
2.2.4 Mic-in Connector
Microphone can be connected to the audio jack. (Pink color) and can be Mic-in input
functions.
Figure 2.8 Audio connector
2.2.5 SPDIF/ Line-Out Connector
The S/PDIF port is default setting and allows you to transfer digital sound to an ampli-
fier or television. Also, it supports jack-sense by Line-out functions and you can use
either SPDIF or Line-out function by plug option.
Figure 2.9 SPDIF/ Line-out connector
Table 2.2: USB Port Pin Assignments
Pin Signal Name
1VCC
2 USB Data-
3 USB Data+
4GND
