 PCIe Speed [Auto]
 Detect Non-Compliance Device [Disabled]
 Extra Bus Reserved [0]
 Reserved Memory [10]
 Prefetchable Memory [10]
 Reserved I/O [4]
 PCIE Cp [2]
 PCIE Cm [6]
 PCIE LTR [Enabled]
 PCIE LTR Lock [Disabled]
 PCH PCIe CLKREQ# Configuration: PCIE16 CLKREQ Mapping Override
[Default], Snoop Latency Ocerrice [Auto], Non Snoop Latency Ocerride [Auto]

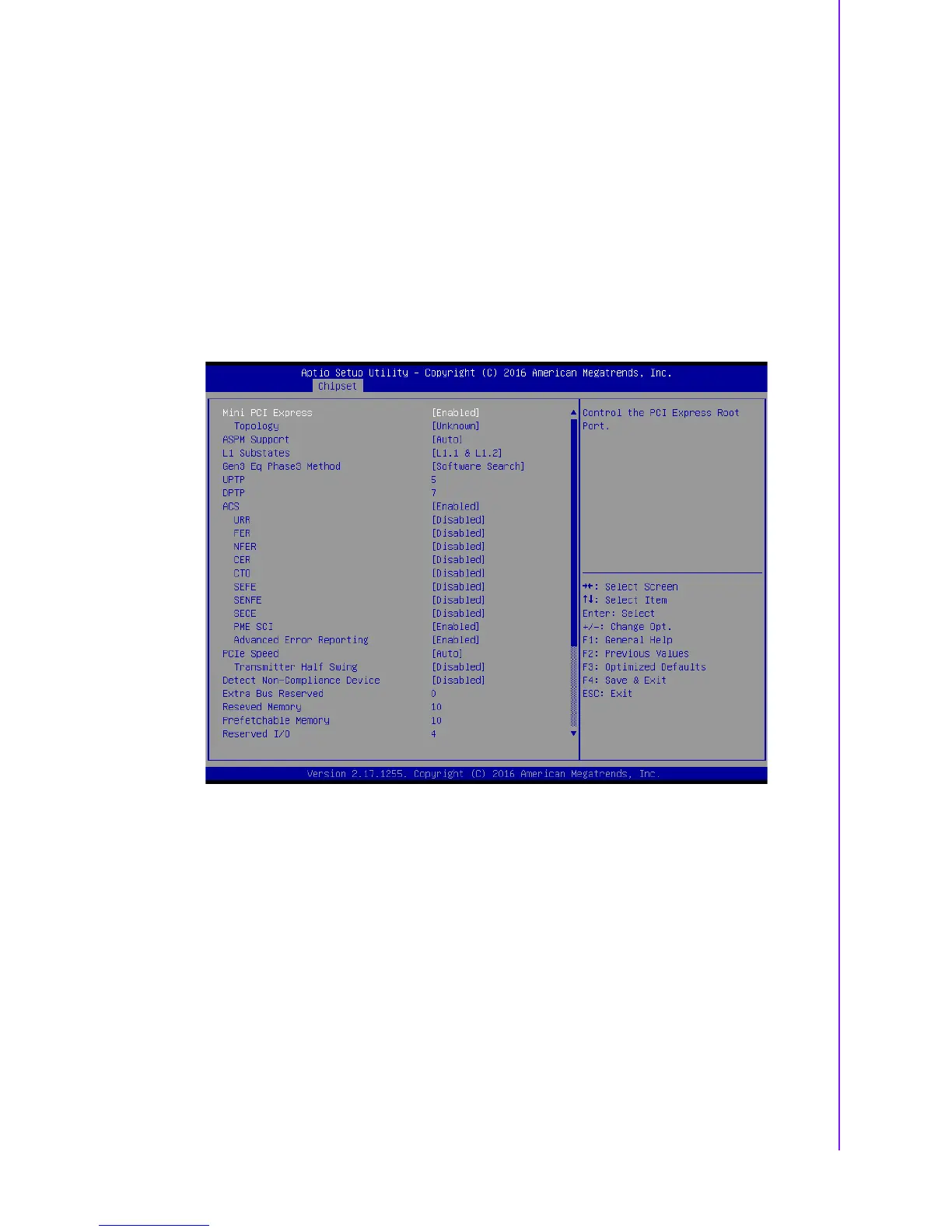

Figure 4.31 Mini PCI Express/ M.2 (1)
