17 DS-980/DS-980GL User Manual
Chapter 3 Hardware Installation
3.2 Socket Type CPU & Thermal Module Installation
1. Respectively remove 4 screws with number 1 and 2 six-angle screws with num-
ber 2 at the back of the plate.
2. Push DS-980/DS-980GL top case (number 3) back, then remove it.
3. Socket type CPU (number 5) installation
3.1. Unhook the socket lever by pushing down and away from the socket, and
gently press socket lever and the load plate will lift from the socket.
3.2. Open the load plate and make sure not to damage any of the pins inside of
the socket, and align the notches on the CPU to the notches in the socket.
3.3. Lower the processor straight down into the socket and the load plate back
so it is resting on the CPU.
3.4 Press the socket lever to ensure the load plate tip engages under the
socket.
3.5 Carefully lock the lever back into place.
4. Thermal module (number 4) installation
4.1. Remove the paper template on the thermal grease first, and gently place
the thermal module on CPU socket without any pressure.
4.2. Tighten 4 screws on the thermal module with diagonal directions to balance
each pressure on CPU.
4.3. Connect the thermal cable to the connector printed CPUFAN1 on mother-
board.
5. After completed 3 & 4 procedures, please push DS-980/DS-980GL top case
(number 3) towards the front side and exactly cover the system. Then, tighten
all the screws (number 1 & 2) back on the chassis.

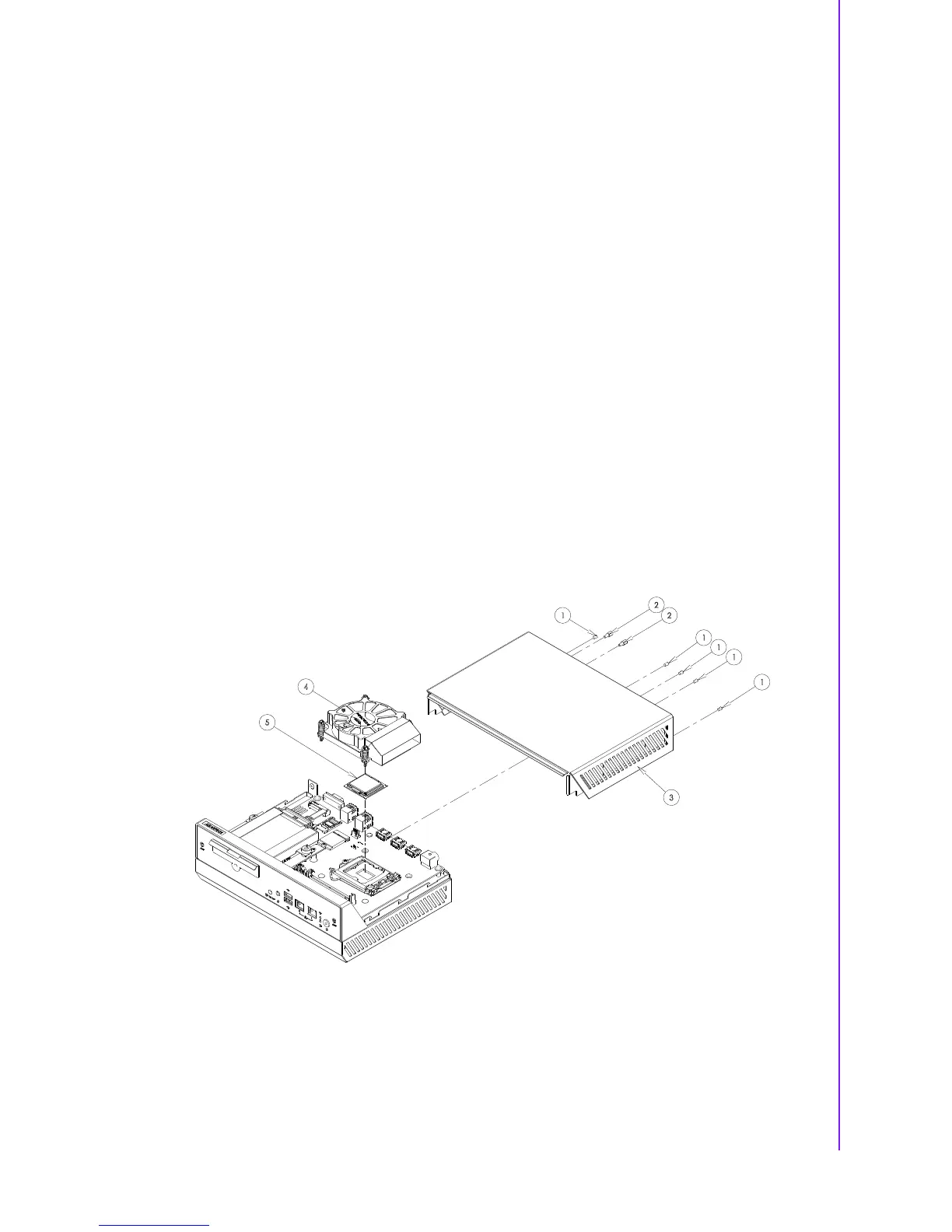

Figure 3.1 Socket type CPU & Thermal module installation
