23 DS-980/DS-980GL User Manual
Chapter 3 Hardware Installation
3.7 Mini-PCIe Card/ SIM Card/ M.2 WIFI Module
Installation (Options)
1. Respectively remove 4 screws with number 1 and 2 six-angle screws with num-
ber 2 at the back of the plate.
2. Push DS-980/DS-980GL top case back, then remove it.
3. Install mini-PCIe card on its mini-PCIe slot (number 3)/ SIM card on its SIM slot
(number 6)/ M.2 WIFI module with 1 screw (number 4) on its M.2 2230 slot
(number 5).
4. After completed it, please push DS-980/DS-980GL top case towards the front
side and exactly cover the system. Then, tighten all the screws (number 1 & 2)
back on the chassis.

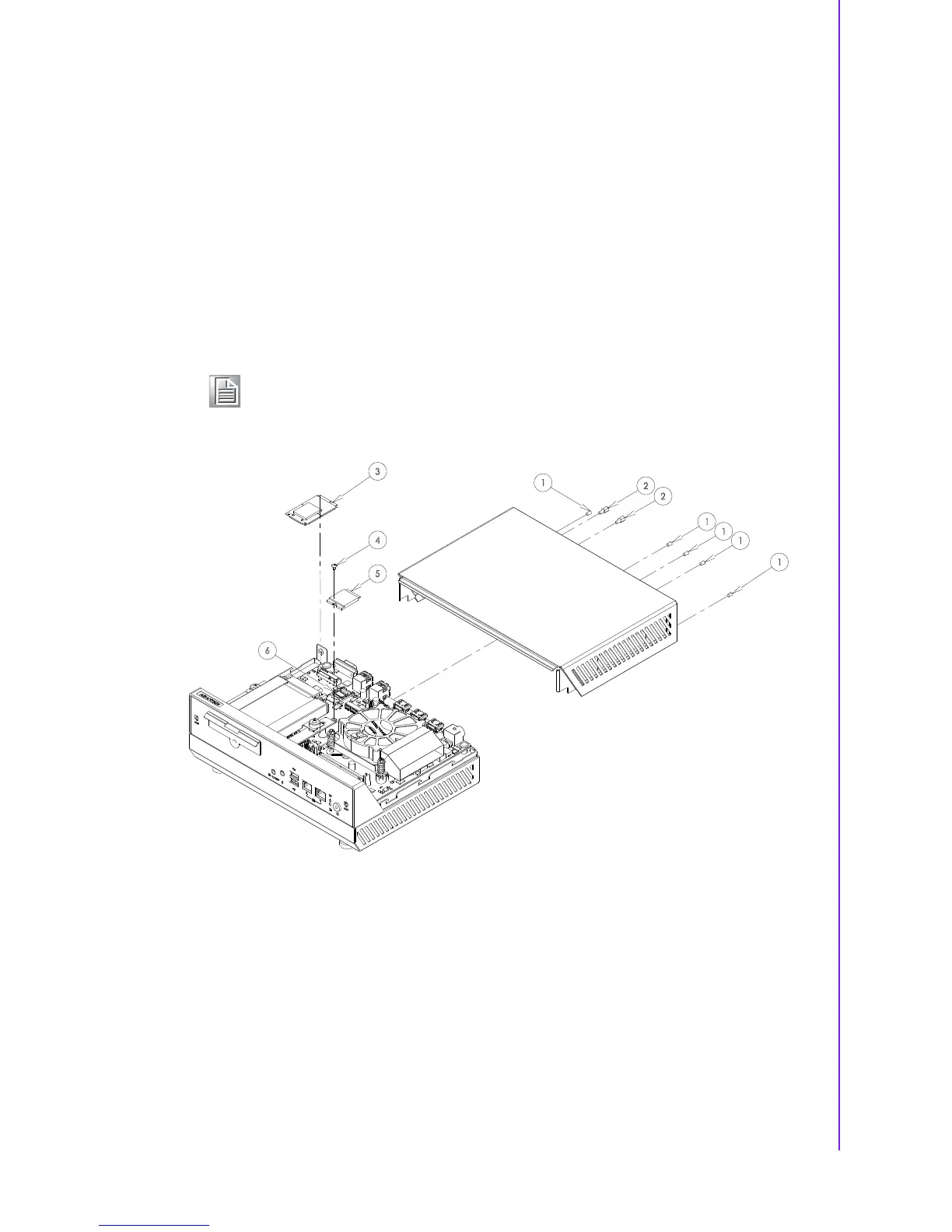

Figure 3.8 Mini-PCIe card/ SIM card/ M.2 WIFI module installation
Note! Mini PCIe slot supports mSATA or mini PCIE card.
