27 DS-980/DS-980GL User Manual
Chapter 3 Hardware Installation
3.11 VESA Brackets Installation
1. Upside down the device first on a flat and clear floor.
2. Both of DS-980/DS-980GL configurations, using the middle of screw holes to
install the mounting brackets (number 2) by 4 screws (number 1) (M3x6L).
3. Gently place VESA bracket (number 3) on the mounting brackets with the right
holes which mark DS-9XX printings and tighten 4 screws (number 4) (M4x 10L)
with the opposite directions to the monitor.

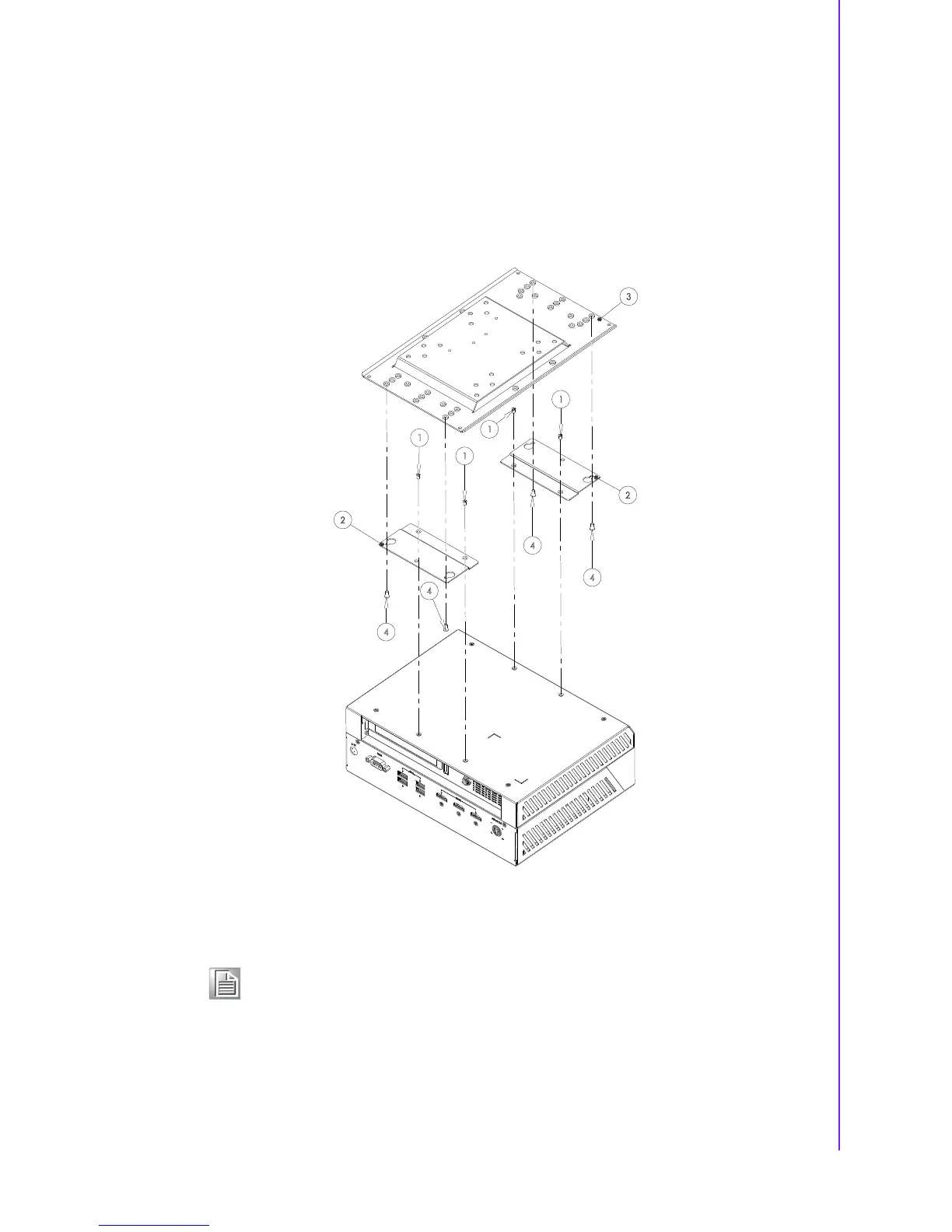

Figure 3.12 VESA brackets installation
Note! Please select the suitable screws and consider your loading of the
safety value when you install DS-980/DS-980GL behind to the monitor,
(DS-980/DS-980GL with expansion configuration weight is 3.8kg; light
configuration is 3.1kg)
2
2
1
1
1
1
3
4
4
4
4
