3.5 2.5-inch SATA SSD Installation (Bottom Layer)
1. Upside down the device first on a flat and clear floor.
2. If necessary, please remove all the screws (number 1, 2, & 3) at the bottom side
including stand rubbers or mounting brackets.
3. Carefully lift up the bottom case (number 4).
4. 2.5-inch SATA module installation
4.1. Gently insert 4 yellow rubbers (number 5) into the storage tray.
4.2. Install 2.5-inch SATA on this storage tray (number 6) by 4 step screws
(number 7) from the side.
5. Make sure to connect SATA cable and SATA power cable with 2.5-inch SATA
SSD and flatly install this SATA module by 4 screws (number 8). Properly place
both cables behind the nuts and keep a clear look.
6. Carefully put the bottom case down and make sure to cover the whole device,
then tighten all the screws (number 1, 2, & 3) back.

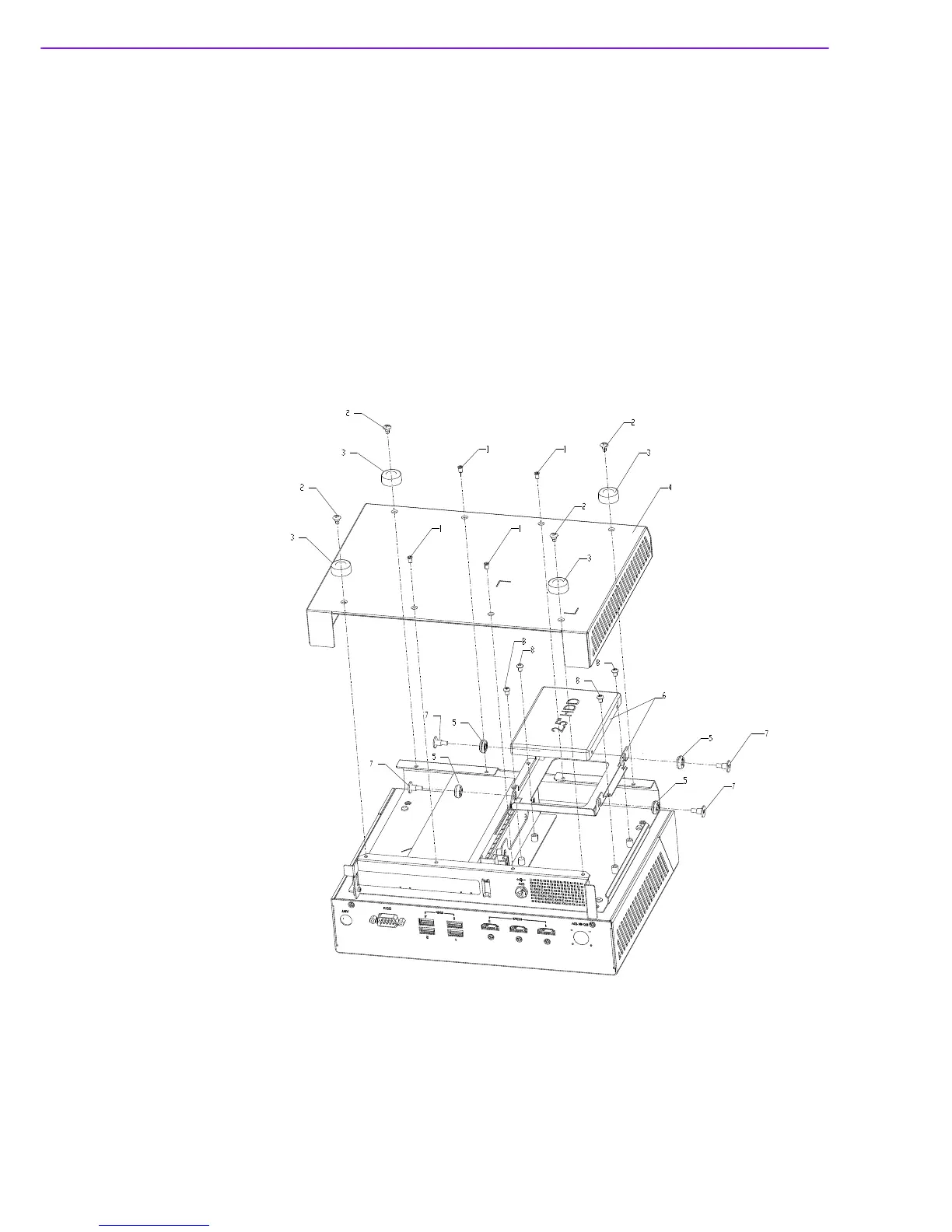

Figure 3.4 2.5-inch SATA SSD installation (bottom layer)
