3.8 Antenna Installation (Options)
1. Respectively remove 4 screws with number 1 and 2 six-angle screws with num-
ber 2 at the back of the plate.
2. Push DS-980/DS-980GL top case back, then remove it.
3. Clean the antenna holes which you want to use and fix the WIFI cable (number
3) on them by rubbers, nuts, and six-angle screws.
4. After completed it, please push DS-980/DS-980GL top case towards the front
side and exactly cover the system. Then, tighten all the screws (number 1 & 2)
back on the chassis.
5. Install the external antennas (number 4) and make sure to properly tighten
them.

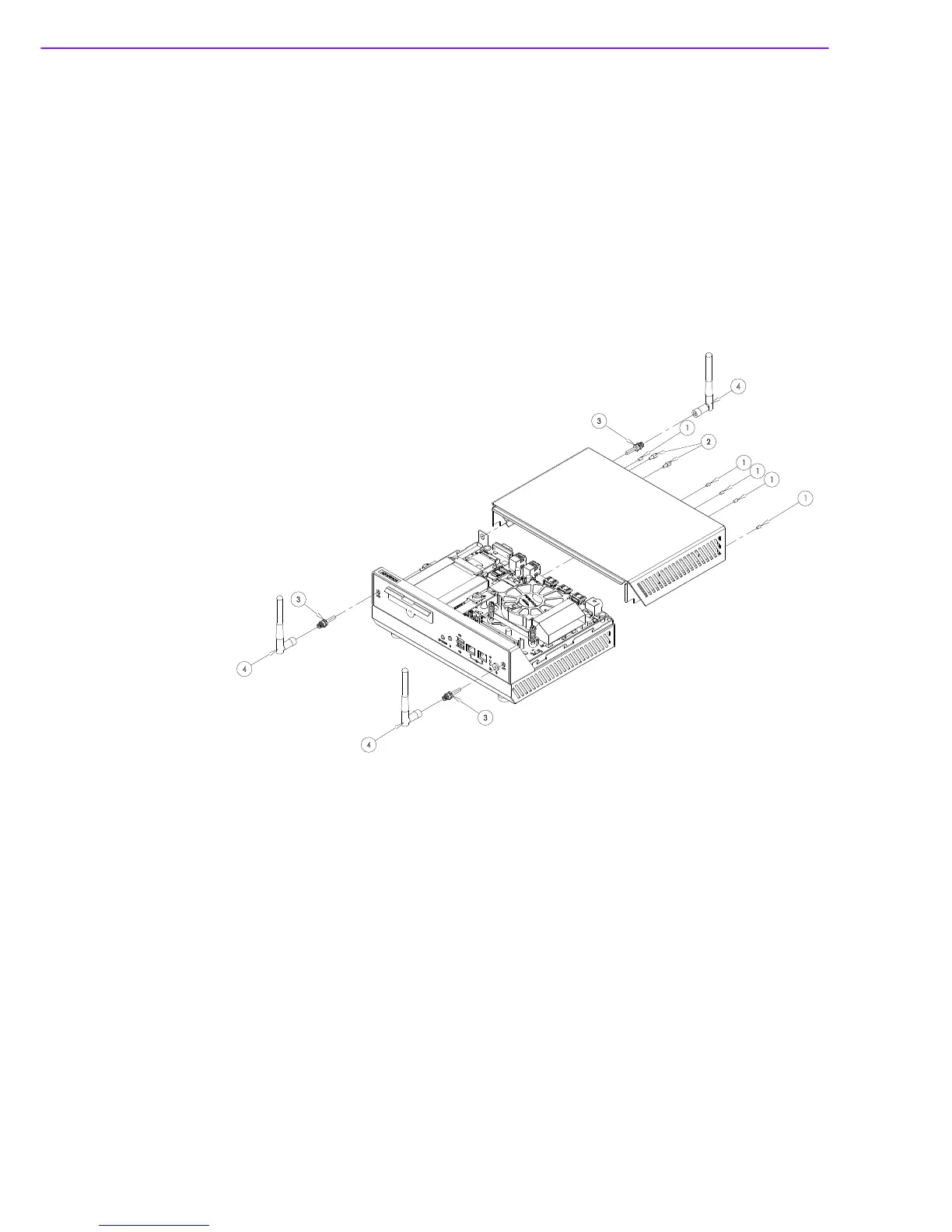

Figure 3.9 Antenna installation
1
1
1
1
1
3
2
4
3
3
4
4
