DS-980/DS-980GL User Manu
al
Chapter 4
BIOS Settings
4.2.2.5
ITE8528E HW Monitor
Monitor hardware status (PC hea
lth status): Display system health st
atus.

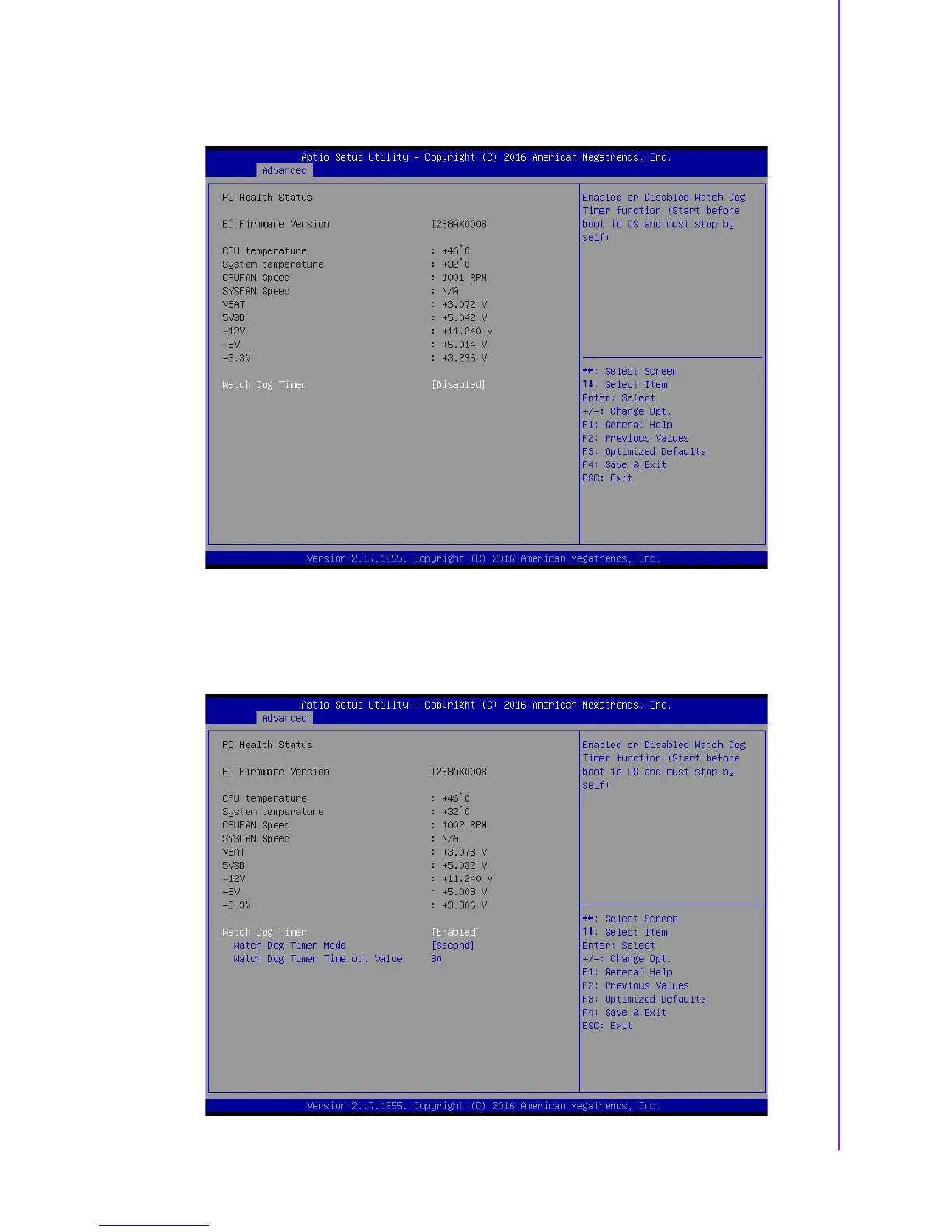

Figure 4.8 ITE8528E HW monitor
W
atchDog T
imer [Disabled]: Enabled/ Disabled W
atchDog T
imer; When [Enabled],
you can change W
atchDog T
imer Mode is based on [Second] and T
ime out V
alue
[30] you want.
Figure 4.9 W
atchDog Timer setting
