DS-980/DS-980GL User Man
ual
40

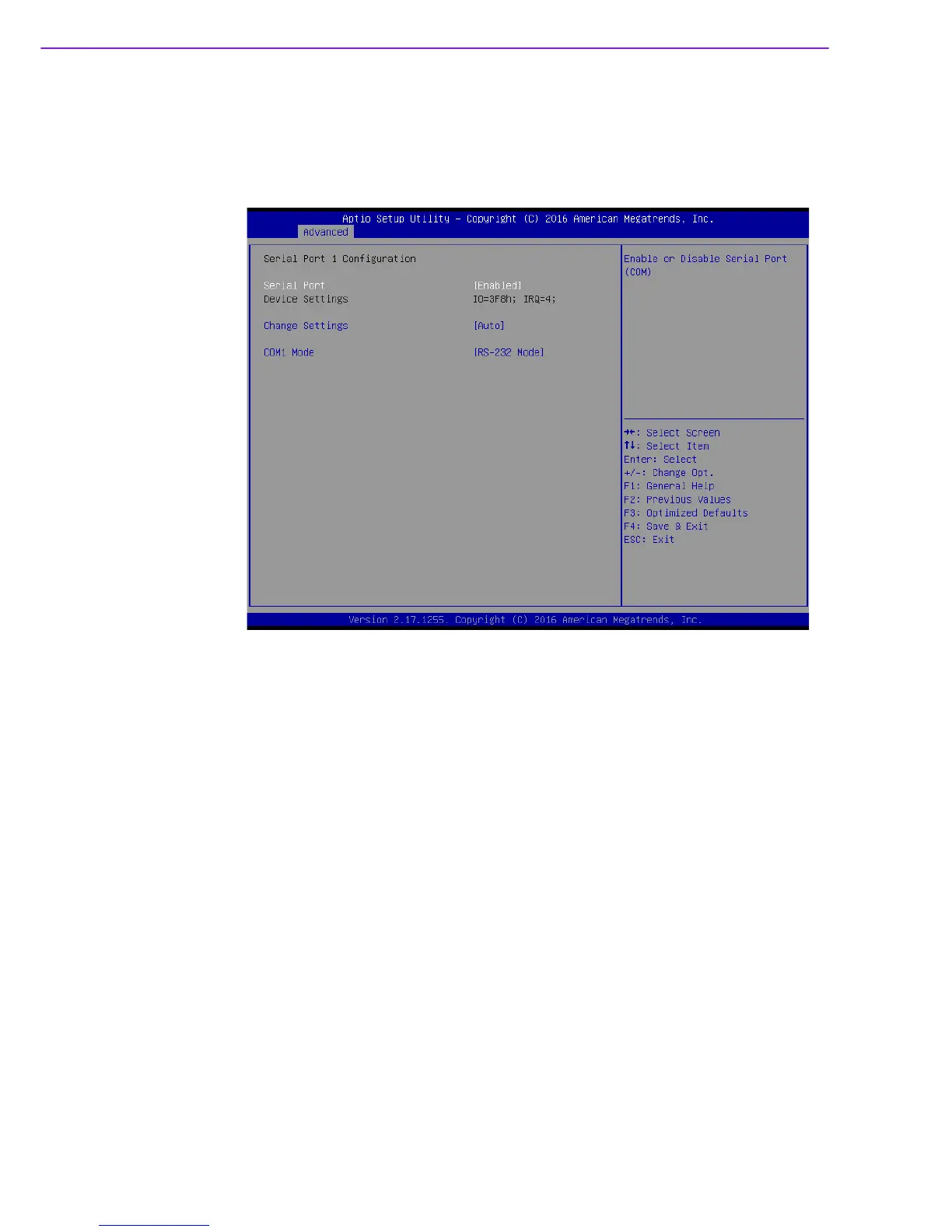

Serial Port 1 Configuration: Set Pa
rameters of Serial Port 1.
–
Serial Port [Enabled]: Ena
bled/ Disabl
ed Serial Port; Config
uration options:
[Disabled][Enabled].
–
Device Setting [IO=3F8h; IRQ=4].
–
Change Setting [Auto]: Sele
ct an optimal setting for Super IO device.
