Web GUI Monitoring & Control

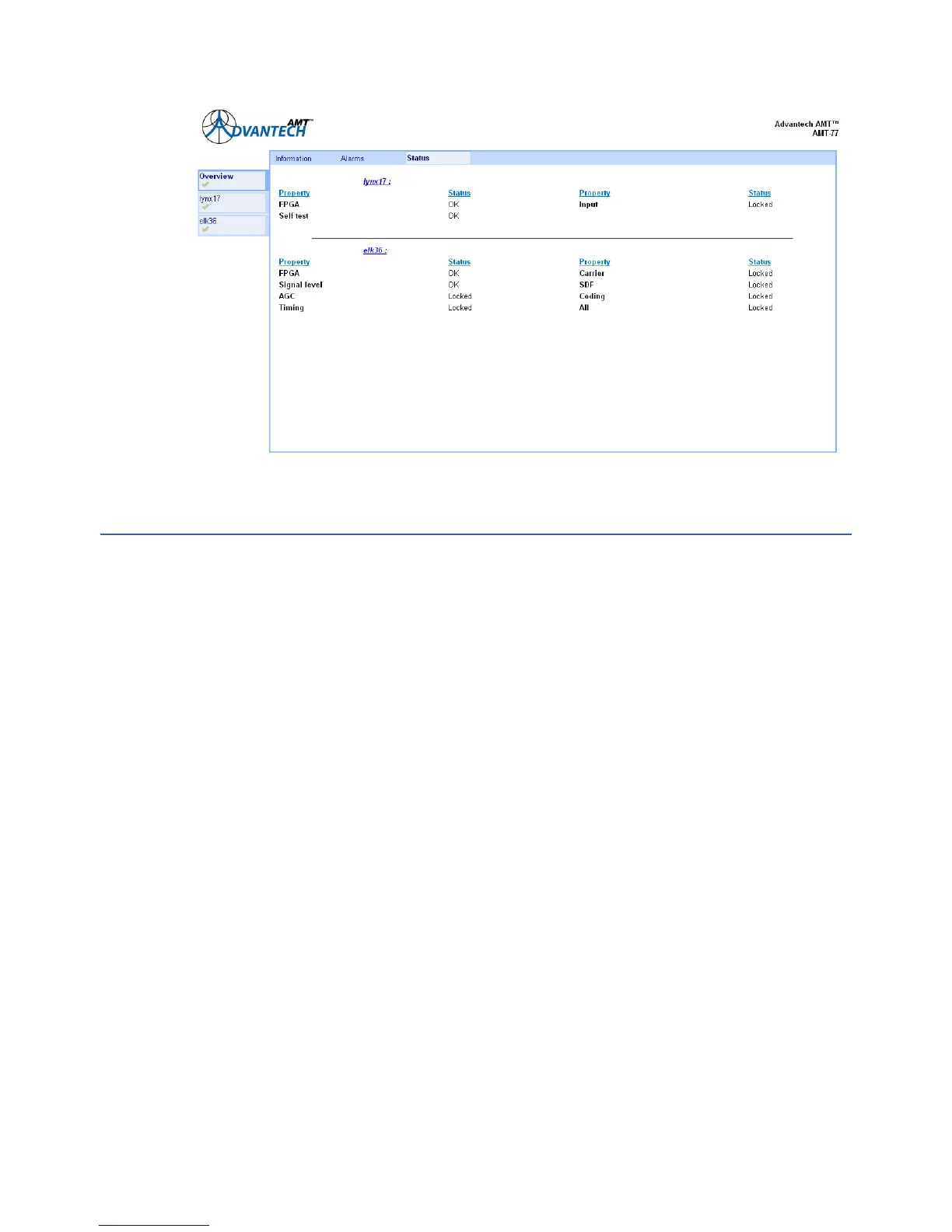

Figure 4.5: Status Window
4.4 SBM-75: Information
The following web page menus are provided to enable the user to view and change the various
properties of the SBM-75 functional unit.
4.4.1 Information
By selecting the SBM-75 tab from the monitor bar on the left-hand side of the main panel, the
user is able to set the name of the unit, check the software version and available optional
features or capture a system snapshot. When the tab is selected, a window similar to that shown
in Figure 4.6 is displayed.
SBM75e Series Modulator Installation and Operation Manual
4-7
