Web GUI Monitoring & Control
4.7.7 Profiles
This option allows the user to save and recall a variety of operational profiles and exchange
profiles between different chassis via a host computer. To make use of this option the Profiles tab
may be selected from the main configuration window. A window, similar to that shown in Figure
4.12 is displayed.

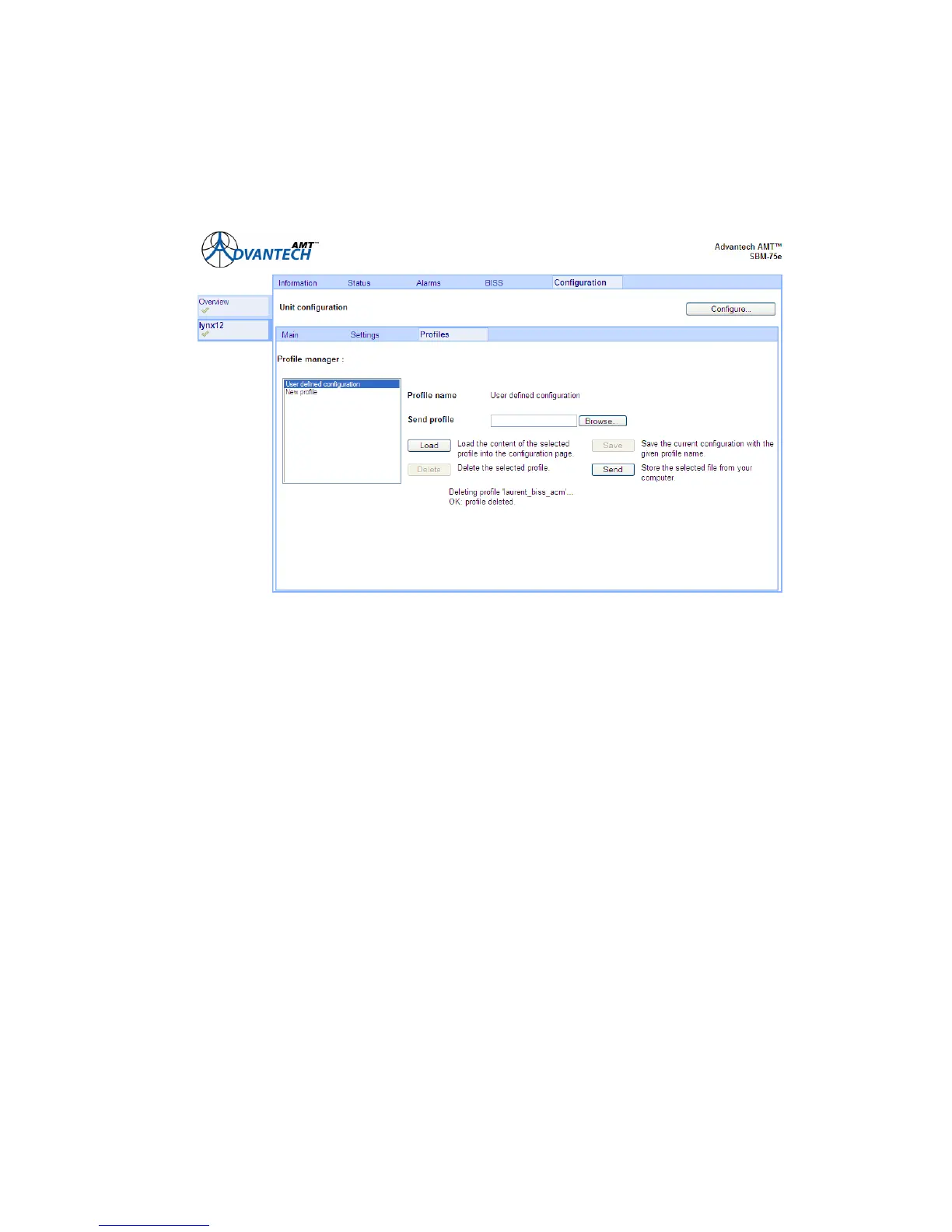

Figure 4.13: Profiles Main Window
4.7.7.1 Saving and Overwriting Profiles
When modulator configuration is complete, the user can save the configuration into a named
profile.
To create a new profile:
1. Select the ‘New Profile’ option from the list shown in Figure 4.12.
2. Enter a profile name (e.g. MuxA) in the adjacent text box.
3. Select ‘Save’. The new profile will appear in the profile list as shown in Figure 4.13.
4-18 SBM75e Series Modulator Installation and Operation Manual
