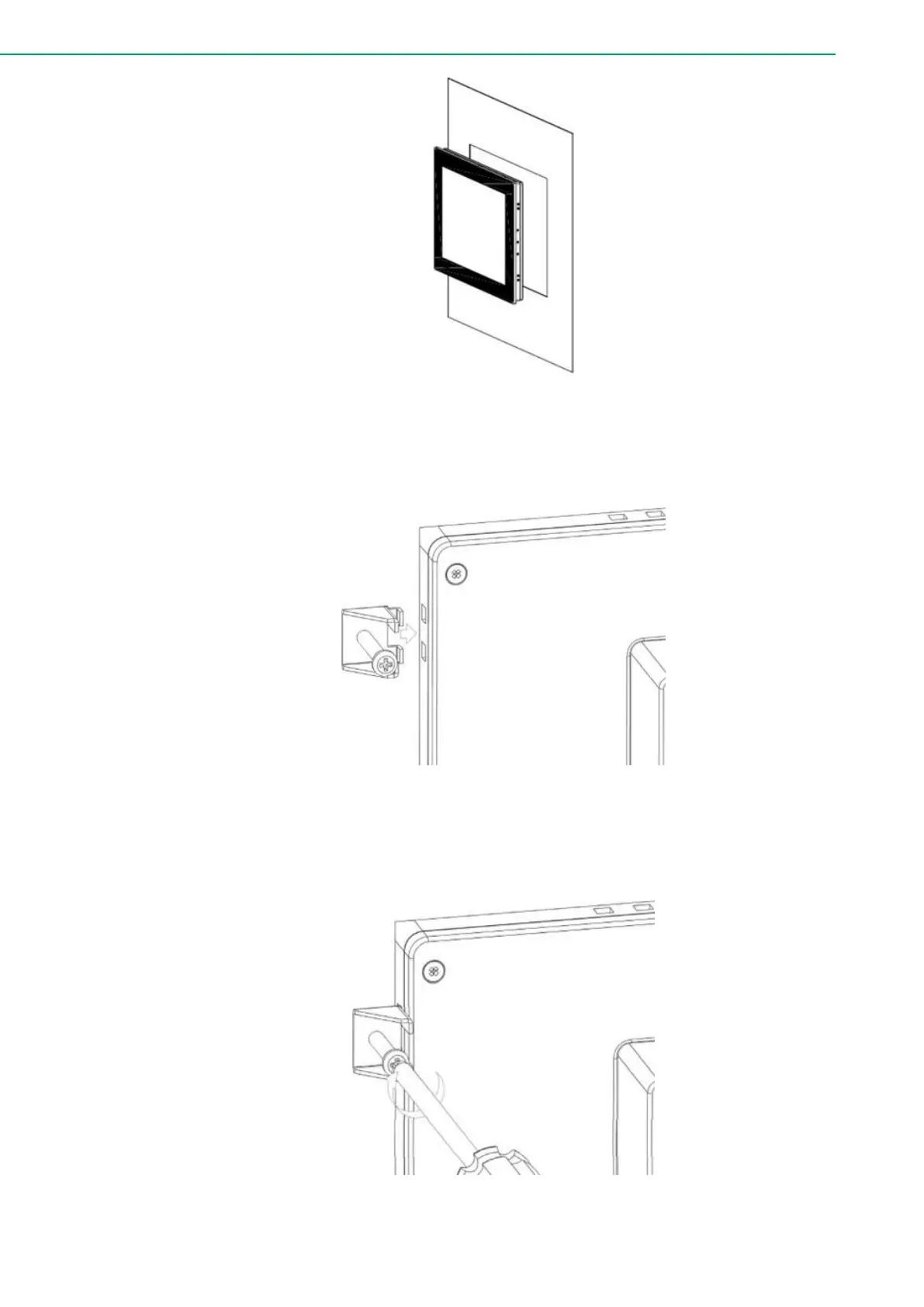

Figure 2.10 Panel Mounting (1)
3. Retrieve the clamps and long screws from the accessory pack. Hook the
clamp into the holes around the four sides of the bezel.
Figure 2.11 Panel Mounting (2)
4. Fasten the screws with a torque of 2 kgf-cm. These screws will push the
mounting panel, ensuring a secure and stable unit.
0.
Figure 2.12 Panel Mounting (3)
