TPC-B520 User Manual
51
Appendix A
Connectors

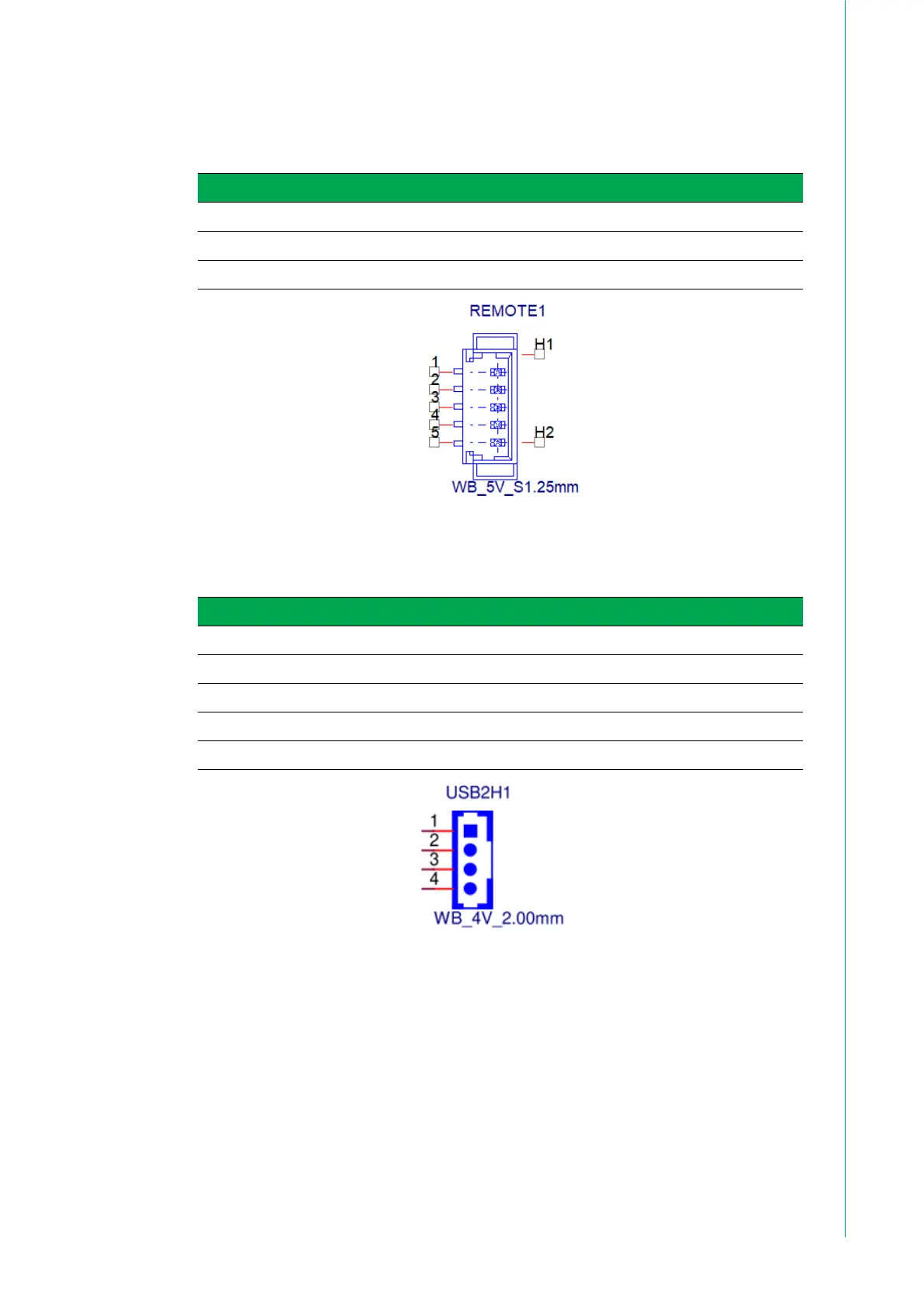

A.3 Connector Pin Definition
A.3.1 Remote Button Connector (REMOTE1)
Table A.5:Remote Button Connector (REMOTE1)
Pin
Signal
1
ATX_PWRBTN#
5
GND
A.3.2 Internal USB Connector (USB2H1)
Table A.6: Internal USB Connector (USB2H1)
Pin
Signal
1
+V5
2
D-
3
D+
4
GND
