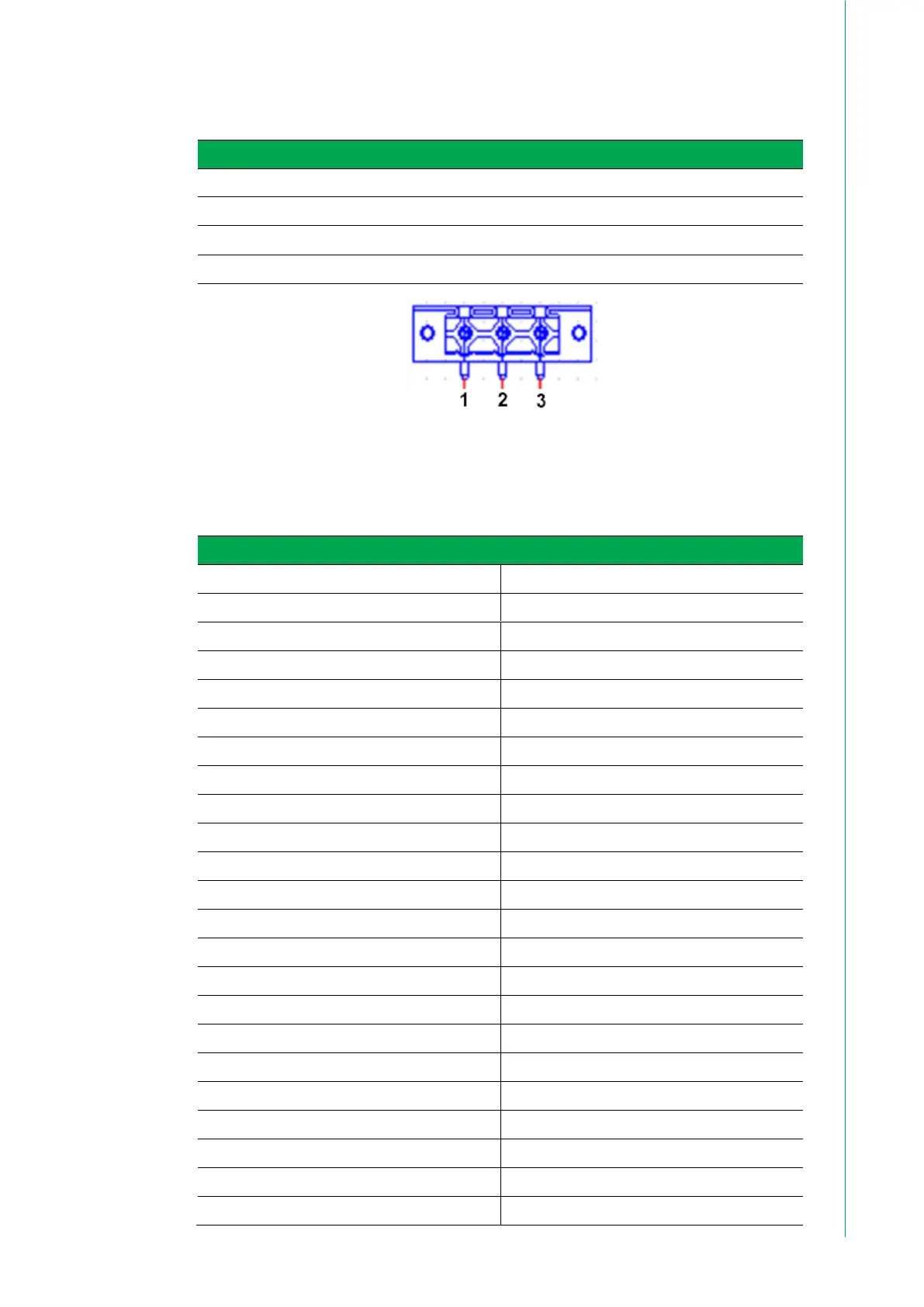

A.3.9 Power Input Connector (DCIN1)
Table A.13: Power Input Connector (DCIN1)
Pin
Signal
1
Power In V+
2
Power In V- (GND)
3
GND_EARTH
A.3.10 M.2 M-Key Connector (M2M1)
Table A.14: M.2 M-Key Connector (M2M1)
Pin
Signal
Pin
Signal
74
3.3V
75
GND
72
3.3V
73
GND
70
3.3V
71
GND
68
SUSCLK
69
PEDET(NC-PCIe/GND-SATA)
58
NC
67
NC
56
NC
57
GND
54
PEWAKE0#
55
REFCLKp
52
CLKREQ0#
53
REFCLKn
50
PERST0#
51
GND
48
NC
49
PETp0 / SATA-A+
46
NC
47
PETn0 / SATA-A-
44
NC
45
GND
42
NC
43
PERp0 / SATA-B-
40
NC
41
PERn0 / SATA-B+
38
DEVSLP
39
GND
36
NC
37
PETp1
34
NC
35
PETn1
32
NC
33
GND
30
NC
31
PERp1
28
NC
29
PERn1
26
NC
27
GND
24
NC
25
PETp2
