TPC-B520 User Manual
49
Appendix A
Connectors
USB2H1
Internal USB connector
SATAPWR1
SATA power connector
DCOUT1
iDoor power connector
BAT1
RTC battery connector
COM1
COM1 RS-232/422/485 connector
COM2
Internal COM2 RS-232/422/485 connector
SPK1
Speaker connector
DCIN1
Power input connector
USB2C1
USB 2.0 connector
USB3C1
USB 3.0 connector
LAN12
LAN RJ45 connectors
TYPEC1
Type-C connector
DP1
DisplayPort connector
M2M1
M.2 M-key slot
M2B1
M.2 B-key slot
M2B2
M.2 B-key slot for iDoor
M2E1
M.2 E-key slot
SIM1
SIM card slot
DIMMA1
Memory slot
BTB1
Front panel module connector
SATA1
SATA SSD connector
A.2 Jumper Settings and Descriptions

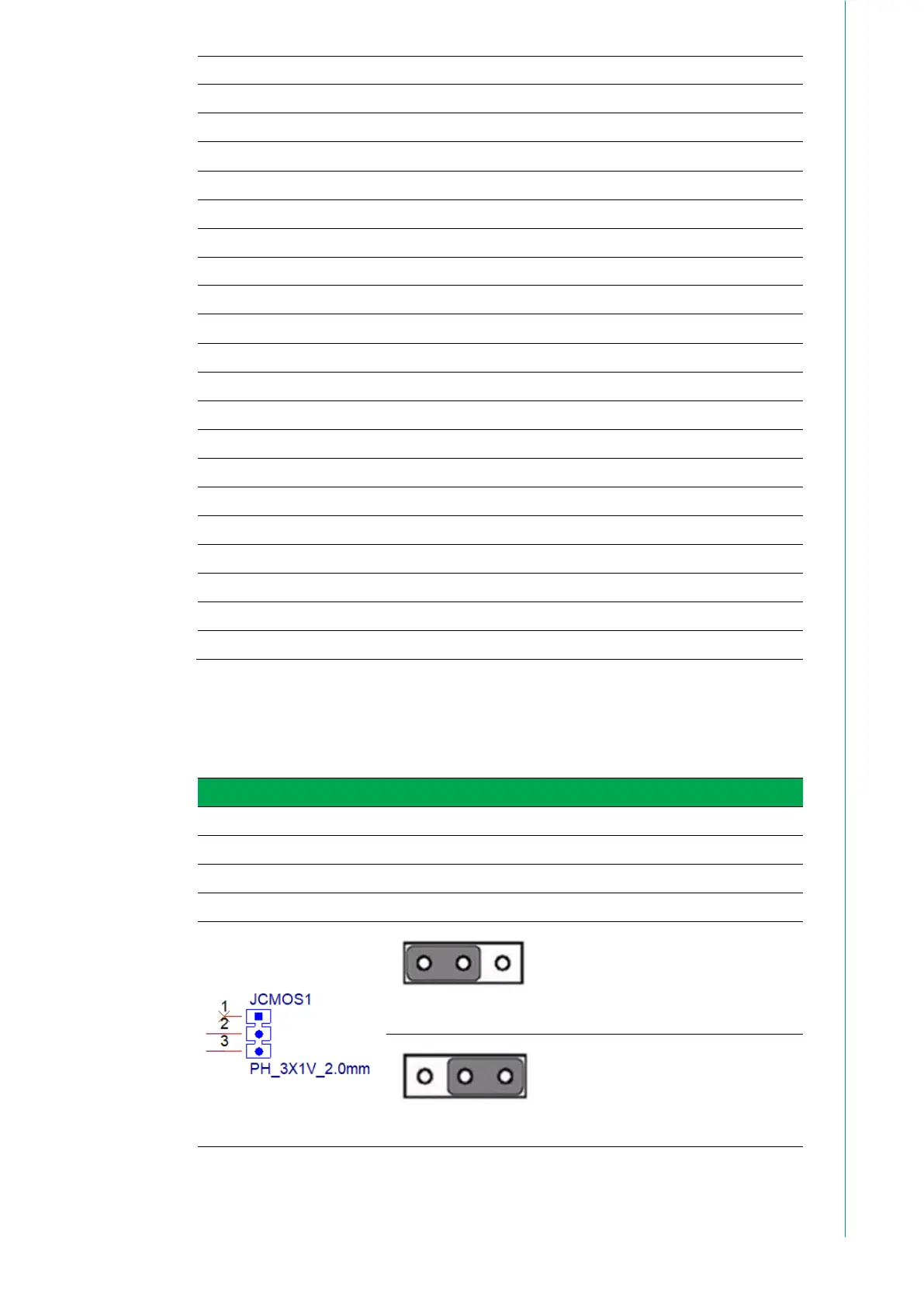

A.2.1 CMOS Clear Function (JCMOS1)
Table A.2: CMOS Clear Function
Description
This jumper is used to select CMOS clear
Default
(1-2)
(1-2)
Normal (Default)
(2-3)
Clear CMOS
(1-2) Normal, default
(2-3) Clear CMOS
