Advantech TPC-B520 Series - RTC Battery Connector (BAT1); Internal RS-232;422;485 Connector (COM2)

TPC-B520 User Manual
53
Appendix A
Connectors

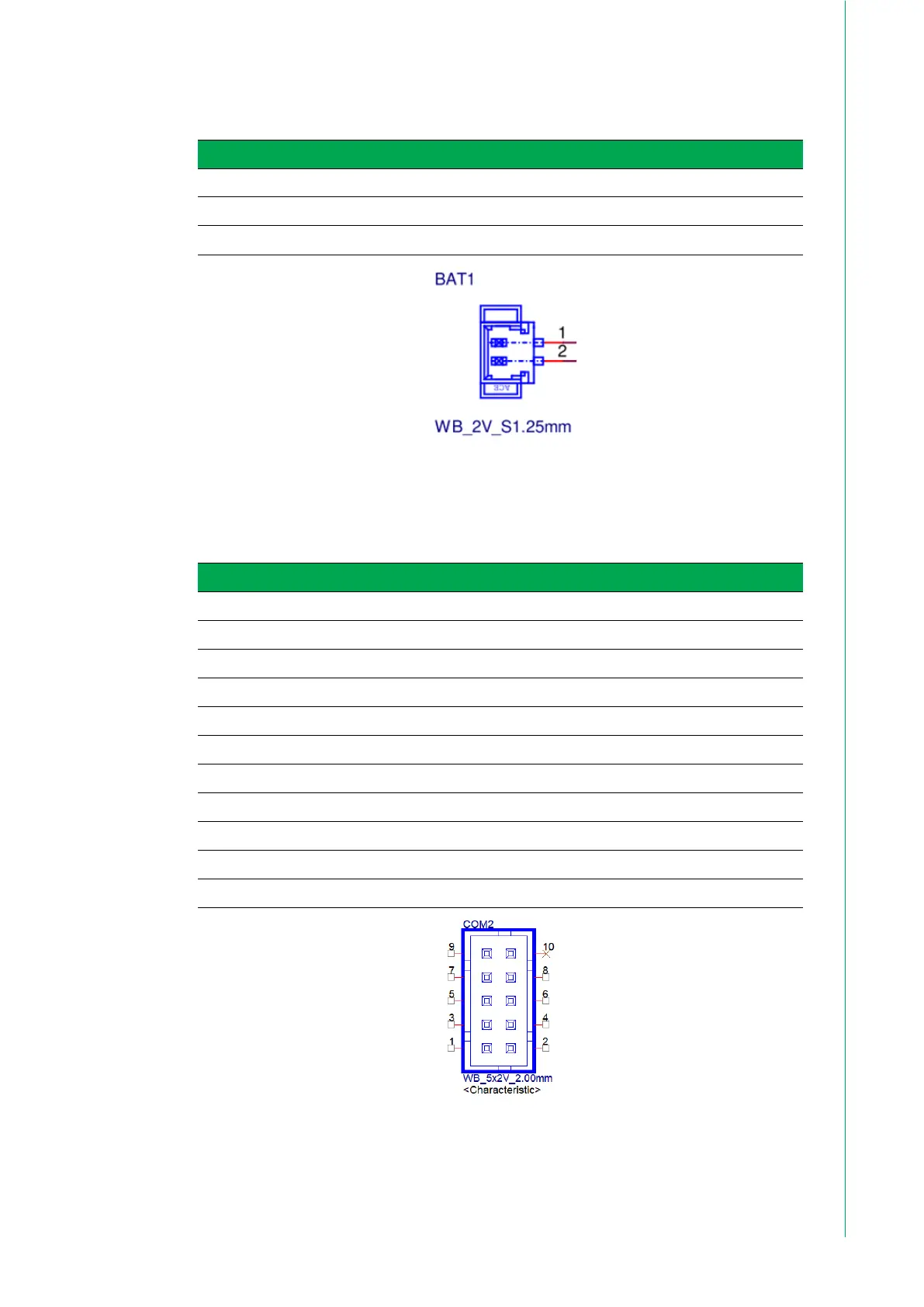

A.3.5 RTC Battery Connector (BAT1)
Table A.9: RTC Battery Connector (BAT1)
Pin
Signal
1
+VBAT
2
GND
A.3.6 Internal RS-232/422/485 Connector (COM2)
Table A.10: Internal COM Port Connector (COM2)
Pin
Signal
1
DCD#
2
RX
3
TX
4
DTR#
5
GND
6
DSR
7
RTS#
8
CTS#
9
RI#
10
NA
