Advantech TPC-B520 Series - AT;ATX Select (PSON1); Module Mode Select (P68, P22, P20, P38)

50
TPC-B520 User Manual

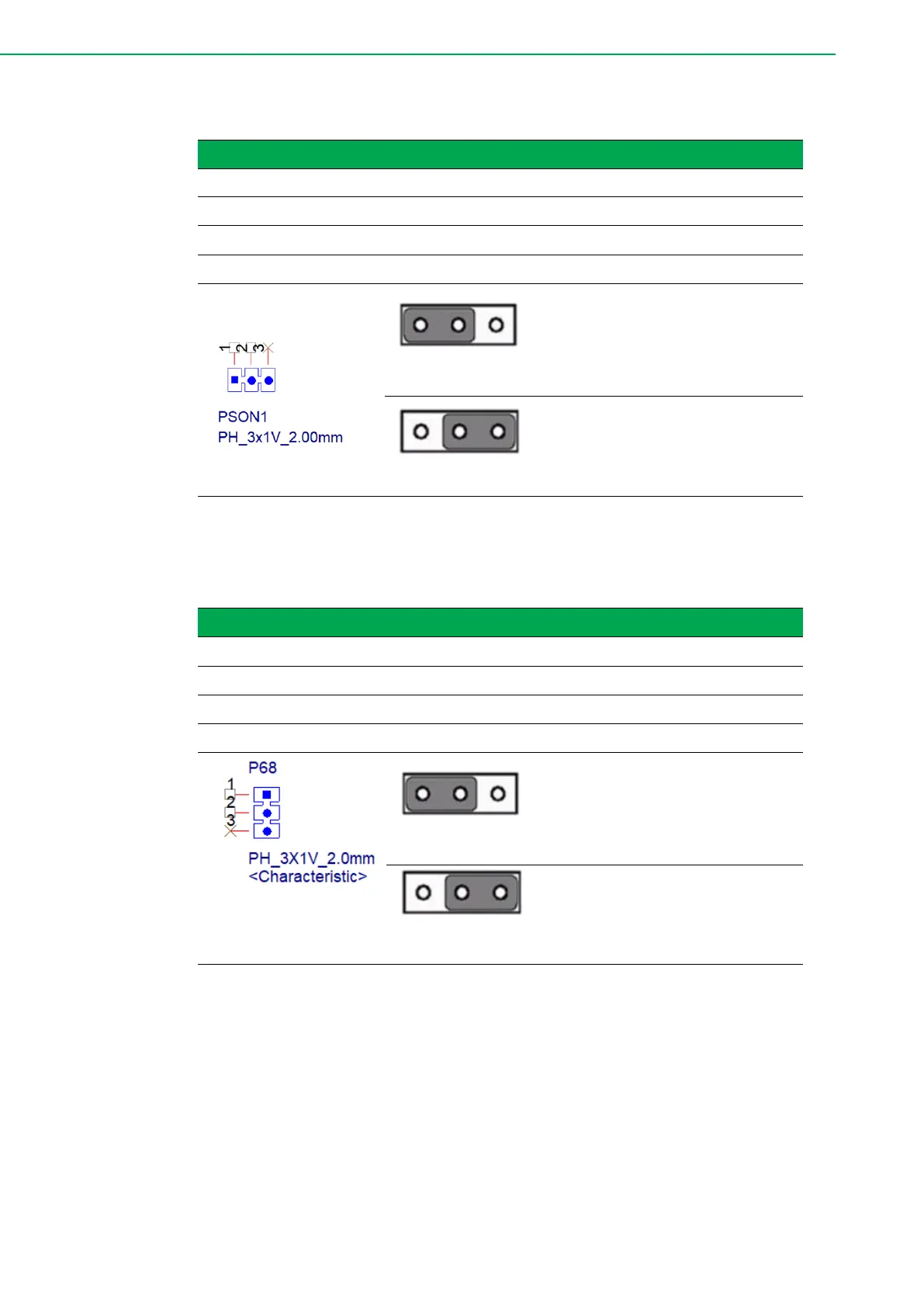

A.2.1 AT/ATX Select (PSON1)
Table A.3: AT/ATX Select
Description
This jumper is used to select power on mode
Default
(1-2)
(1-2)
AT (Default)
(2-3)
ATX
(1-2) AT power
(2-3) ATX power
A.2.2 5G Module Mode Select (P68, P22, P20, P38)
Table A.4: 5G Module Mode Select
Description
This switch is used to select 5G module mode
Default
(2-3)
(1-2)
High_1.8V
(2-3)
Normal (Default)
(1-2) High_1.8V
(2-3) Normal, default
