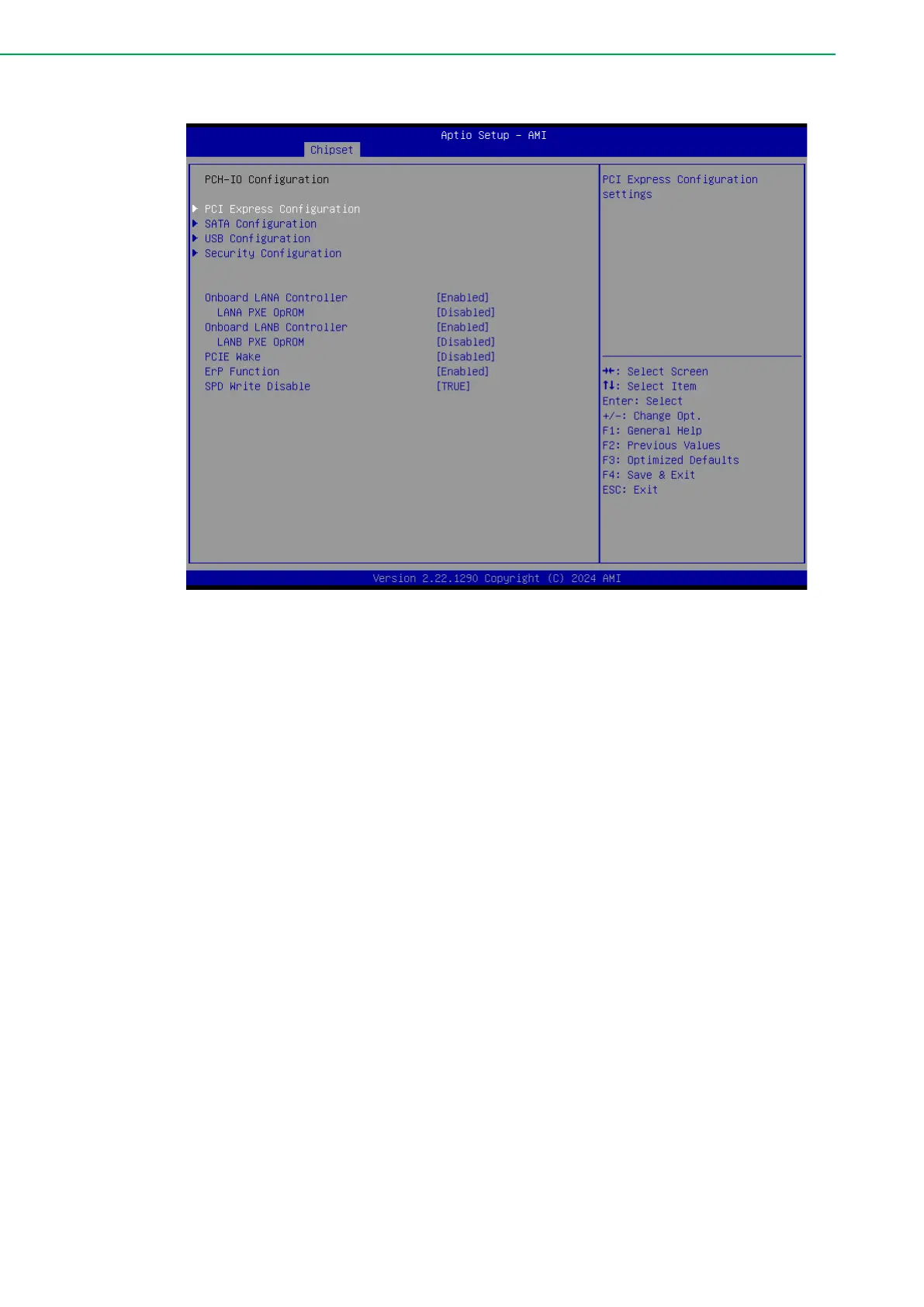

3.2.3.2 PCH-IO Configuration
◼ PCI Express Configuration
This submenu allows users to set the PCI Express settings.
◼ SATA Configuration
This submenu allows users to set the SATA device settings.
◼ USB Configuration
This submenu allows users to set the USB settings.
◼ Security Configuration
This submenu allows users to set the security configuration settings.
◼ Onboard LANA Controller
This item allows users to enable or disable the onboard LAN A controller.
◼ LANA PXE OpROM
This item allows users to enable or disable the boot option ROM for the LAN
A controller.
◼ Onboard LANB Controller
This item allows users to enable or disable the onboard LAN B controller.
◼ LANB PXE OpROM
This item allows users to enable or disable the boot option ROM for the LAN
B controller.
◼ PCIE Wake
This item allows users to enable or disable the PCIe device to wake up the
system from S3/S4/S5 state.
◼ ErP Function
When this option is disabled, the wake on function can be selected.
