Unit 1:
0x0000BA02 (29) / 0x5A2 (11) at
2Hz
Unit 2:
0x0000BB02 (29) / 0x5B2 (11) at 2Hz
Byte
Label
Data Type
Scaling
Offset
Range
0
Cold Junction Temperature
16 bit signed
0.1 degC/bit
0
-3276.8 to +3276.7 degC
1
2
Battery Voltage
8 bit unsigned
0.1 V/bit
0
0 - 25.5 V
3
n/a
n/a
n/a
n/a
n/a
4
n/a
n/a
n/a
n/a
n/a
5
n/a
n/a
n/a
n/a
n/a
6
n/a
n/a
n/a
n/a
n/a
7
n/a
n/a
n/a
n/a
n/a

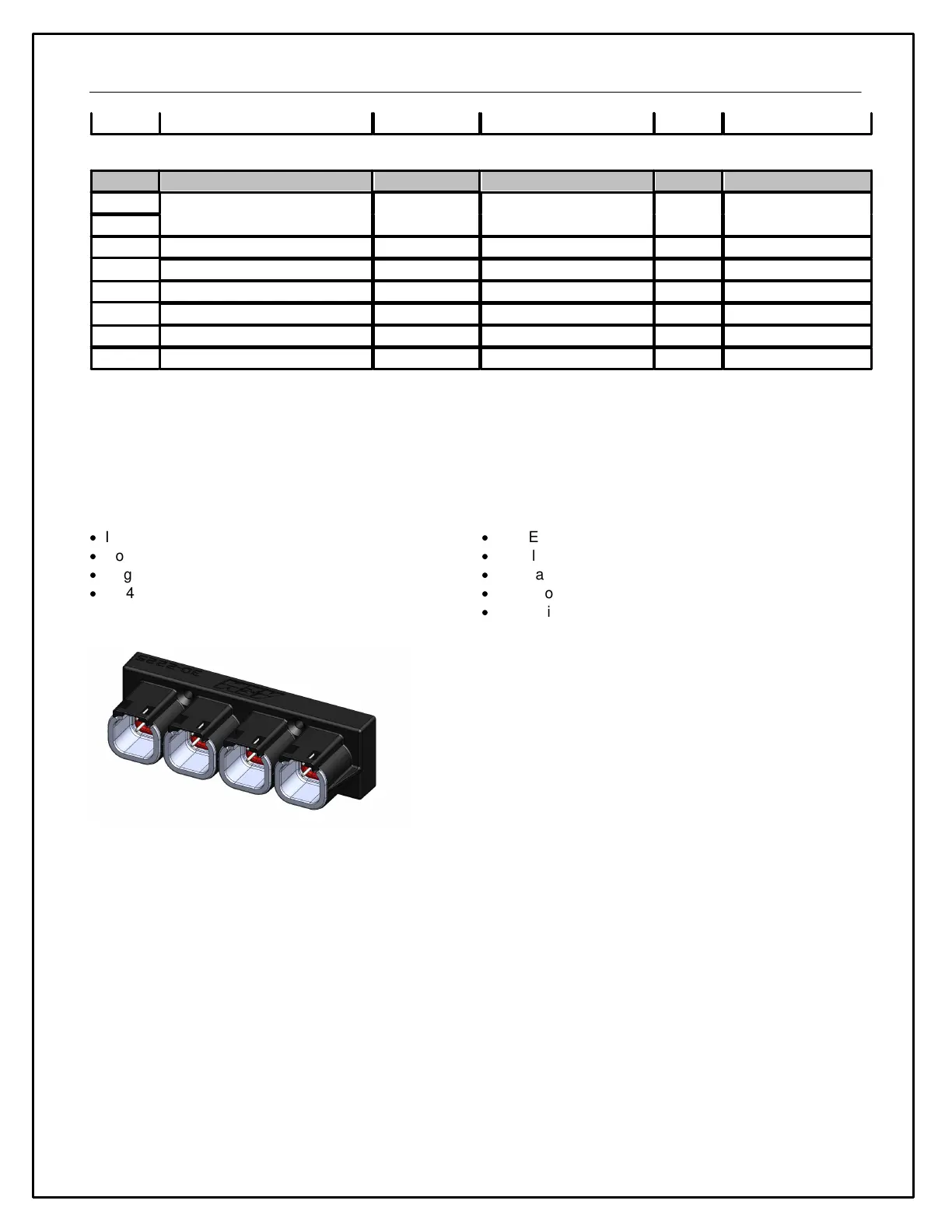

AEMNet Hub
Introduction
The AEMNet CAN Hub is used to conveniently connect multiple AEMNet devices.
Features
· Integrated 4-way Deutsch DTM housings
· Compact size
· Rugged, potted assembly
· #4-40 mounting hardware included.
Kit Contents
· 1x AEMNet Hub Module
· 2 x Flat Head Screw, 4-40 x 7/8"
· 2 x Flat Washer, 4-40 x 0.375"
· 2 x Nylock Nut, 4-40 x 9/64"
· Instruction Sheet
Device Pinout
Device Pinout
