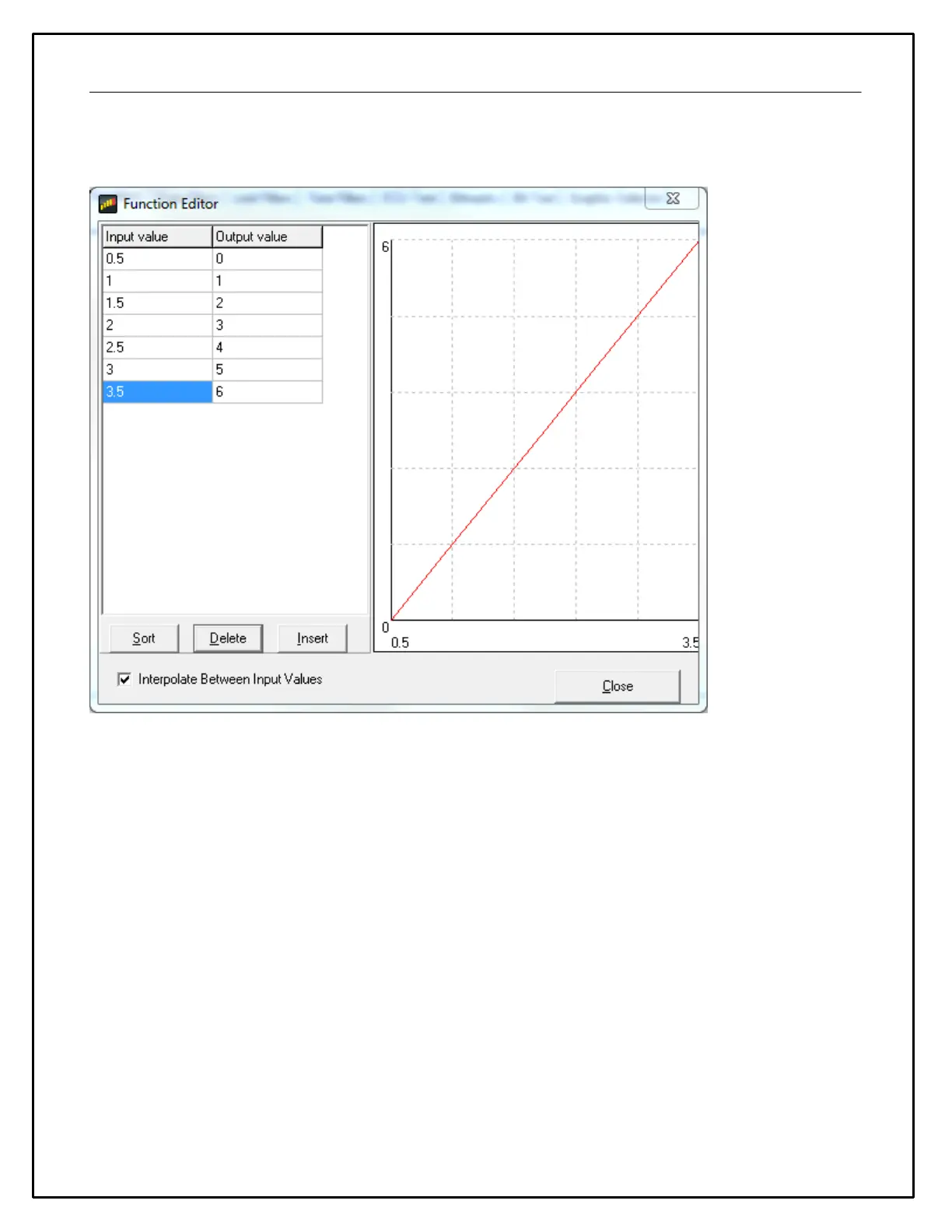

To edit the function table, click the ellipsis button (...) to show the function table editor:
Ensure there are no duplicate inputs as this may result in abnormal behavior.
Rate Filters Operation
An output using a rate filter checks that the rate of change of the input value does not exceed a specified amount. If
the rate of change is too high the new data is discarded.
Limit Filters Operations
An output using a limit filter checks that an input value never exceeds specified levels, either high or low. This can be
used to prevent invalid data from reaching other outputs or gauges. If data is received that exceeds either of the high
or low values (if specified) the data is discarded.
Time Filters Operation
Normally, outputs send data to gauges as fast as possible. However, by creating an output using a time filter
operation, it is possible to specify the update rate of the output which is useful for making rapidly changing values
more legible. Furthermore, a time filter operation can be used to perform a rolling average, minimum or maximum on
the input value which is useful for filtering noisy inputs.
To edit the Time Filter operation values, click the ellipsis button (...) to show the time filter editor:
