Installation

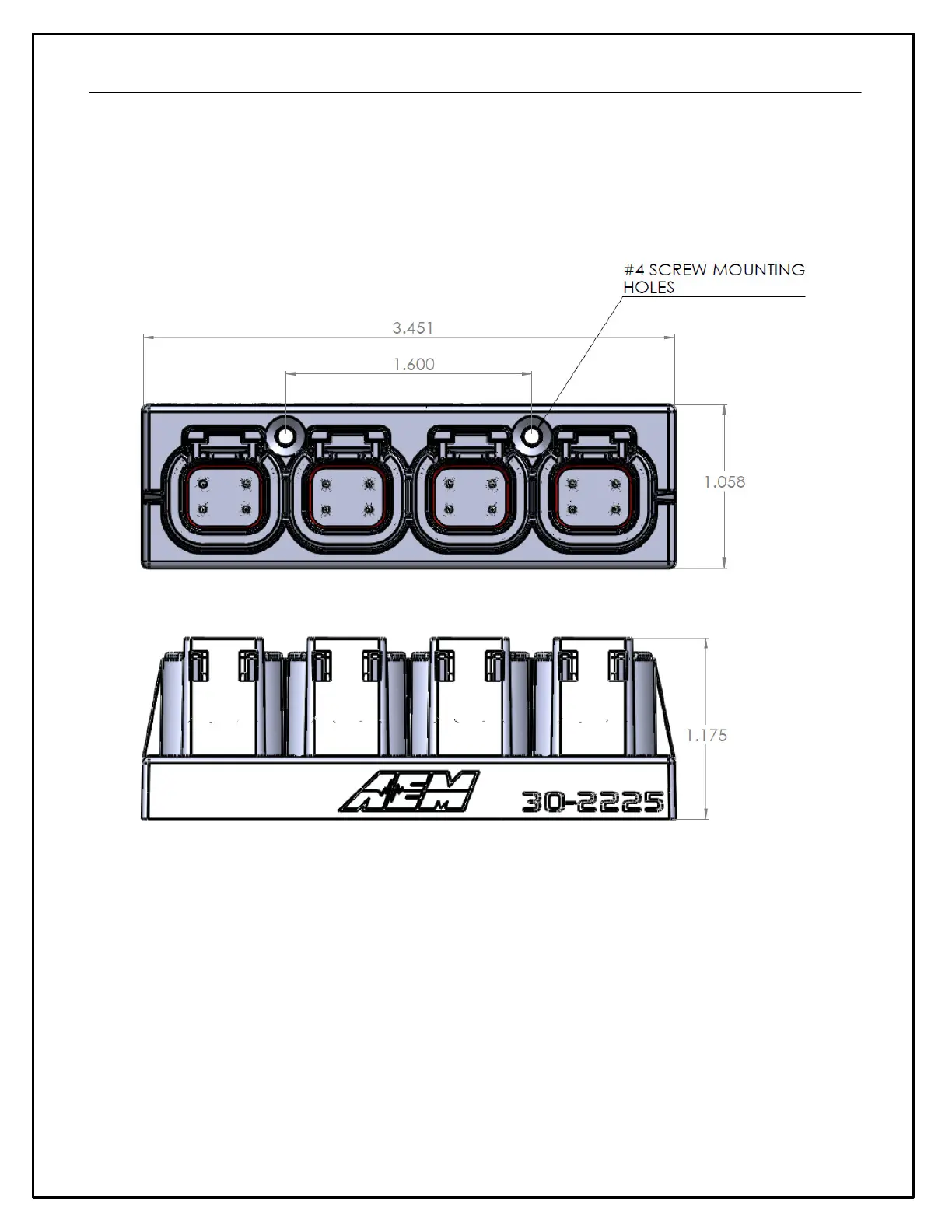

The module may be mounted within the vehicle using hook-and-loop fastener (not included) or bolted (#4 screws

included) to a suitable structure. The module is weather-resistant (IP67) and may be mounted in the engine

compartment.
