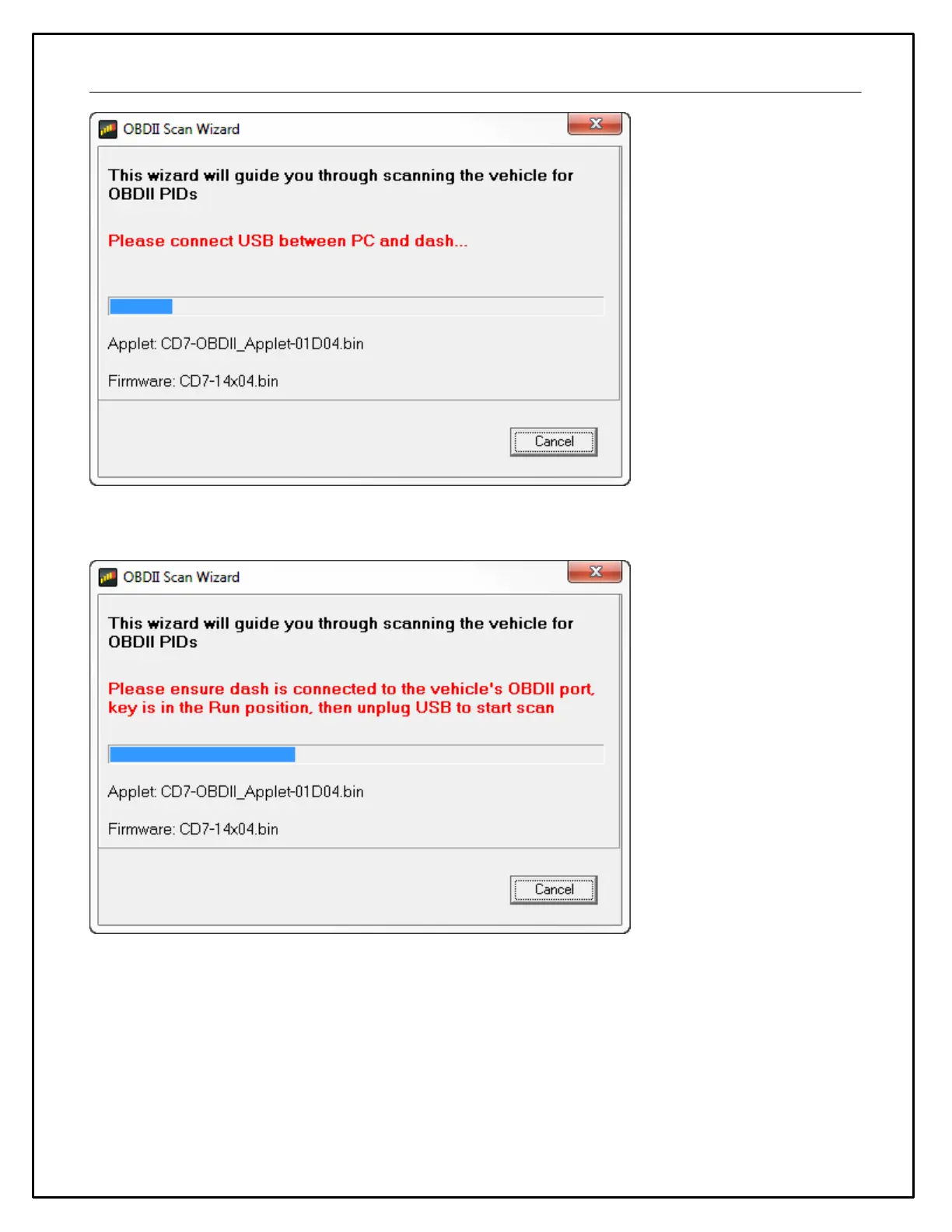

Be sure the dash is powered up and connect the USB cable between the dash and your PC and not plugged into the

car yet.

Connect the OBDII connector to your vehicle's OBDII port then unplug the USB cable to begin the scan.
