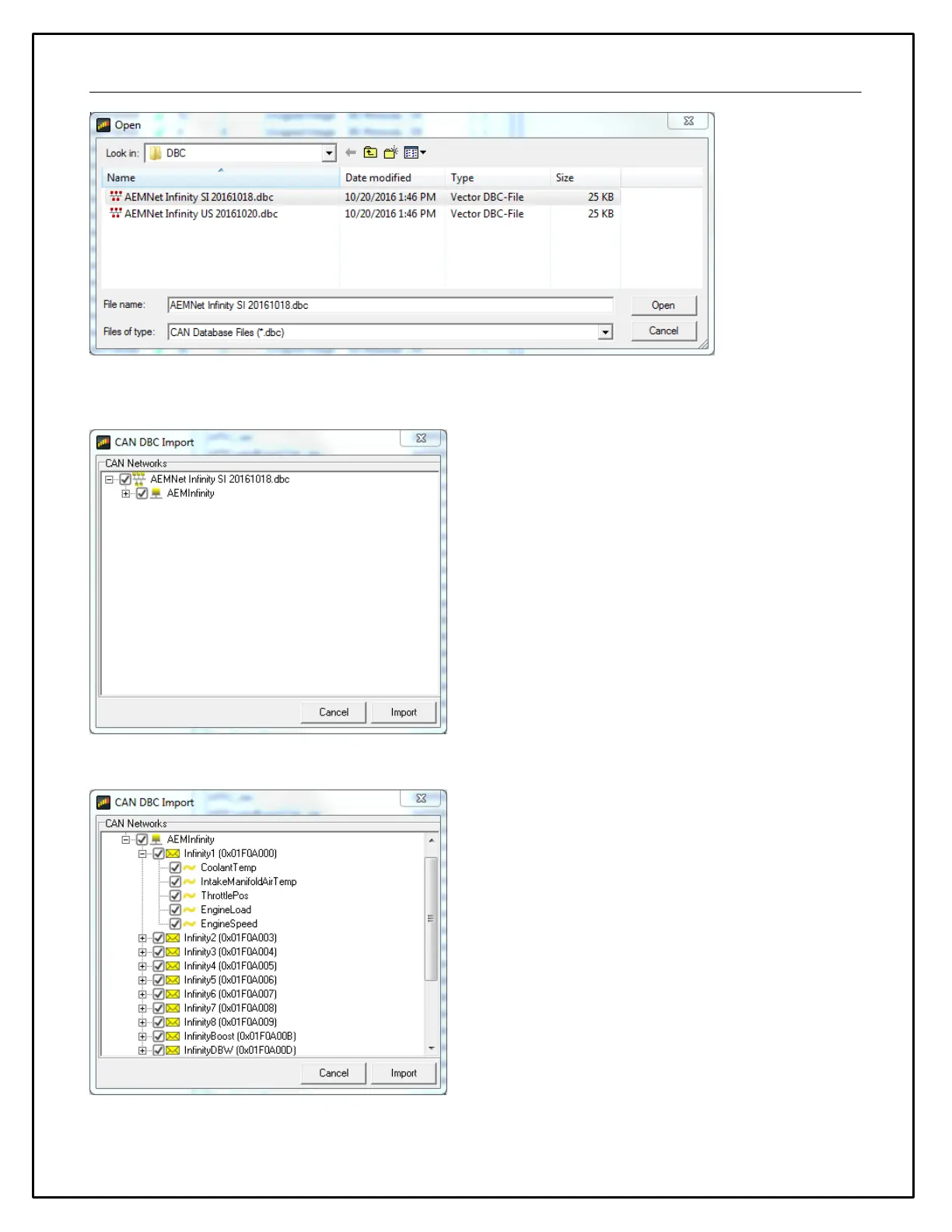

Available .dbc files will be located in the \Documents\AEM\DashDesign\DBC folder. Selecting a file will open the

import dialog.

The levels can be expanded by clicking on the plus symbol.
