CAN Receive

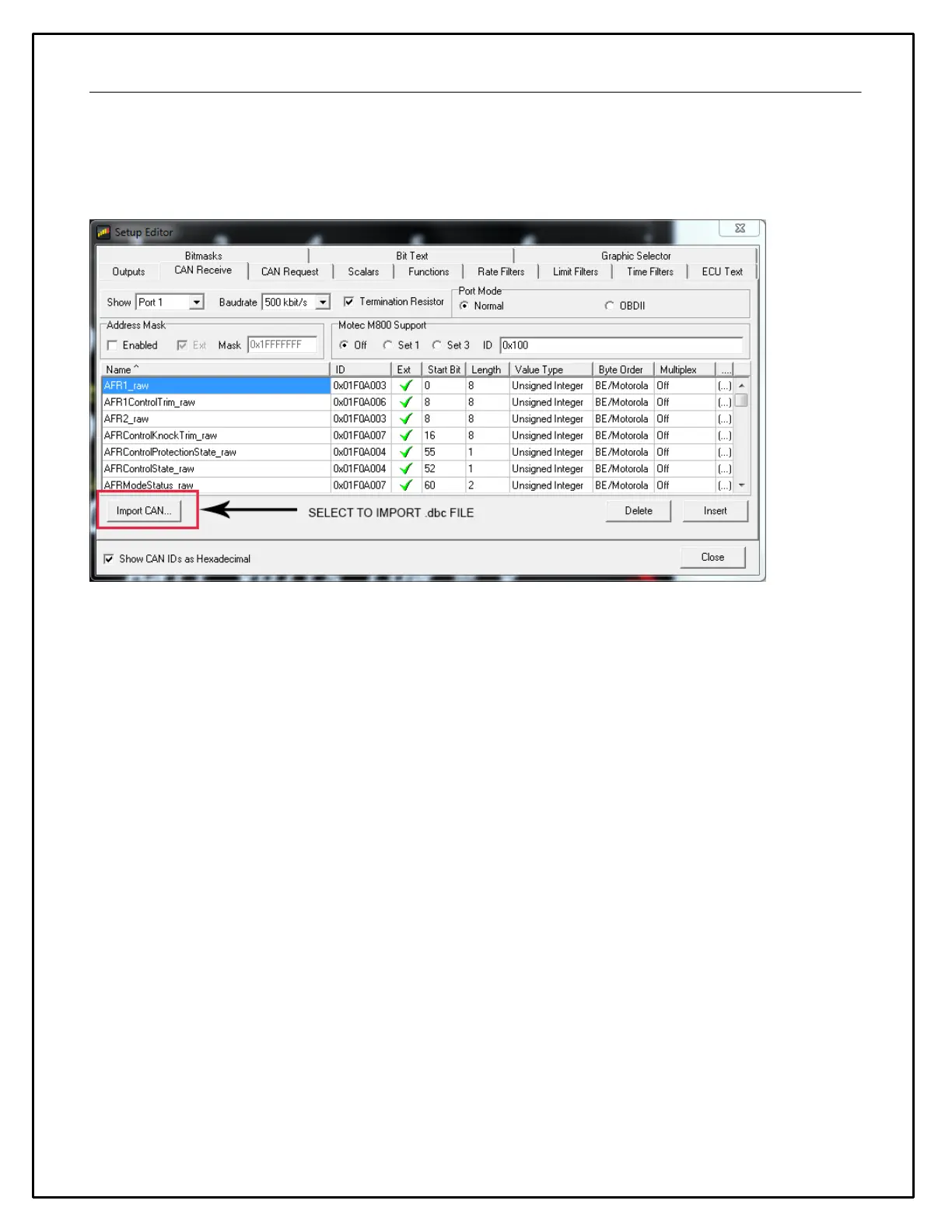

The Dash is a CAN display dash. The CAN receive tab of the Setup Editor must be defined for proper functionality.
The steps involved in defining a CAN message structure from scratch is outside the scope of this manual. However,
the system includes a robust CAN .dbc import feature that greatly simplifies the process.
The “Start Bit” refers to the location of the LSB. The message contents and the byte/bit numbering can be
viewed by clicking on the … button for each message.
