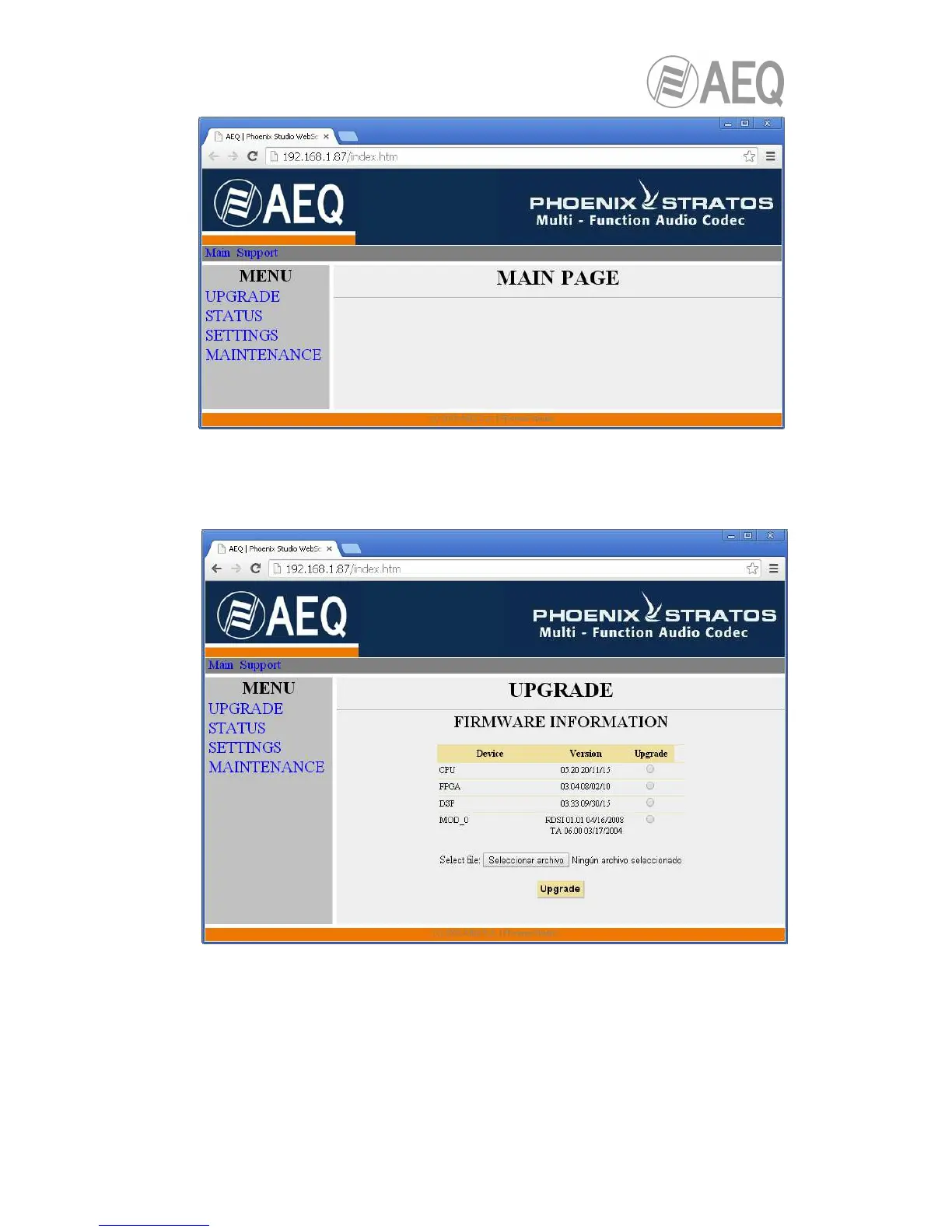

Main screen detail
6. To upgrade the codec, click on the UPGRADE option.
7. A user ID and password are requested (by default, both are aeq). After you have
correctly entered these two items, the firmware upgrading screen will be displayed.
Firmware upgrading screen detail
8. Check to see whether the versions displayed are the same as the firmware that is
currently in effect. If they do not match, upgrade the firmware as indicated below.
9. Select the module you want to upgrade in “Upgrade” column. NOTE: Each upgrading
file is specifically designed to upgrade a specific module within the unit: CPU, DSP,
FPGA or ISDN communication module (MOD_0).
10. In “Select file” enter the access route to the upgrading file containing the new firmware
version, using the “Seleccionar archivo” button.
11. Press the “Upgrade“ button in the lower part of the screen.
