6.5.1. Finalizing an ISDN communication.
• In order to hang call, just click on “CALL” button of the connected channel in one of
both codecs. A confirmation message will appear and the call will be disconnected after
acceptance.
6.5.2. Receiving and accepting an ISDN communication.
If the ISDN interface is correctly configured and automatic answer mode is OFF, when you
receive a call:
• The unit and the application will provide acoustic warning. This can be disabled (for the
unit) at “Configuration“ “Miscellaneous“ “Buzzer and test“.
• The “CALL“ button red LED of the called channel at the individual codec control window
in the remote control software corresponding to the unit that is receiving a call will blink
at the same time to warn the user.

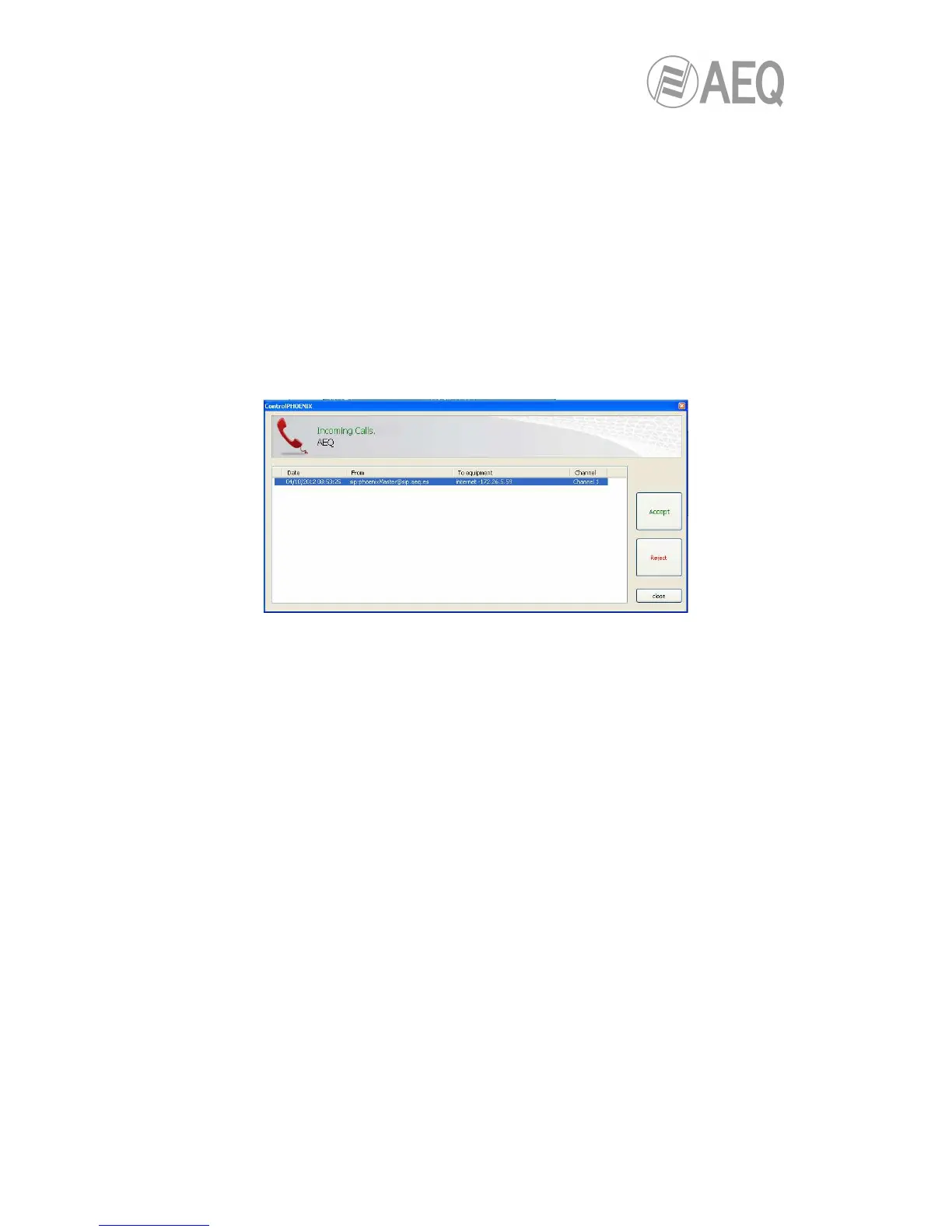

• In addition, an incoming call window will appear showing the number of the caller unit:
• The call will be accepted by clicking on the individual codec control window “CALL“
button of the called channel or, alternatively, on the “Accept” button in the incoming
calls window.
• The screen will show the status of the call:
o CONNECTING (depending on the network status this status can last for an
extremely short time).
o SYNCHRONIZING (depending on the network status this status can last for an
extremely short time).
o CONNECTED.
• Verify that the “SYNC“ LED beneath the “CALL“ button corresponding to that channel is
lighted in green to indicate that the communication has been successfully established.
• Press the “ON AIR“ button to allow the transmission of full-duplex audio for that
channel.
• Send audio from one equipment to another verifying that the “Tx” and “Rx” audio
presence indicators change to green.
• If necessary, adjust the output levels in the “att” box at OUTPUTS block in
“Configuration” ”General” screen. You can also make an additional adjustment from
the windows you access by pressing “In gain” button in “ENCODER” green window and
“Out gain” button in “DECODER” green window.
