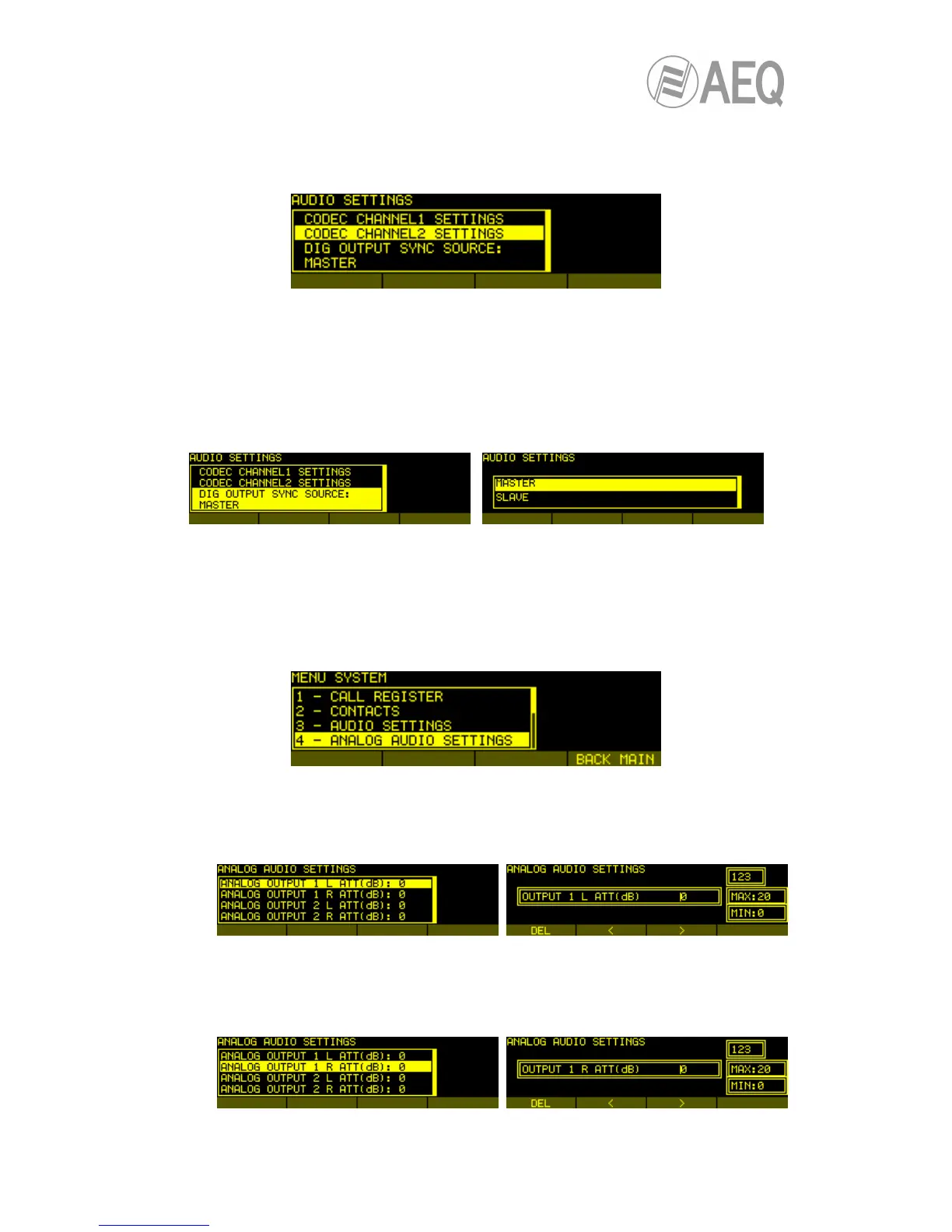

3.1.3.2. CODEC CHANNEL 2 SETTINGS menu.
This menu allows you to configure the audio signal associated with communications channel
number 2, according to a list of options identical to the one defined in the previous section.
CODEC CHANNEL 2 SETTINGS menu detail
3.1.3.3. DIG OUT SYNC SOURCE menu.
This menu enables you to define the reference synchronizing signal for the digital audio outputs
available in the DB15 AES IN/OUT & SYNC connector in the rear part of the unit. It can be
configured as MASTER (uses the internal synchronism of the equipment) or SLAVE (uses
external synchronism input SYNC_IN). This adjustment makes no difference when analog
outputs are used.
DIG OUT SYNC SOURCE menu detail
3.1.4. ANALOG AUDIO SETTINGS menu.
You can access this menu from the SYSTEM MENU, in the fourth option, by pressing the rotary
encoder. By contrast with the AUDIO SETTINGS menu, where you configure most of the
Phoenix STRATOS AES/EBU digital audio part, this ANALOG AUDIO SETTINGS menu
enables you to adjust all the parameters associated with the analog format audio output part.
ANALOG AUDIO SETTINGS menu detail
- ANALOG OUTPUT 1 L ATT (dB): allows you to modify the output attenuation of
analog signal 1 L. Values in dB. 1 dB steps. Maximum value: 20dB, minimum: 0dB. This
adjustment doesn’t affect digital outputs.
ANALOG OUTPUT 1 L ATT menu options
- ANALOG OUTPUT 1 R ATT (dB): allows you to modify the output attenuation of
analog signal 1R. Values in dB. 1 dB steps. Maximum value: 20dB, minimum: 0dB. This
adjustment doesn’t affect digital outputs.
ANALOG OUTPUT 1 R ATT menu options
