AEQ PHOENIX STRATOS
13

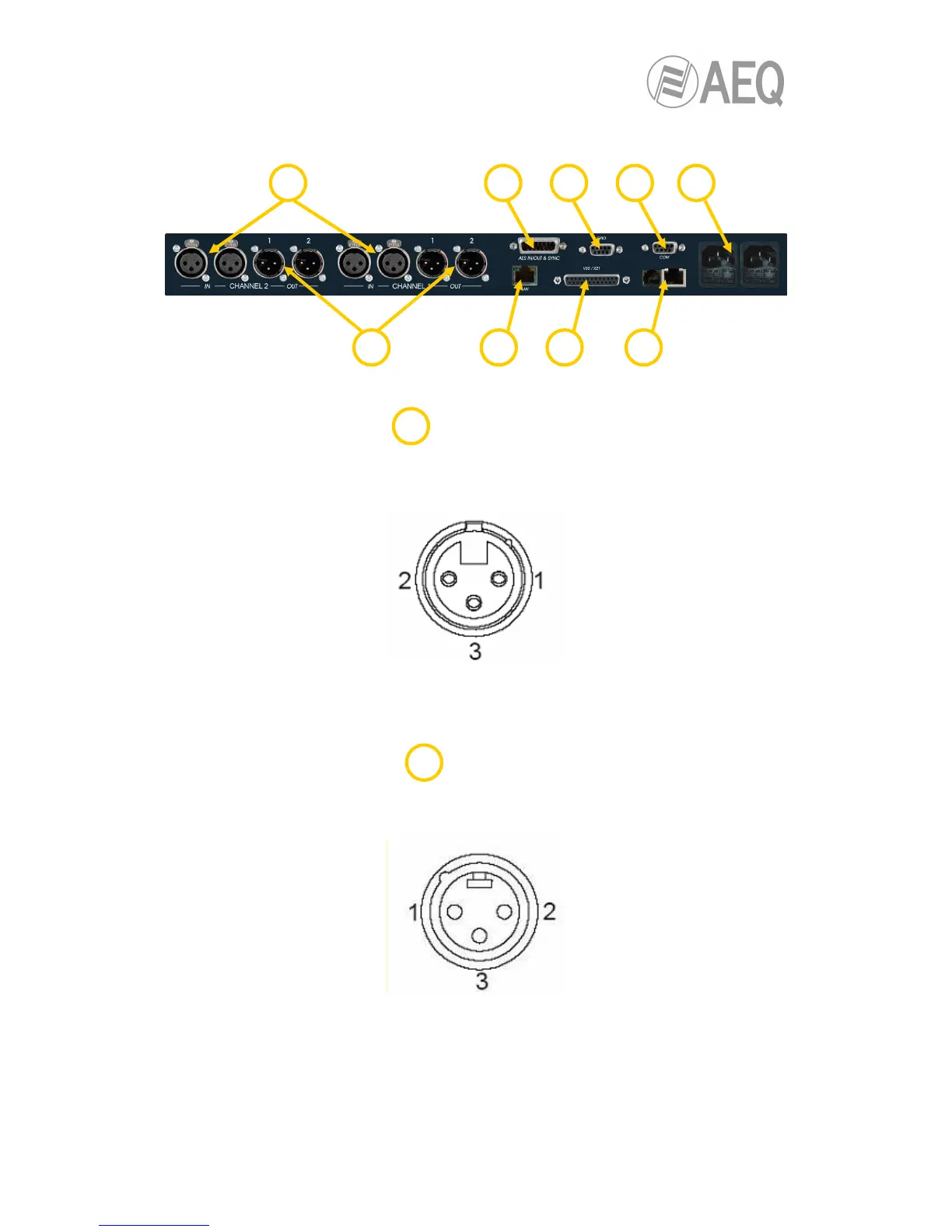

2.2. Description of the rear panel and connections.
2.2.1. Analog line stereo inputs.
XLR - 3p female connector. Balanced connection. Two pair of connectors L (1) and R (2) or
independent mono channels (the left connector corresponds to L input and the right one
corresponds to R input).
XLR 3p Female-panel Pinout
Pin 1  Ground
Pin 2  + Input
Pin 3  - Input
2.2.2. Analog line stereo outputs.
XLR - 3p male connector. Balanced connection. Two pair of connectors L (1) and R (2) or
independent mono channels (the left connector corresponds to L output and the right one
corresponds to R output).
XLR 3p Male-panel Pinout
Pin 1  Ground
Pin 2  + Output
Pin 3  - Output
B
A
A
C
D
I
B
G
F
E
H
