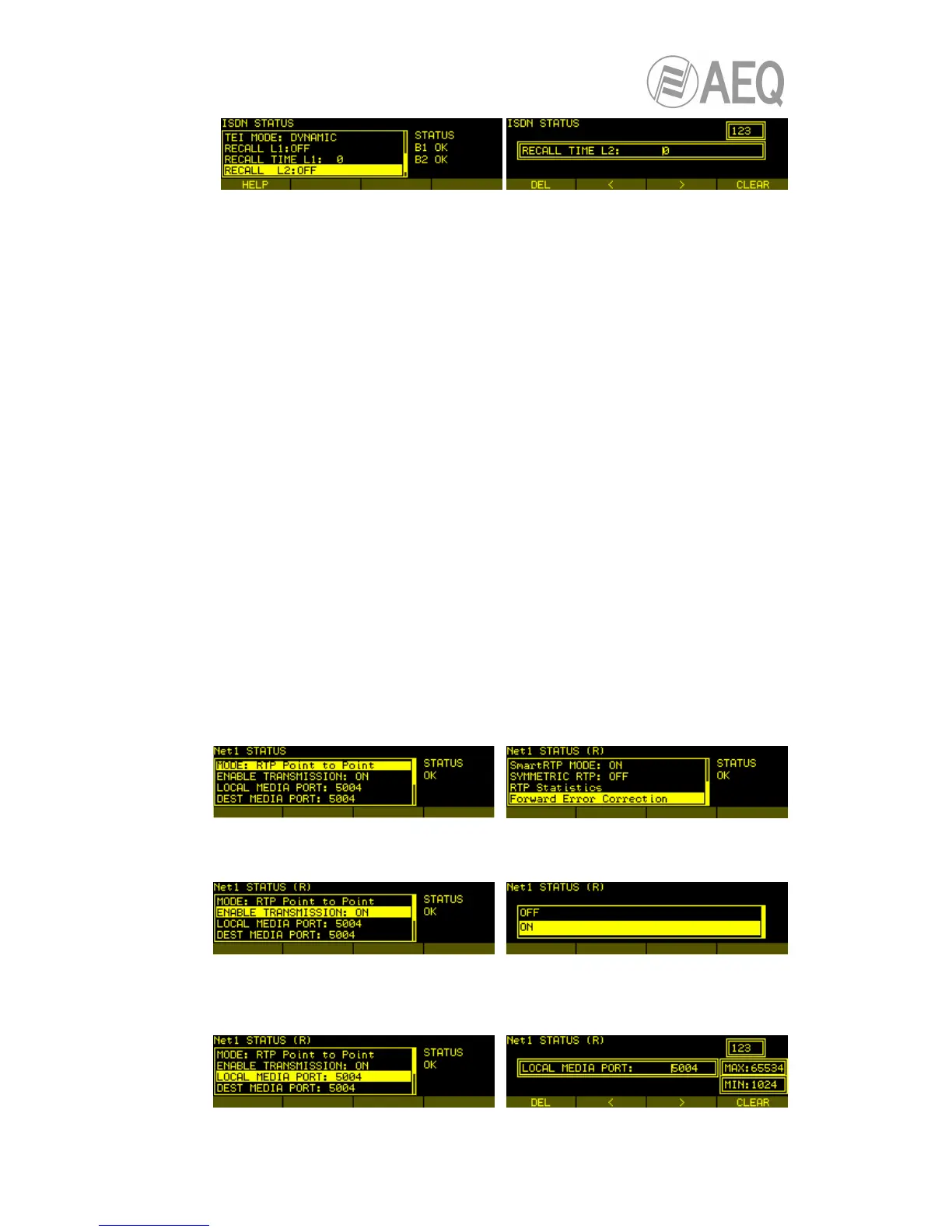

RECALL L1 y L2 y RECALL TIME L1 y L2 selection & options menu detail
3.1.5.2. Net 1 interface.
IP communications interface number 1 over Ethernet port in the rear panel of the unit. There are
three working modes available:
- PROXY SIP: when the Phoenix STRATOS is used working together with an external
SIP server that will provide connection with remote unit through any network, even
Internet, without knowing its IP address. Both units (local and remote) must be
registered in SIP server.
- DIRECT SIP: when you wish to use the SIP communications protocol during the call
establishment phase, but are not using any external SIP server. You will need to know
the IP address of the unit you’re calling to.
- RTP Point to Point: when the connection over IP will be an RTP type link with calling
of the IP address to IP address type. Obviously there is no advanced signaling protocol
in this scenario and you will need to established, set parameters and disconnect
communication from both ends; in addition, audio encoding must be the same (and
explicitly specified) in both ends of the communication, unless “SmartRTP” option is
activated (see next section).
Depending on the selected working mode, the rest of the menu options will vary.
3.1.5.2.1. RTP Point to Point.
Submenu for configuring the IP connection when communication is without SIP over audio
streaming in RTP.
In the Net X STATUS menu, when “RTP Point to Point” is selected in MODE field, the following
options are shown (NOTE: The fields that appear in italics cannot be modified, and they are
shown as additional information with no editing option available here):
Net1 menu for RTP Point to Point detail
- ENABLE TRANSMISSION: In position ON, the transmission of audio is enabled.
ENABLE TRANSMISSION menu detail
- LOCAL MEDIA PORT: value of the IP port selected for transmitting audio at origin over
IP. Minimum value 1,024. Maximum value 65,534. For instance 1026.
LOCAL MEDIA PORT menu detail
