3.3. VUMETERS menu.
From this option of MAIN STATUS menu you can configure the working mode of the two groups
of VU meters available in the front panel of the unit.
There are three working modes available in the Phoenix STRATOS:
• MONO (L->CH1 R->Ch2), in which the VU meters would look as follows (from left to
right):
o VU1: Output CH1 (received signal)
o VU2: Input CH1 (signal to be transmitted)
o VU3: Output CH2 (received signal)
o VU4: Input CH2 (signal to be transmitted)
• STEREO CH1, in which the VU meters would look as follows (from left to right):
o VU1: Input L CH1 (signal to be transmitted)
o VU2: Input R CH1 (signal to be transmitted)
o VU3: Output L CH1 (received signal)
o VU4: Output R CH1 (received signal)
• STEREO CH2, in which the VU meters would look as follows (from left to right):
o VU1: Input L CH2 (signal to be transmitted)
o VU2: Input R CH2 (signal to be transmitted)
o VU3: Output L CH2 (received signal)
o VU4: Output R CH2 (received signal)
NOTE: MONO option is the only one where signals correspond to vumeters serigraphed
lettering.

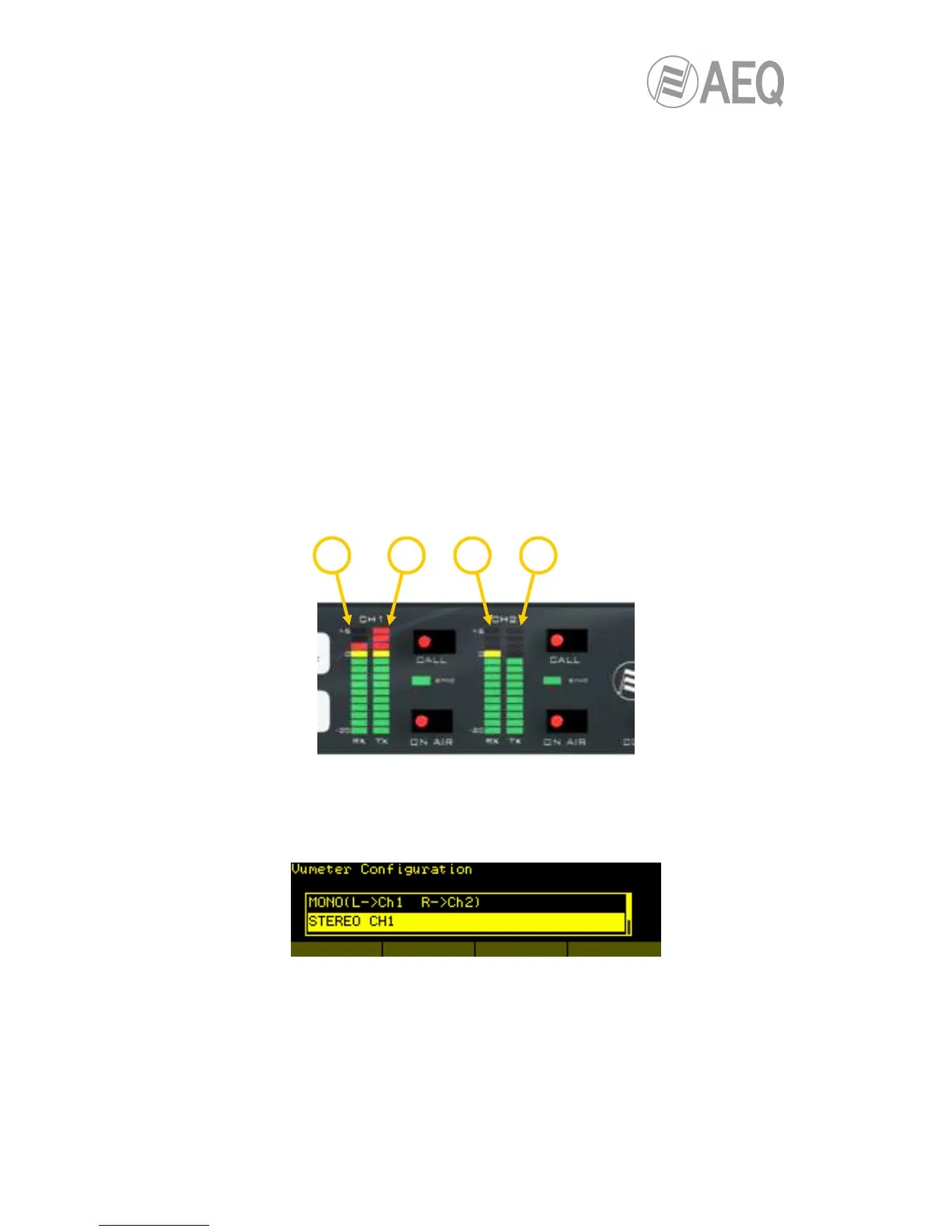

Identification of the VU meters in the Phoenix STRATOS front panel
The last two working modes are obviously optimized for stereo connections, while the first
allows you to monitor two full-duplex mono signals simultaneously. You can change
configurations by pressing on the rotary encoder.
VUMETERS menu options
The VIEW option available in the second contextual button offers you a detailed view of the
configuration you have selected at any given moment.
3.4. CALL menu.
Menu for configuring the connection to be launched. You can access this menu by pressing
either of the two CALL buttons located on the PHOENIX STRATOS front panel.
